S5! S-5-E

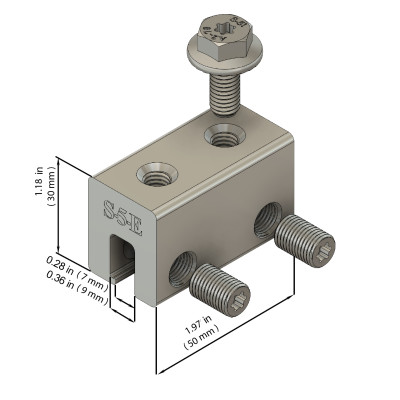

S-5! S-5-E Clamp | Clamp for European-Style Standing Seam Roof

The S-5-E clamp is designed specially for double-folded standing seam roof profiles having the appropriate dimensioning. Installation is as simple as placing the clamp on the seam and tightening the patented round-point setscrews to the specified tension. Then, affix ancillary items using the bolt provided.

Key Features

Rigorous Load Testing: Parallel-to-seam testing (along the seam or drag load) is performed on all standard clamps.

Cost Efficiency: Comparable strength to other S-5 mounts such as the S-5-U or S-5-V but at a lower cost.

Wide Range of Applications: The clamps are well rated for snow retention as well as other heavy-duty applications on your roof.

Safe to Install: Clamp is secured with patented round-point setscrews without piercing the metal roof panel, thereby preserving the roof manufacturer's warranty
