S5! S-5-U

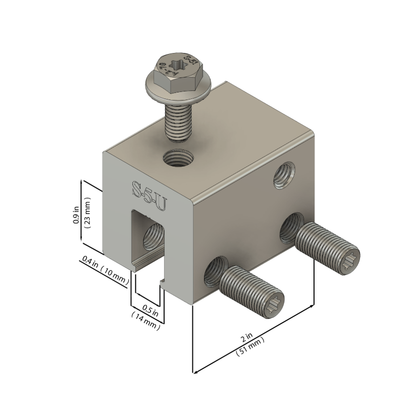

S-5-U Clamp – The Universal Solution for Standing Seam Roofs

The S-5-U Clamp is one of the most versatile and widely used roof clamps in the industry. The "U" stands for Universal —and for good reason. Its robust design fits a broad range of standing seam metal roof profiles across North and South America, making it a go-to choice for contractors and installers alike.

Whether you're working with vertical or horizontal seams, the S-5-U delivers reliable performance for even the most demanding applications, including snow retention systems.

Key Features

Universal Compatibility: Fits most standing seam profiles, including structural and architectural varieties found throughout North and South America.

Use as-is for vertically-oriented seams

Rotate 90° for horizontal seam profiles with a horizontal projection of ≥ 0.65” (16.5 mm)

Heavy-Duty Performance: Engineered for demanding applications such as snow retention and other high-load scenarios.

Secure Fastening: Includes two T-30 Torx round-point setscrews (Torx bit tip provided) for a strong, damage-free grip.

Ready to Install: Comes with one M8 bolt included for quick and easy assembly.
