Tigo Energy

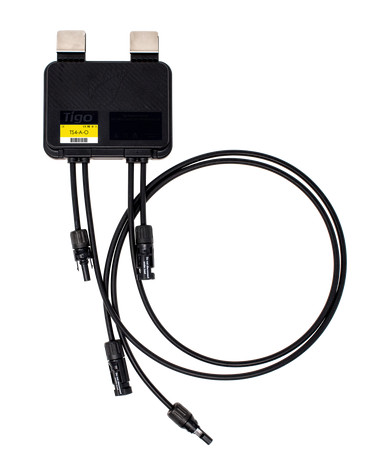

Tigo TS4-A-O Optimization, Monitoring & Rapid Shutdown – 22A
DK-1594035
Part of Tigo TS4-A-O Optimization, Monitoring & Rapid Shutdown – 22A
- Warranty
- 25-year
$55.84 each
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Tigo TS4-A-O | Optimization, Monitoring & Rapid Shutdown | 22A (Isc), 725W, 1500V UL/1000V IEC, 0.1/1.2m Cable, MC4
Tigo TAP is required for rapid shutdown and Tigo CCA is required for monitoring with TS4-A-O.
Optimization is a Flex MLPE function available as an integrated modular junction box base (TS4-O) or as an add-on unit (TS4-A-O). Design using unequal string lengths, mixed orientations, or areas of mismatch. Install in shaded areas with a reduced setback ratio. In addition to optimization, the TS4-A-O enables module-level monitoring, and rapid shutdown in compliance with NEC 2014, 2017, and 2020.
Key Features
1 module per TS4
From unboxing to install, we’re with you every step. Reach out to our lifetime, USA-based support team anytime you need guidance.
- High Module Compatibility — Suitable for solar modules up to 700W for greater system flexibility.
- Advanced Optimization — Powered by Predictive IV Technology (PIV) to deliver higher performance.
- Selective Deployment — The only optimizer that can be used where needed, reducing unnecessary costs.
- Built-In Safety & Monitoring — Provides enhanced system safety and real-time performance tracking.
- Rapid Shutdown Ready — Meets US NEC rapid shutdown requirements for code compliance.
- Instant Optimization — Works right out of the box with no extra setup required.
- Long-Term Reliability — Shade and age tolerance maximize lifetime energy yield.
- Seamless Connectivity — Works wirelessly with TAP & CCA for easy integration.
- Configuration
Documents & manuals
Specifications
| Product type | Wiring & system component |
|---|---|
| Warranty | 25-year |
| Maximum Wattage | 725W |
|---|---|
| Maximum Current | 22A |
