Top Rack Technology
Top Rack Rail – Black – 7.54ft – TRT 02
A188-2300
Roof mount
Part of Top Rack Rail – Black – 7.54ft – TRT 02
- Type
- Roof mount
- Warranty
- 25-year
$16.99 each
Out of stock — order now to reserve, or call for lead time
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Faster, Cleaner, More Reliable Rooftop Rail

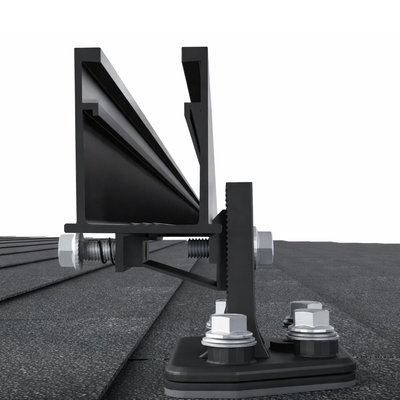

The Top Rack Rail delivers a faster, cleaner way to mount solar on composition shingle roofs by eliminating traditional flashing. Its cast-aluminum base bonds directly to the roof with butyl adhesive and fasteners, creating a strong, watertight attachment point that protects the roof while speeding up installation. With clip-on rails and pre-assembled hardware, installers get fewer steps, fewer penetrations, and long-term reliability they can trust.
Use Cases

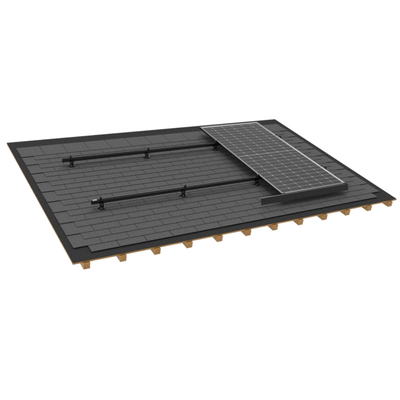

Designed for solar installations on composition shingle roofs where fast, secure, and watertight mounting is needed—ideal for installers looking to simplify installs and eliminate flashing.
- Flash-Free Roof Mounting: The cast aluminum base adheres directly to asphalt shingles using butyl adhesive and screws, eliminating traditional flashing and reducing leak risk.

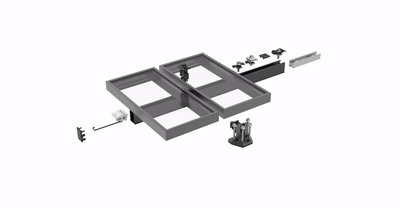

- Faster Installation: Pre-assembled bases and clip-on rail fasteners significantly reduce labor time compared to L-foot and flashing systems.
- Built-In Wire Management: The rail design includes integrated wire management, keeping cable runs clean, protected, and code-compliant.
- High-Strength Aluminum Construction: Made from corrosion-resistant 6005-T5 aluminum with black anodizing for long-term outdoor durability.
- Certified for Safety & Fire Resistance: UL 2703 listed, PE certified, and Class A/B fire rated to maintain roof fire resistance and structural compliance.
- Wide Module Compatibility: Supports solar panel frames from 30–40mm, making it compatible with most standard modules.
Specifications
| Product type | Racking & mounting — Roof mount |
|---|---|
| Warranty | 25-year |
| Material | Aluminum 6005-T5 |
|---|---|
| Finish | Black anodized |
| Roof Type | Pitched, composition shingle |
| Module Frame Compatibility | 30–40mm |
| Certifications | UL 2703 Listed, PE Certified, Class A/B Fire Rating |
