Top Rack Technology

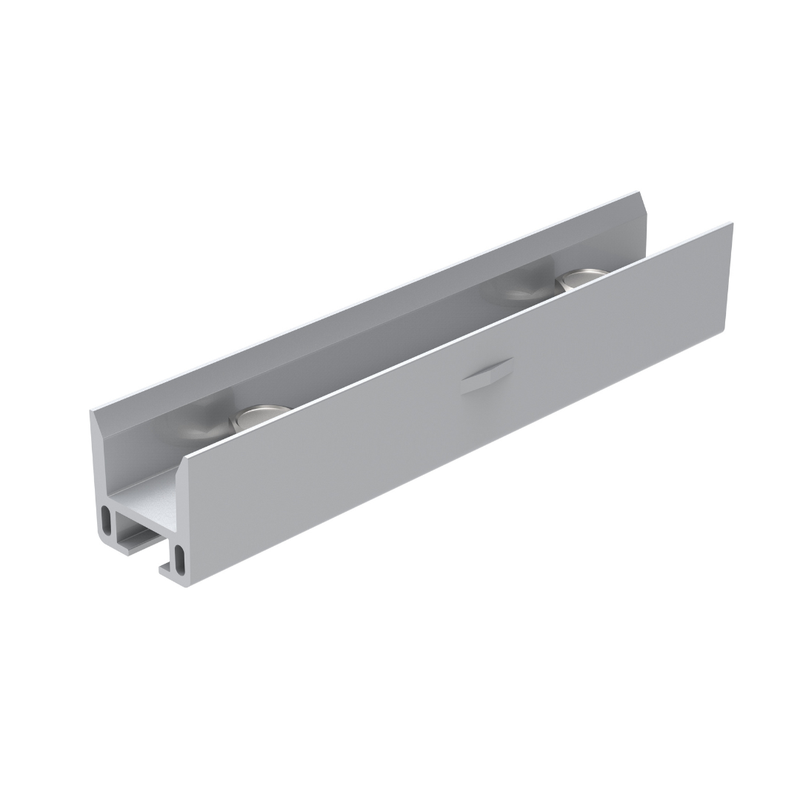

Top Rack Rail Connector – TRT 02
3010404
Roof mount
Part of Top Rack Rail Connector – TRT 02
- Type
- Roof mount
- Warranty
- 25-year
$2.49 each
Out of stock — order now to reserve, or call for lead time
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Build Longer, Stronger Rail Runs
The Top Rack Rail Connector is an aluminum splice designed to securely join Top Rack rails when longer rail runs are needed. It creates a rigid, aligned connection between rail sections so installers can span rooftops cleanly without sacrificing strength, or code compliance.
Use Cases
Used when multiple Top Rack Rails need to be joined to create longer rail runs for larger residential or commercial solar arrays on shingle or tile roofs.
- Creates Continuous Rail Runs: Connects two TRT rails into one strong, aligned mounting rail for larger arrays and longer roof spans.
- High-Strength Aluminum Construction: Made from corrosion-resistant aluminum to maintain long-term durability in outdoor rooftop environments.
- Code-Compliant Grounding: UL 2703 listed to maintain electrical bonding and grounding across connected rail sections.
- Fire-Rated Roof Safety: Class A/B fire rated to preserve the roof’s existing fire resistance.
- Structurally Certified: PE reviewed and approved to meet load, wind, and safety requirements.
- Wide Module Compatibility: Supports 30–40mm module frames for use across most standard solar panels.
Specifications
| Product type | Racking & mounting — Roof mount |
|---|---|
| Warranty | 25-year |
| Material | Aluminum |
|---|---|
| Certifications | UL 2703 Listed, PE Certified, Class A/B Fire Rating |
| Applications | Composition shingle and tile roofs |
