Top Rack Technology
Top Rack Skirt Clip
3010363
Roof mount
Part of Top Rack Skirt Clip
- Type
- Roof mount
- Warranty
- 25-year
$1.69 each
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Secure, Adjustable Skirt Attachment for First-Row Solar Modules

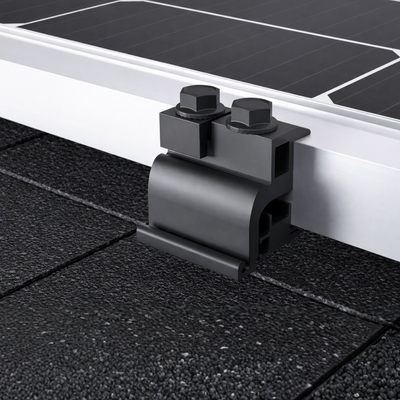

The Top Rack Skirt Clip is a secure, adjustable fastening component designed to attach perimeter skirts to the first row of solar modules in a rack-mounted PV system. Engineered for durability and ease of installation, this clip mounts directly to the solar panel frame and provides a reliable connection point for skirt panels, delivering a clean, finished system appearance. The clip is compatible with solar module frame thicknesses ranging from 30–40 mm, making it suitable for a wide range of standard panels. During installation, skirt clips are positioned near each end of the panel—approximately 10 inches from the panel edges—with additional clips spaced no more than the panel width apart. Spacing may be reduced as needed for added support.
Tech Specs
Application: Comp Shingle Roof , Tile Roof
- Simplifies skirt installation on the first row of solar panels
- Accommodates common module frame sizes without additional hardware
- Allows flexible clip placement for optimal support and alignment
- Provides a secure, reliable skirt connection that resists loosening
- Creates a clean, continuous skirt line for a professional finished look
Specifications
| Product type | Racking & mounting — Roof mount |
|---|---|
| Warranty | 25-year |
| Material | Aluminum 6005-T5 |
|---|---|
| Panel Compatibility | 30mm - 40mm |
