Victron Autotransformer 120/240V-100A
ITR000100101
Part of Victron Autotransformer 120/240V-100A
- Warranty
- 5-year
$509.15 eachReg. $599.00
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product

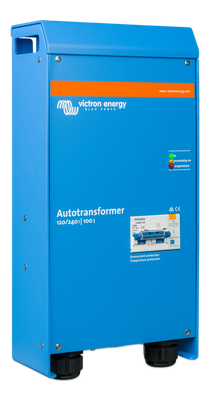

Victron Autotransformer 120/240V-100A
Victron’s Autotransformer can be used for step-up, step-down, and split-phase output balancing purposes. When operating in inverter mode, the neutral output of the inverter/charger must be connected to the ground to guarantee the proper functioning of a GFCI. In the case of a split-phase supply, the neutral must be grounded. For this purpose, a grounding relay is built into the autotransformer’s enclosure.
Key Features
Whether it’s your first project or your fifth, our USA-based team is here for you. Lifetime support means you’re never on your own.
- Step-up, Step-down, or Balance your System
- Ground Relay Included
- Temperature Protection
Documents & manuals
Specifications
| Product type | Wiring & system component |
|---|---|
| AC output voltage | 120/240V split phase |
| Warranty | 5-year |
| UPC | 8719076022428 |
| Weight | 13.5 kg / 29.7 lbs. |
|---|---|
| Dimensions | 425 x 214 x 110 mm |
| Input Voltage | 120/240V |
| Input Breaker Size | 100A / 2-Pole |
| Transformer Type | Toroidal |
| Protection Category | IP21 |
