Victron Energy
Victron Battery Balancer
BBA000100100
Part of Victron Battery Balancer
$48.45 eachReg. $63.00
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product

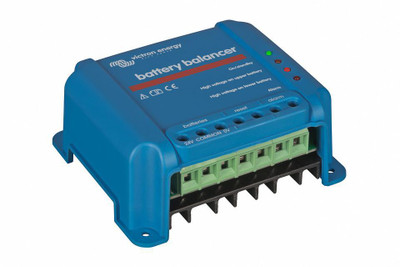

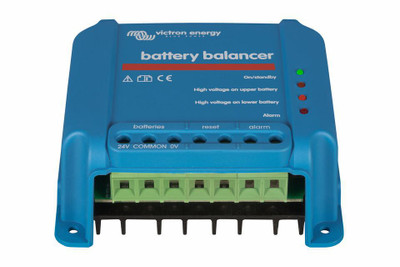

Victron Battery Balancer | Maintain Balanced Battery Charging in 24V & 48V Systems
The Victron Battery Balancer is designed to equalize the state of charge between series-connected 12V batteries in 24V and 48V battery banks. By automatically balancing voltage differences between batteries, it helps improve overall battery performance, charging efficiency, and long-term battery life in solar, backup power, and off-grid energy systems.
Use Cases
Ideal for maintaining balanced charging in solar battery banks, off-grid systems, RVs, marine applications, backup power systems, and other multi-battery energy storage installations.
- Automatic Battery Balancing — Equalizes the charge between series-connected batteries for improved system performance.
- Supports 24V & 48V Systems — Designed for 24V battery banks and can be used in parallel for 48V systems.
- Improves Battery Longevity — Helps reduce uneven charging that can shorten battery life.
- Smart Voltage Monitoring — Automatically activates when voltage imbalance is detected.
- Compact & Efficient Design — Low standby power consumption with compact installation footprint.
- Built-In Protection Features — Includes over-temperature protection and alarm relay functionality.
Documents & manuals
Specifications
| Product type | Wiring & system component |
|---|---|
| UPC | 8719076020950 |
| Weight | 0.4 kg / 0.9 lbs. |
|---|---|
| Dimensions | 100 x 113 x 47 mm |
| Protection Catagory | IP22 |
| Alarm Relay | 60V / 1A normally open |
| Over Temperature Protection | Yes |
| Connection Terminals | Screw terminals 6 mm² / AWG10 |
| Protection Category | IP22 |
| Dimensions (H x W x D) | 100 x 113 x 47 mm |
