Victron Energy
Victron Battery Monitor BMV-700
BAM010700000
Part of Victron Battery Monitor BMV-700
- Warranty
- 5-year
$110.50 eachReg. $137.00
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product

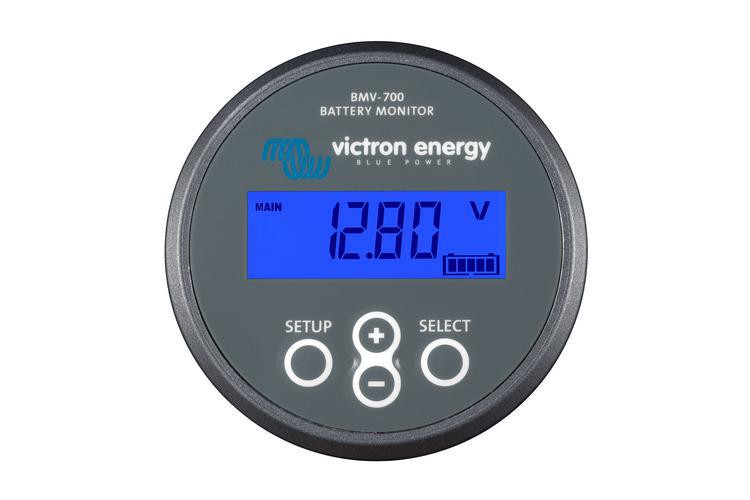

Victron Battery Monitor | BMV-700
The BMV-700 is a high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Ampere hours consumed are calculated by integrating the current flowing in or out of the battery.
VictronConnect
VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.
- Battery voltage, current, power, ampere-hours consumed and state of charge
- Remaining time at the current rate of discharge
- Programmable visual and audible alarm
- Programmable relay, to turn off non critical loads or to run a generator when needed
- 500 Amp quick connect shunt and connection kit
- Shunt selection capability up to 10.000 Amps
- VE.Direct communication port
- Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Specifications
| Product type | Wiring & system component |
|---|---|
| Warranty | 5-year |
| UPC | 8719076020066 |
| Dimensions | 63 x 52 x 31 mm |
|---|---|
| Protection Category | IP55 |
| Operating Temperature | -20°C - 50°C |
| Wide input voltage range | 6,5 – 95V |
| High current measurement resolution | 10 mA (0,01A) |
| Low current consumption | 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V |
