Victron Energy

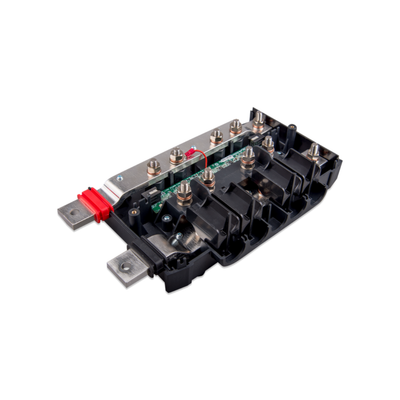

Victron Lynx Distributor (M10)
DK-1593152
Part of Victron Lynx Distributor (M10)
$232.90 each
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Smart DC Power Distribution with Built-In Fuse Monitoring
A modular DC busbar with spaces for four DC fuses. It monitors the status of each fuse and displays its condition with an LED on the front. The Lynx Distributor is part of the modular Lynx distribution system.
Use Case
Useful for customers installing PV systems without built-in breakers and are in need of high over current protection with easy monitoring.
- High-current system support up to 1000A — Rated for up to 1000A at 12V, 24V, or 48V systems, making it suitable for high-power inverter, battery, and charging applications.
- Integrated LED status indicators — A dedicated power LED and four fuse status LEDs provide immediate visual feedback on system power and fuse health directly on the front of the unit.
- RJ10 communication and power interface — Uses an RJ10 cable to receive power and communicate fuse status data when connected to compatible Victron components, enabling intelligent system integration without complex wiring.
- Four fused DC circuits with real-time monitoring — The Lynx Distributor features four MEGA fuse positions, each individually monitored to instantly detect blown or missing fuses for improved system safety and reliability.
Documents & manuals
Specifications
| Product type | Wiring & system component |
|---|
| Voltage Range | 9 - 60VDC |
|---|---|
| Current Rating | 1000A Continuous |
| Protection Class | IP22 |
| Material | Tinned Copper |
| Operating Temperature | -40°F - 140°F |
