Victron Energy
Victron SmartSolar MPPT 75/10 – Solar Charge Controller
SCC075010060R
MPPT
Part of Victron SmartSolar MPPT 75/10 – Solar Charge Controller
- Type
- MPPT
$65.45 eachReg. $77.00
In stock
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product

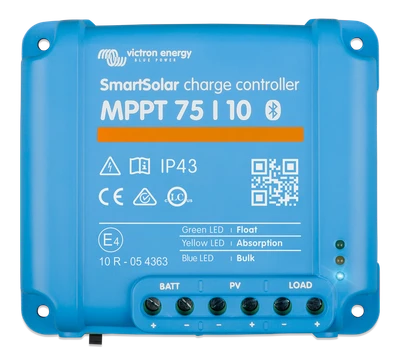

Victron SmartSolar MPPT 75/10 Solar Charge Controller | 12/24V | 10A
The Victron SmartSolar MPPT 75/10 Solar Charge Controller uses advanced Maximum Power Point Tracking (MPPT) technology to maximize energy harvested from solar panels and efficiently charge connected battery banks. By continuously monitoring PV voltage and current, the controller adjusts to changing sunlight conditions to capture the maximum available solar energy. With built-in Bluetooth, intelligent BatteryLife management, adaptive charging, and load control, the SmartSolar MPPT 75/10 is a compact and reliable solution for off-grid and mobile solar applications.
Use Cases
Perfect for small off-grid solar systems, RVs, boats, cabins, mobile power systems, and backup power applications. Ideal for users who need efficient solar charging, intelligent battery protection, load management, and convenient wireless monitoring.
- Ultra-Fast MPPT Technology: Continuously tracks solar panel voltage and current to maximize available energy harvest, especially during changing or partially cloudy conditions. Ultra-fast MPPT technology can improve energy harvest compared to PWM and slower…
- VE.Direct Communication: Connect to compatible GX devices, PCs, and other monitoring equipment for wired data communication.
- Automatic Load Disconnect: Prevents connected loads from excessively draining the battery and includes short-circuit protection.
- Internal Temperature Sensor: Compensates absorption and float charging voltages based on temperature.
- Day/Night Timing: Supports programmable timing and light dimming options for compatible applications.
Specifications
| Product type | Charge controller — MPPT |
|---|---|
| UPC | 8719076040798 |
| Controller Type | MPPT Solar Charge Controller |
|---|---|
| Battery Voltage | 12V/24V Auto Select |
| Rated Charge Current | 10A |
| Data Communication | Bluetooth and VE.Direct |
| Power Terminals | 6 mm² / AWG10 |
| Weight | 0.5 kg |
