MRCOOL

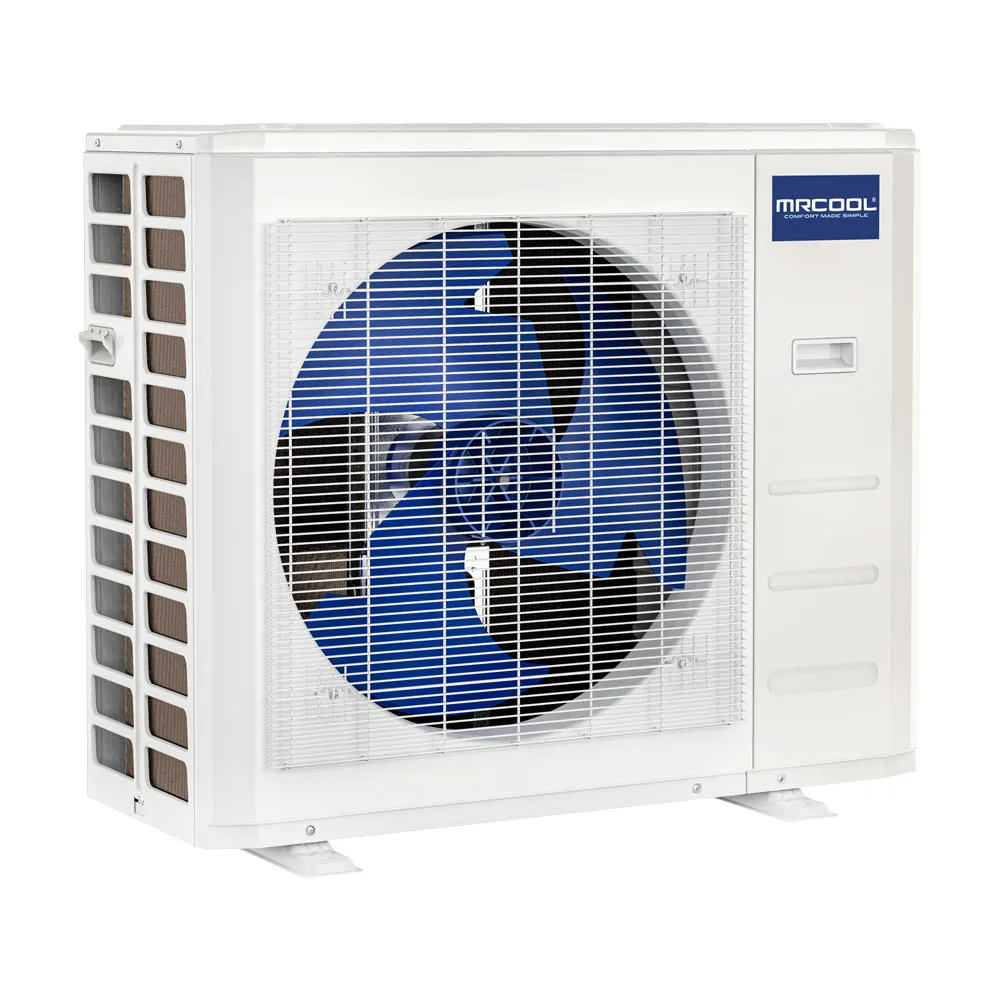

MRCOOL 36k BTU 18 SEER Condenser
CENTRAL-36-HP-C-230-00
36,000 BTU · 208/230V · R-410A
Part of Central Ducted – Condensers
- Cooling capacity
- 36,000 BTU3 tons
- Power
- 208/230V40A breaker
- Refrigerant
- R-410A
$1,984.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired thermostat included (.78 in x 4.72 in x 4.72in)
- Multi position installation
- Optional heating kit avaible
- R-410A environmentally friendly refrigerant
- 10 year parts and labor warranty*
- Comaptible with the MRCOOL No-VAC Quick-Connect line set.
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | Central Ducted |
| Cooling capacity | 36,000 BTU |
| Heating capacity | 36,000 BTU |
| Nominal size | 3 tons |
| Zones | Single zone |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 24 A |
| Max. breaker (MOP) | 40 A |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 130.51 oz |
| Liquid line | 3/8" |
| Suction line | 3/4" |
| Dimensions (in) | 37.24 W × 16.14 D × 31.89 H |
|---|---|
| Weight | 151.68 lb |
| Shipping weight | 256 lb |
| Color | Gray |
| AHRI certified | Yes |
|---|---|
| Parts warranty | 10 years |
| UPC | 840255520058 |
