MRCOOL

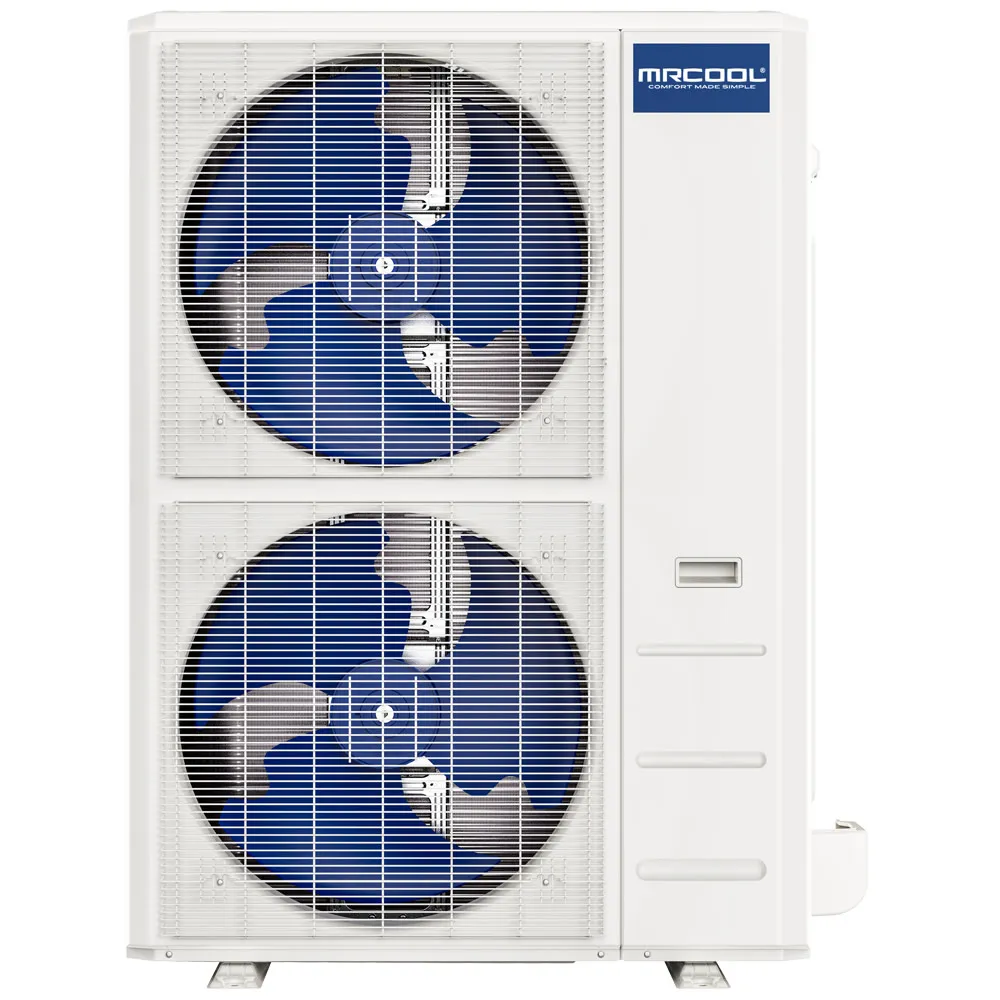

MRCOOL 36K BTU Hyper Heat Central Ducted Heat Pump Condenser
CENTRAL-36-HP-C-230A00
36,000 BTU · 16 SEER2 · 208/230V · R-410A
Part of Central Ducted – Condensers
- Cooling capacity
- 36,000 BTU3 tons
- Efficiency
- 16 SEER29.5 HSPF2
- Power
- 208/230V50A breaker
- Refrigerant
- R-410A
$2,360.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
The 36K BTU MRCOOL® Hyper Heat Central Ducted Heat Pump Condenser offers a dependable solution for coping with the harshest winters and summers. Utilizing a DC Inverter and cutting-edge variable speed technology, the unit delivers remarkable efficiency, leading to significant utility cost savings without compromising performance. Boasting an impressive SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9.5, its superior heating capacity ensures indoor comfort even when outdoor temperatures plummet to -22°F or soar to 122°F. Installation is effortless for professional HVAC technicians utilizing the compatible MRCOOL® No-Vac® Quick Connect® Line Set. This distinctive line set eliminates the need for vacuuming or flare welding and is kink-resistant, expediting the connection process and lowering installation costs. Furthermore, the unit employs the environmentally friendly R-410A refrigerant, ensuring no harm to the environment. Constructed with top-quality materials like painted galvanized steel, the unit is built to last and withstand damage from extreme weather, animals, or yard equipment. In the unlikely event of any issues, a 10-year warranty covering the compressor, parts, and labor supports the unit. As an added bonus, the labor warranty is automatically activated upon installation, removing the need for a time-consuming registration process.
- Enhanced Heating Capacity
- Includes features such as timer mode, auto cool mode, fan only mode, and more
- Wired Thermostat Included (.78 in x 4.72 in x 4.72in)
- Multi-Position Installation
- Variable Speed
- Optional Heat Kit
- Compact, Side Discharge Design
- R-410A environmentally friendly refrigerant
- Follow Me™ Function
- Easy-Access Removable Filter
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | Central Ducted |
| Cooling capacity | 36,000 BTU |
| Heating capacity | 40,000 BTU |
| Nominal size | 3 tons |
| SEER2 | 16 |
| EER2 | 10 |
| HSPF2 | 9.5 |
| Airflow | 4500 CFM |
| Sound level | 64 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 41 A |
| Max. breaker (MOP) | 50 A |
| Inverter compressor | Yes |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 165.79 oz |
| Max. line length | 213.25 ft |
| Liquid line | 3/8" |
| Suction line | 3/4" |
| Dimensions (in) | 37.48 W × 16.34 D × 52.48 H |
|---|---|
| Weight | 227.07 lb |
| Shipping weight | 256 lb |
| AHRI certified | Yes |
|---|---|
| Safety listing | UL |
| Parts warranty | 10 years |
| UPC | 840255553063 |
