MRCOOL

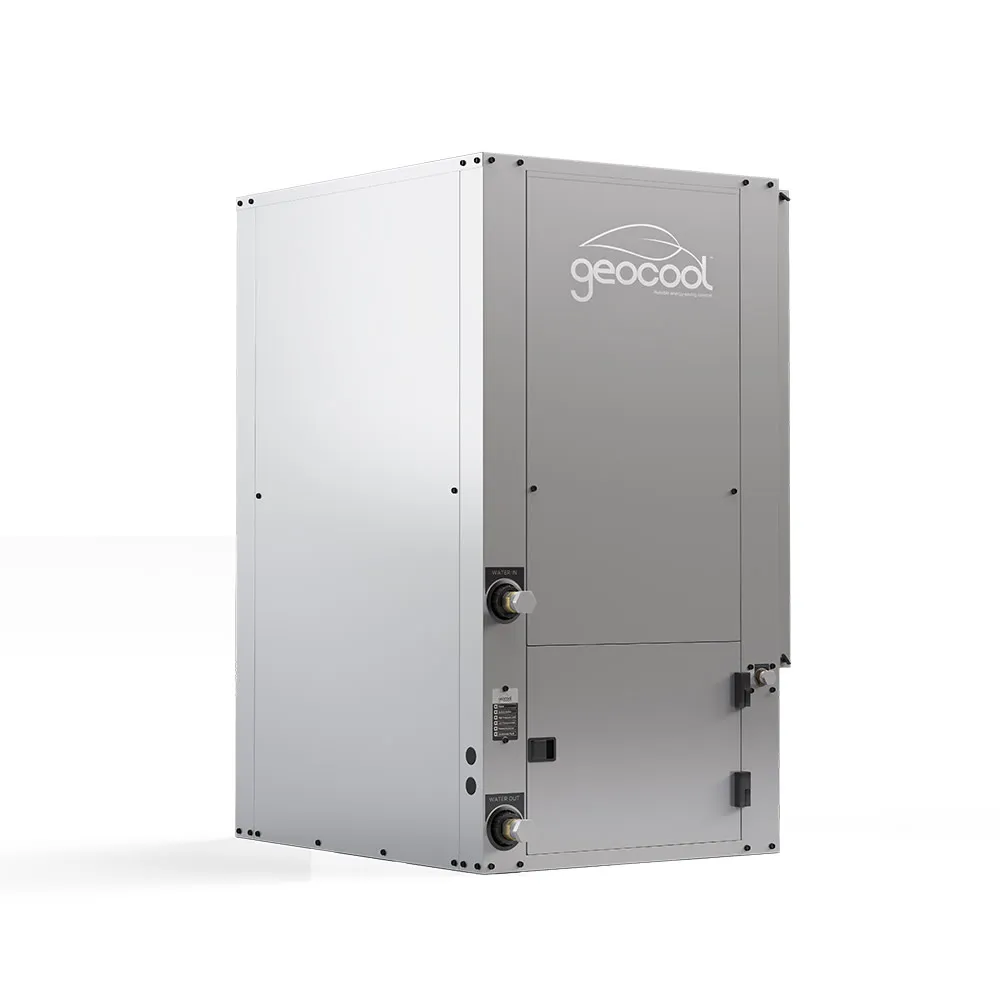

MRCOOL 24K BTU Vertical Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return
GCHPV024TGTANXR
24,000 BTU · 230V · R-410A
Part of GeoCool
- Cooling capacity
- 24,000 BTU2 tons
- Room size
- 1000
- Power
- 230V34A breaker
- Refrigerant
- R-410A
$5,547.00 each
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
- 10 year compressor warranty
- Ground Water (FULL) 27.40 / Ground Loop (FULL) 17.95
- Ground Water (PART) 36.50 / Ground Loop (PART) 25.93
- Ground Water (FULL) 5.40 / Ground Loop 4.20 (FULL)
- Ground Water (PART) 5.50 / Ground Loop 4.70 (PART)
- Ground Water Fluid Flow Rate | COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)
- Ground Loop Fluid Flow Rate | COOLING: (PART) 7 - 8 (FULL) / HEATING: (PART) 7 - 8 (FULL)
- COOLING (PART) 850 - 1000 (FULL) / HEATING (PART) 800 - 950 (FULL)
- Ground Water (PART) 23000 - 29000 (FULL) / Ground Loop (PART) 21900 - 27000 (FULL)
- Ground Water (PART) 19000 - 25700 (FULL) / Ground Loop (PART) 16500 - 18500 (FULL)
Documents & manuals
Specifications
| Type | Geothermal heat pump — heat pump (heats & cools) |
|---|---|
| Series | GeoCool |
| Cooling capacity | 24,000 BTU |
| Nominal size | 2 tons |
| Coverage | 1000 |
| Voltage | 230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 21.9 A |
| Max. breaker (MOP) | 34 A |
| Refrigerant | R-410A |
|---|
| Indoor unit / mounting | Right Return Upflow |
|---|---|
| Dimensions (in) | 25.75 W × 32 D × 44 H |
| Weight | 290 lb |
| Color | Gray |
| ENERGY STAR | Yes |
|---|---|
| AHRI certified | Yes |
| Safety listing | ETL |
| Parts warranty | 5 years |
| UPC | 818545022575 |
