MRCOOL

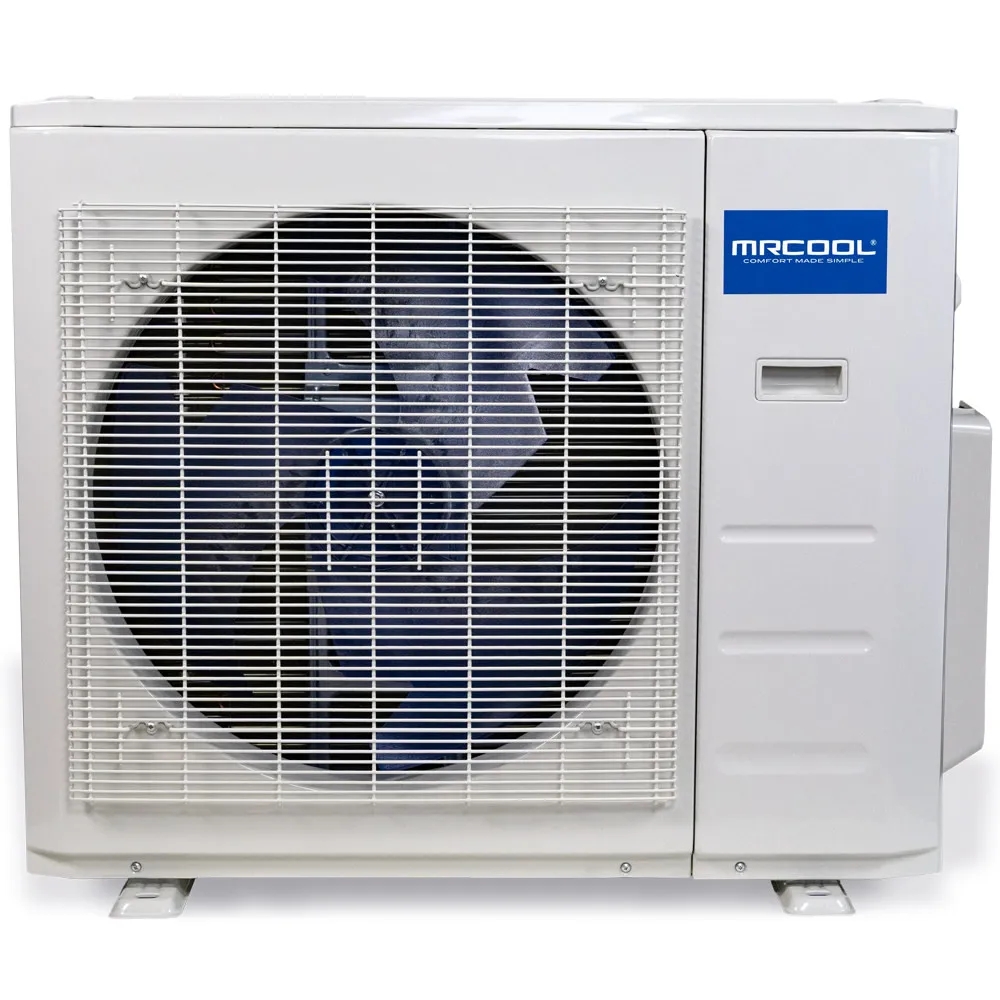

MRCOOL Olympus 18,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
MULTI2-18HP230B
Special · Olympus Sale
Manufacturer promotion — call or request a quote for sale pricing, while supplies last.
18,000 BTU · up to 2 zones · 22.9 SEER2 · 208/230V · R-410A
Part of Olympus Multi-Zone – Multi-Zone Condensers
- Cooling capacity
- 18,000 BTU1.5 tons
- Zones
- Up to 2
- Efficiency
- 22.9 SEER210.5 HSPF2
- Power
- 208/230V25A breaker
- Refrigerant
- R-410A
Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Build a multi-zone system with this condenser →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
This MRCOOL® Olympus 18,000 BTU Ductless Mini-Split Condenser, when partnered with a wall-mounted or ceiling cassette air handler, is a cost-saving heating and cooling solution for your home. With a SEER of 22.5 and 10.6 HSPF, this is also an Energy-Star certified efficient unit that uses eco-friendly R-410A refrigerant. Designed to be installed by an HVAC professional, this condenser with multi-zone technology gives you flexibility and control. For peace of mind, rely on the 7-year compressor, 5-year parts, and 1-year remote warranty when you have it installed by a professional.
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | Olympus Multi-Zone |
| Cooling capacity | 18,000 BTU |
| Heating capacity | 19,000 BTU |
| Nominal size | 1.5 tons |
| Zones | Up to 2 |
| SEER2 | 22.9 |
| EER2 | 13.9 |
| HSPF2 | 10.5 |
| Sound level | 58.5 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 18 A |
| Max. breaker (MOP) | 25 A |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 65.26 oz |
| Liquid line | 1/4" |
| Suction line | 3/8" |
| Dimensions (in) | 35.04 W × 13.46 D × 26.5 H |
|---|---|
| Weight | 100.31 lb |
| Shipping weight | 109 lb |
| ENERGY STAR | Yes |
|---|---|
| AHRI certified | Yes |
| Compressor warranty | 7 years |
| Parts warranty | 5 years |
| UPC | 840255521994 |
