MRCOOL

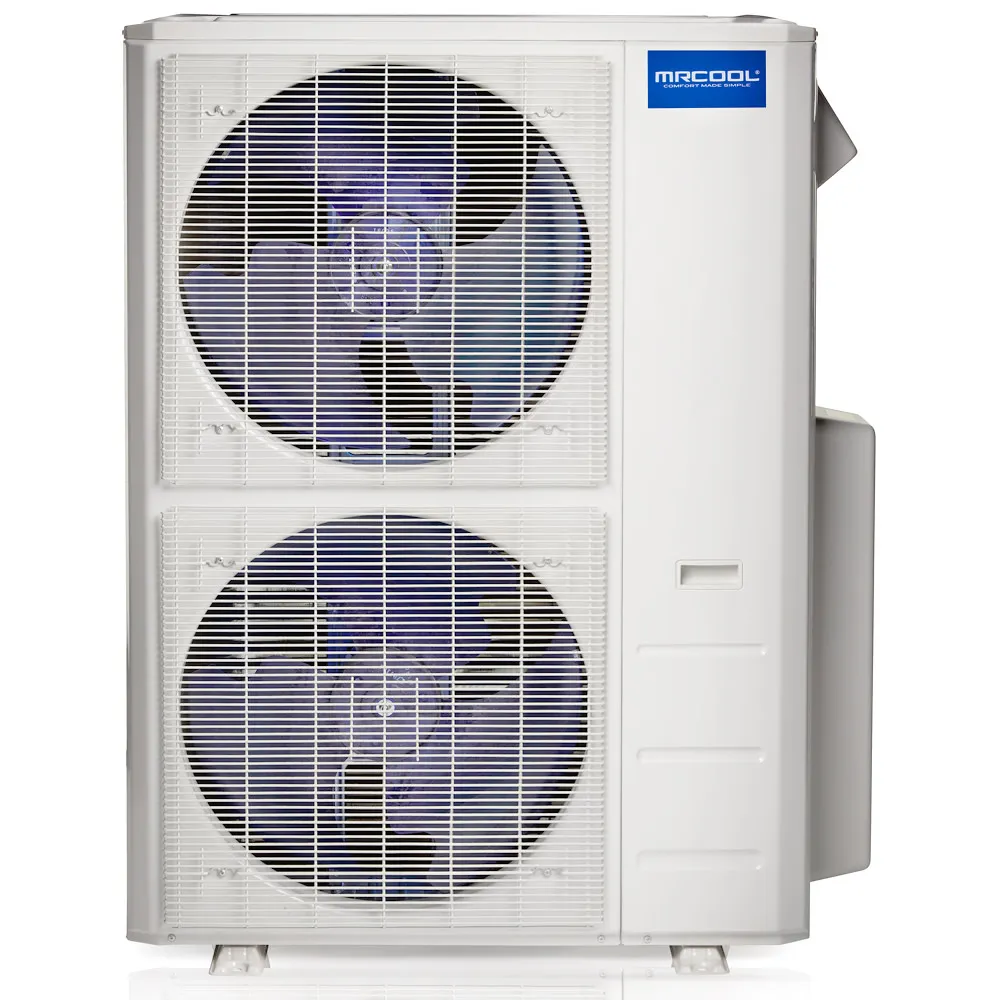

MRCOOL Olympus 48,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
MULTI5-48HP230B
Special · Olympus Sale
Manufacturer promotion — call or request a quote for sale pricing, while supplies last.
48,000 BTU · up to 5 zones · 23.4 SEER2 · 208/230V · R-410A
Part of Olympus Multi-Zone – Multi-Zone Condensers
- Cooling capacity
- 48,000 BTU4 tons
- Zones
- Up to 5
- Efficiency
- 23.4 SEER28.7 HSPF2
- Power
- 208/230V60A breaker
- Refrigerant
- R-410A
Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. Professional installation by a licensed HVAC contractor is required for the manufacturer warranty.
Build a multi-zone system with this condenser →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
This MRCOOL® Olympus 48k Ductless Mini-Split Condenser is the answer to your heating and cooling problems without breaking the bank. Rely on this Energy Star certified condenser to help save money on your utility bills thanks to its 22.4 SEER and 11 HSPF. It uses environmentally-friendly refrigerant R-410A, and features Gold Fin® anti-corrosion technology. When installed by a professional, you can feel confident with the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | Olympus Multi-Zone |
| Cooling capacity | 48,000 BTU |
| Heating capacity | 48,000 BTU |
| Nominal size | 4 tons |
| Zones | Up to 5 |
| SEER2 | 23.4 |
| EER2 | 12.5 |
| HSPF2 | 8.7 |
| Sound level | 64 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 40 A |
| Max. breaker (MOP) | 60 A |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 162 oz |
| Liquid line | 1/4" |
| Suction line | 3/8 & 1/2" |
| Dimensions (in) | 37.48 W × 16.34 D × 52.48 H |
|---|---|
| Weight | 225.53 lb |
| Shipping weight | 257 lb |
| ENERGY STAR | Yes |
|---|---|
| AHRI certified | Yes |
| Compressor warranty | 7 years |
| Parts warranty | 5 years |
| UPC | 840255522021 |
