EnVision LED

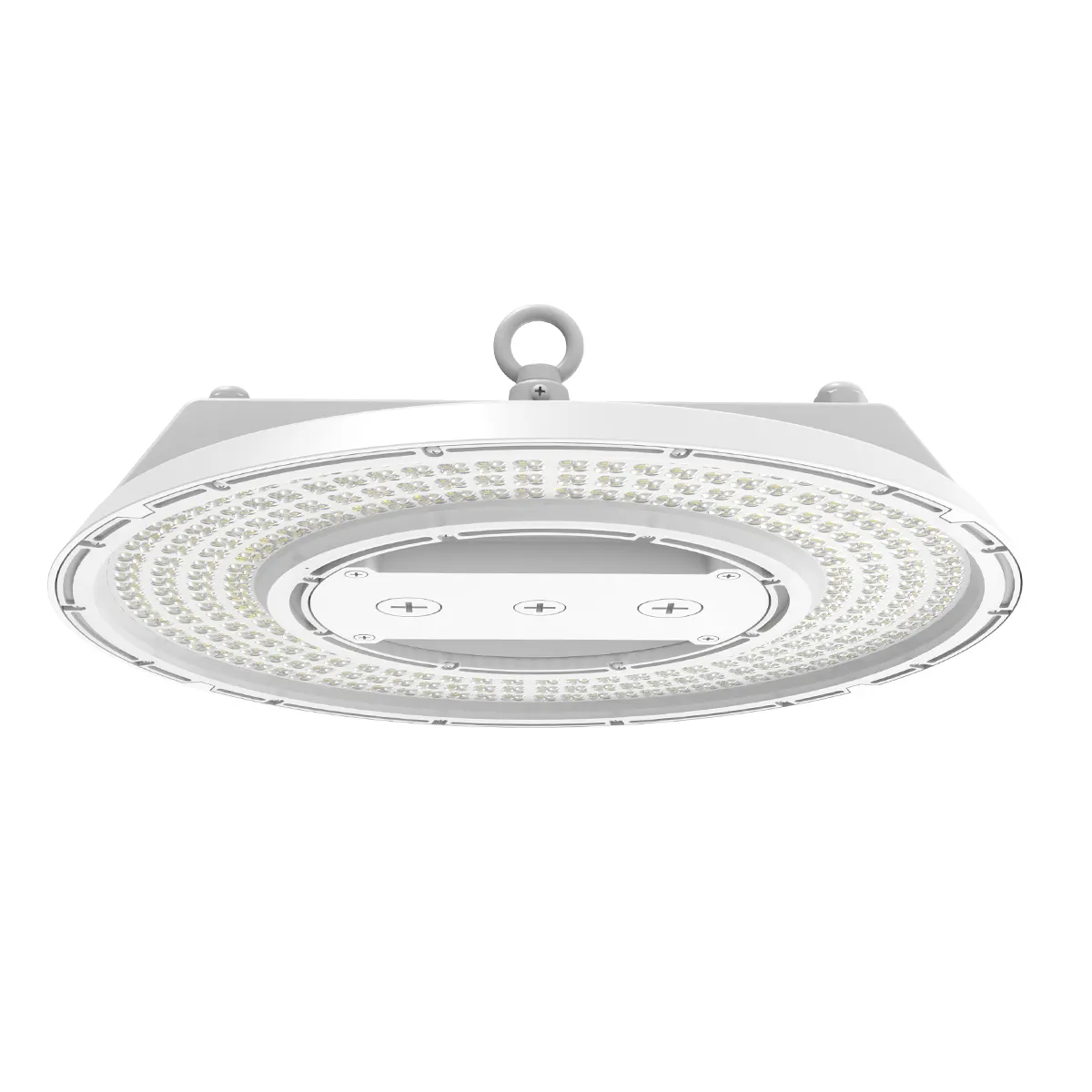

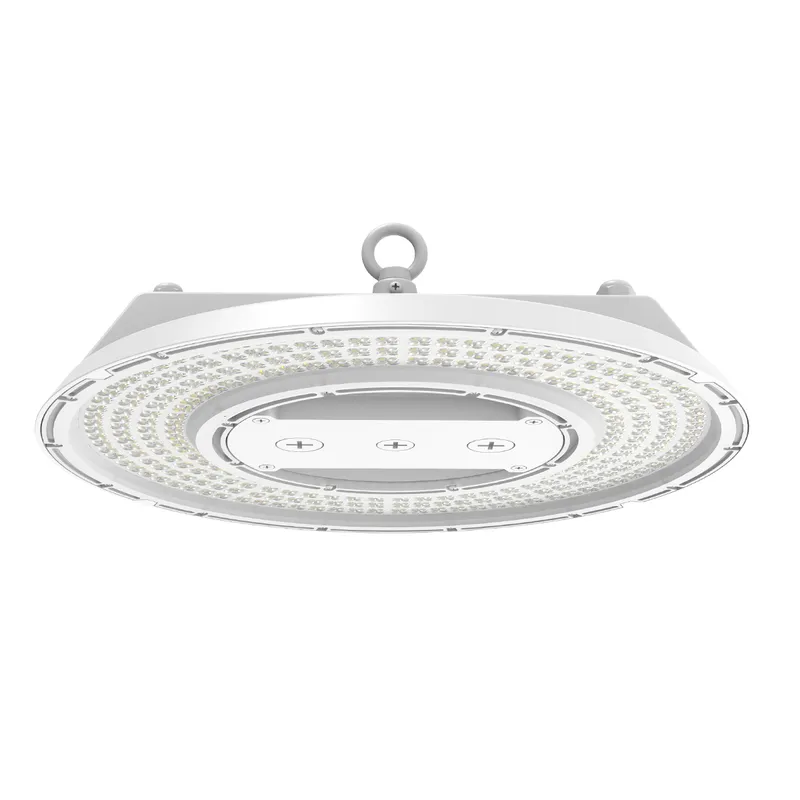

ARCY-LINE: RHB3 UFO High Bays NSF
2 part numbers · High Bay (Round)
- Wattage
- 100–240W
- Lumens
- 10,020–40,080 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Listed
- Warranty
- 5 years

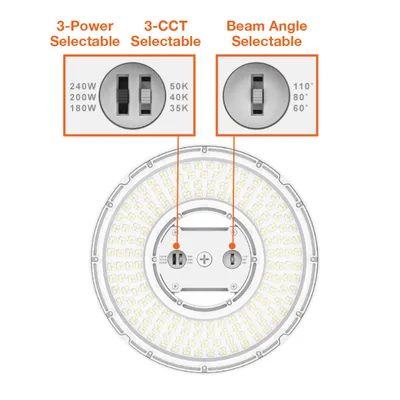

Key features
- 3CCT
- Select-N-Switch
- Twist-C
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | LED-RHBA-3P150-CTRI-WH-UNV-10 | ARCY-LINE: RHB3 UFO High Bays NSF | 100/120/150W | 10,020/16,700/25,050 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
 | LED-RHBA-3P240-CTRI-WH-UNV-10 | ARCY-LINE: RHB3 UFO High Bays NSF | 180/210/240W | 30,060/35,070/40,080 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-rhba-3p180-ctri-wh-unv-4k-60d.ies
- IES fileled-rhba-3p200-ctri-wh-unv-4k-110d.ies
- IES fileled-rhba-3p180-ctri-wh-unv-4k-110d.ies
- IES fileled-rhba-3p200-ctri-wh-unv-4k-60d.ies
- IES fileled-rhba-3p240-ctri-wh-unv-4k-60d.ies
- IES fileled-rhba-3p180-ctri-wh-unv-4k-80d.ies
- IES fileled-rhba-3p200-ctri-wh-unv-4k-80d.ies
- IES fileled-rhba-3p240-ctri-wh-unv-4k-110d.ies
- IES fileled-rhba-3p240-ctri-wh-unv-4k-80d.ies
- IES fileled-rhba-3p150-ctri-wh-unv-4k-80d.ies
- IES fileled-rhba-3p150-ctri-wh-unv-4k-60d.ies
- IES fileled-rhba-3p150-ctri-wh-unv-4k-110d.ies
