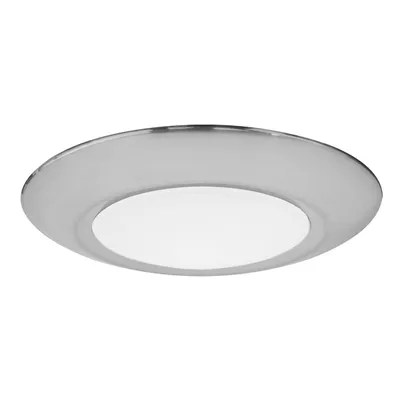

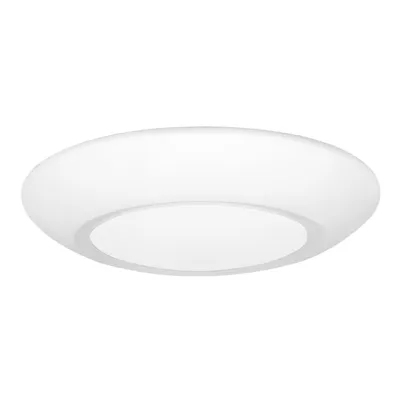

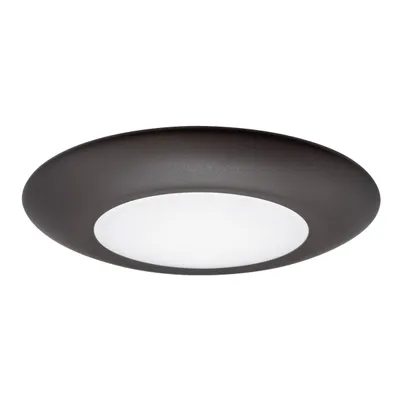

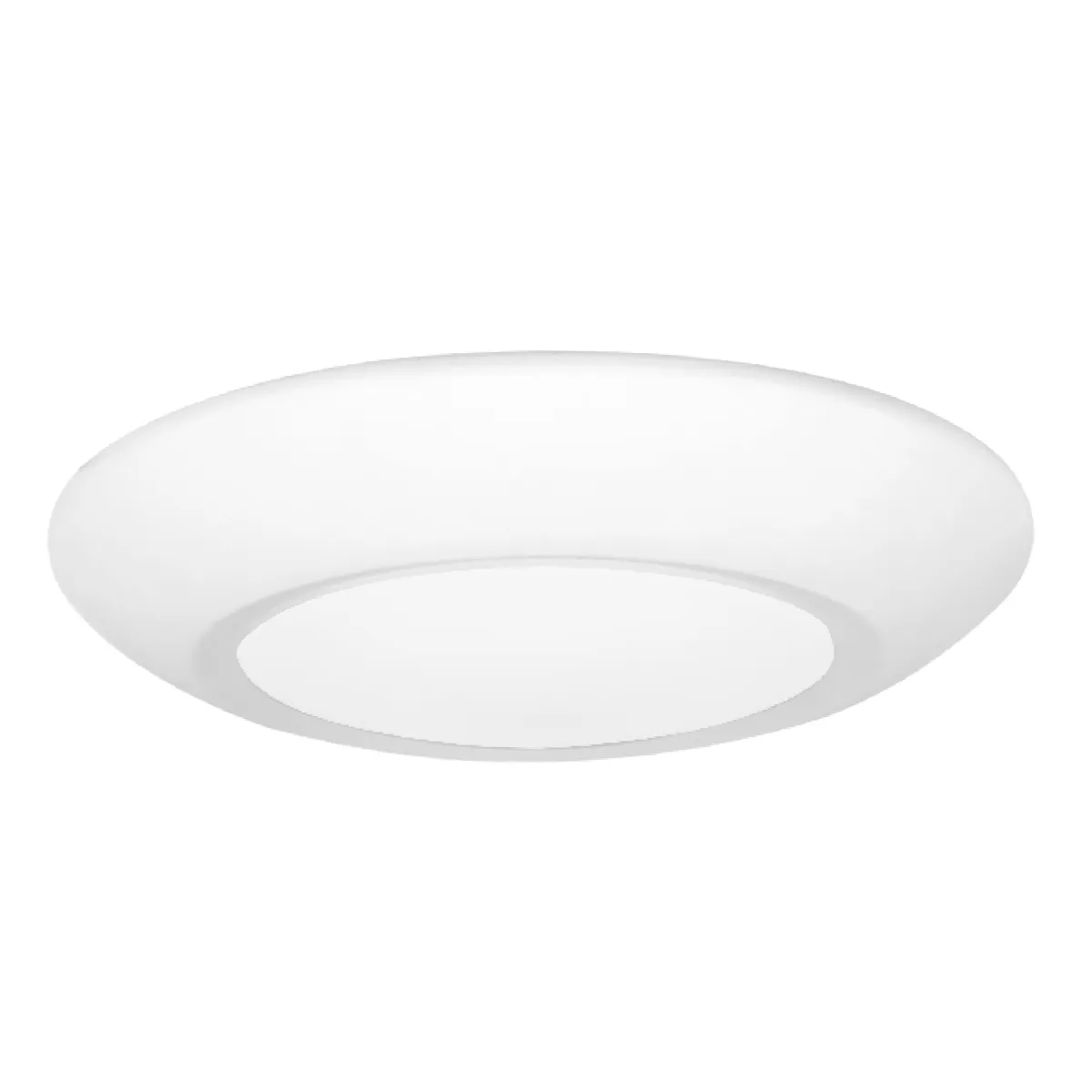

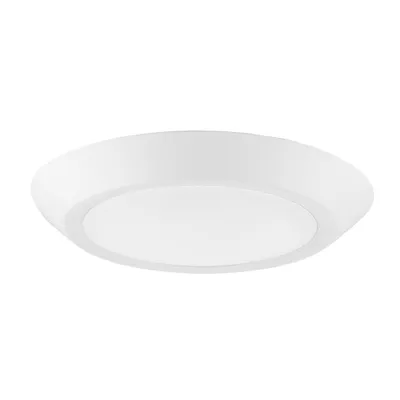

EnVision LED
Disk Lights - AC Driverless 3O/4O J-Box Applications

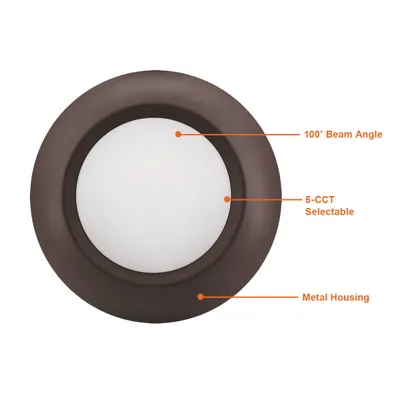

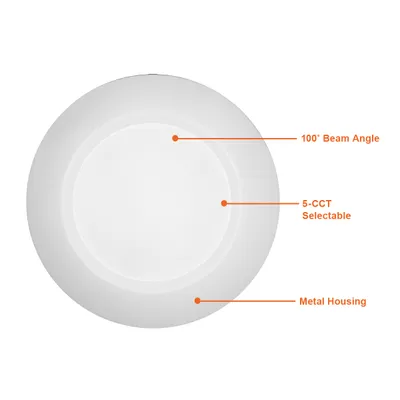

5CCT Selectable • ‘-TRI’ model switches between 3000k, 4000k, & 5000k • Mount to existing 3O or 4O j-box or ceiling • Fixture is damp rated.
17 part numbers · Disk Lights - AC Driverless 3O/4O J-Box Applications
- Wattage
- 8–27W
- Lumens
- 650–2,100 lm
- Color temperature
- 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage
- 120V
- Dimming
- Dimmable, TRIAC/ELV
- CRI
- 90+
- Finish
- White, Bronze, Brushed Nickel, Black
- Warranty
- 5 years
Overview

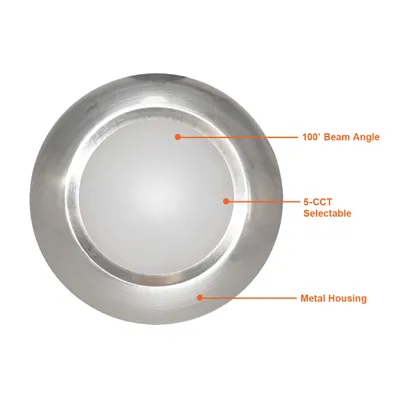

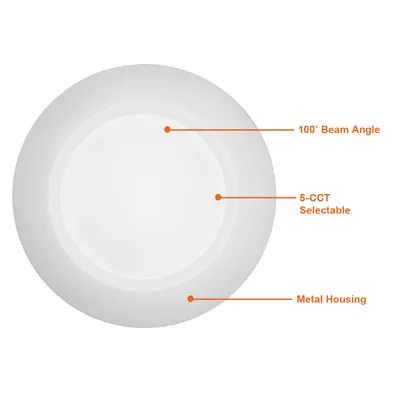

5CCT Selectable • ‘-TRI’ model switches between 3000k, 4000k, & 5000k • Mount to existing 3O or 4O j-box or ceiling • Fixture is damp rated. Silicone sealant required for wet location • Newly updated CCT switch, allows for installation into pancake J-box
Key features
- 5CCT
- Select-N-Switch
- 3CCT
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

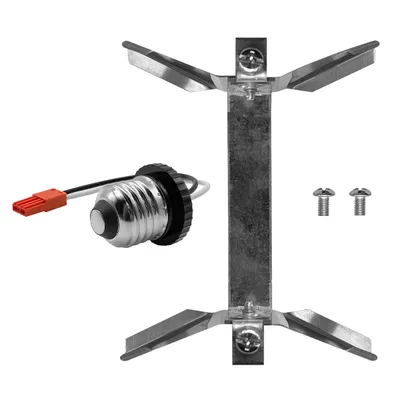

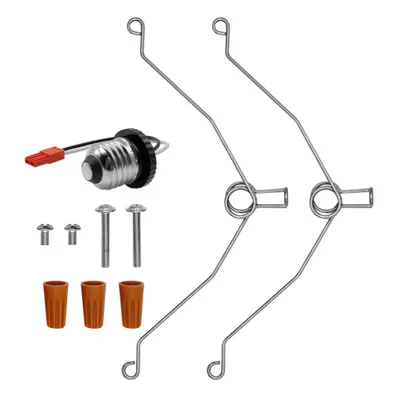

 | CDSK-4-CLIP | CDSK-4: 4" Recessed Can Converter | — | — | — | — | — | — | — | Call for pricing | ||
 | CDSK-6-CLIP | CDSK-6: 6" Recessed Can Converter | — | — | — | — | — | — | — | Call for pricing | ||

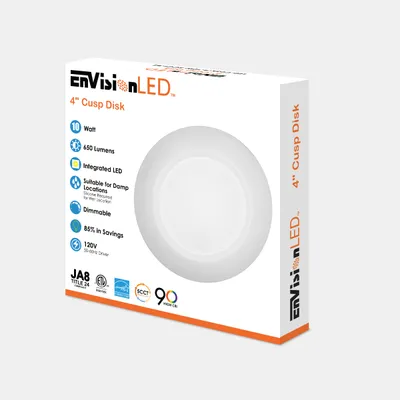

 | LED-CDSK-4-8W-5CCT-WH | 4" Disk Lite: Cusp-Line | 8W | 700 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||

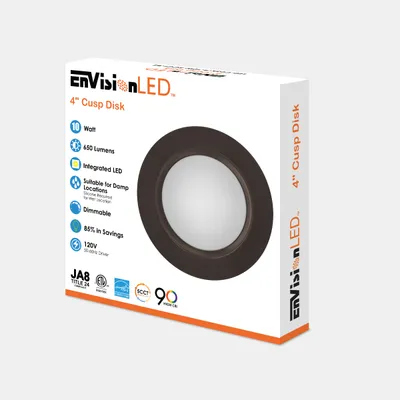

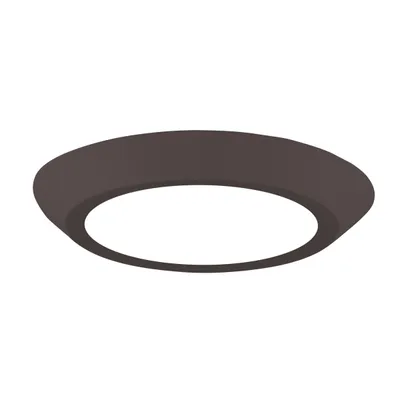

 | LED-CDSK-4-10W-5CCT-BZ | 4" Disk Lite: Cusp-Line | 10W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | Bronze | — | Call for pricing | ||
 | LED-CDSK-4-10W-5CCT-WH | 4" Disk Lite: Cusp-Line | 10W | 650 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-CDSK-4-10W-TRI-BN | 4" Disk Lite: Cusp-Line | 10W | 650 lm | 3000K/4000K/5000K | 120V | TRIAC/ELV | Brushed Nickel | — | Call for pricing | ||

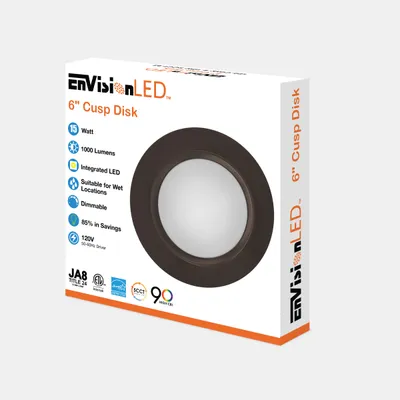

 | LED-CDSK-6-11W-5CCT-BLK | 6" Disk Lite: Cusp-Line | 11W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | Black | — | Call for pricing | ||
 | LED-CDSK-6-11W-5CCT-BZ | 6" Disk Lite: Cusp-Line | 11W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | Bronze | — | Call for pricing | ||
 | LED-CDSK-6-11W-5CCT-WH | 6" Disk Lite: Cusp-Line | 11W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | Dimmable | White | — | Call for pricing | ||
| LED-CDSK-6-15W-30K | 6" Disk Lite: Cusp-Line | 15W | 1,000 lm | 3000K | 120V | Dimmable | White | — | Call for pricing | ||
 | LED-CDSK-6-15W-5CCT-BLK | 6" Disk Lite: Cusp-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-CDSK-6-15W-5CCT-BZ | 6" Disk Lite: Cusp-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-CDSK-6-15W-5CCT-WH | 6" Disk Lite: Cusp-Line | 15W | 1,000 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
 | LED-CDSK-6-15W-TRI-BN | 6" Disk Lite: Cusp-Line | 15W | 1,000 lm | 3000K/4000K/5000K | 120V | TRIAC/ELV | Brushed Nickel | — | Call for pricing | ||
 | LED-CDSK-8-27W-5CCT-WH | 8" Disk Lite High Lumen: Cusp-Line | 27W | 2,100 lm | 2700K/3000K/3500K/4000K/5000K | 120V | TRIAC/ELV | White | — | Call for pricing | ||
| LED-CDSK-6-15W-35KDISC | 6" Disk Lite: Cusp-Line | 15W | 1,000 lm | 3500K | 120V | Dimmable | White | — | Call for pricing | — | |
| LED-CDSK-6-15W-40KDISC | 6" Disk Lite: Cusp-Line | 15W | 1,000 lm | 4000K | 120V | Dimmable | White | — | Call for pricing | — |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileled-cdsk-4-10w_iesna2002.ies
- IES fileled-cdsk-4-10w_iesna2002.ies
- IES fileled-cdsk-4-10w_iesna2002.ies
- IES fileled-cdsk-6-15w-iesna2002.ies
- IES fileled-cdsk-6-15w-iesna2002.ies
- IES fileled-cdsk-6-15w-iesna2002.ies
- IES fileled-cdsk-6-15w-iesna2002.ies
- IES fileled-cdsk-8-27w-5cct-wh-3000k-2022-11-7_iesna2002.ies
- IES fileled-cdsk-8-27w-5cct-wh-5000k-2022-11-7_iesna2002.ies
- IES fileled-cdsk-8-27w-5cct-wh-4000k-2022-11-7_iesna2002.ies
- IES fileled-cdsk-8-27w-5cct-wh-2700k-2022-11-7_iesna2002.ies
- IES fileled-cdsk-8-27w-5cct-wh-3500k-2022-11-7_iesna2002.ies
- IES fileled-cdsk-4-8w-5cct-wh-8w-27k.ies
- IES fileled-cdsk-6-11w-5cct-wh-27k.ies
