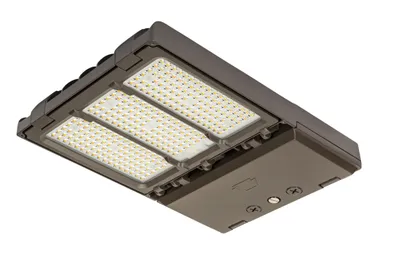

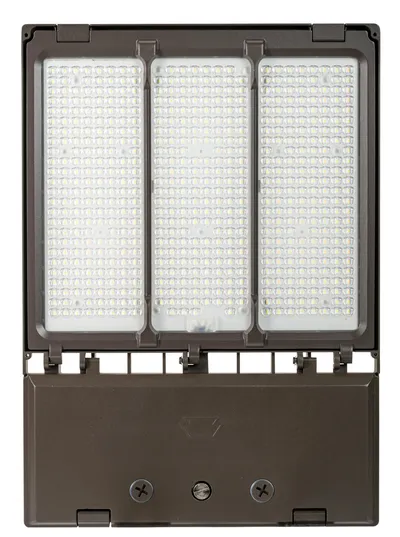

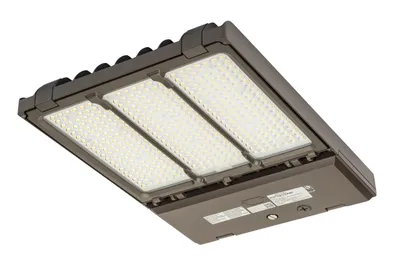

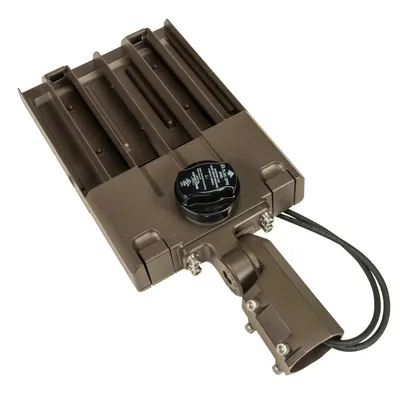

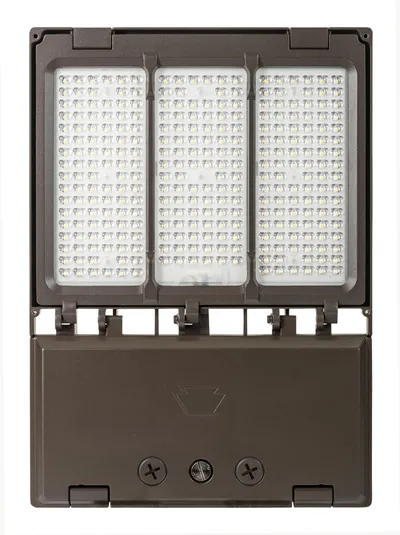

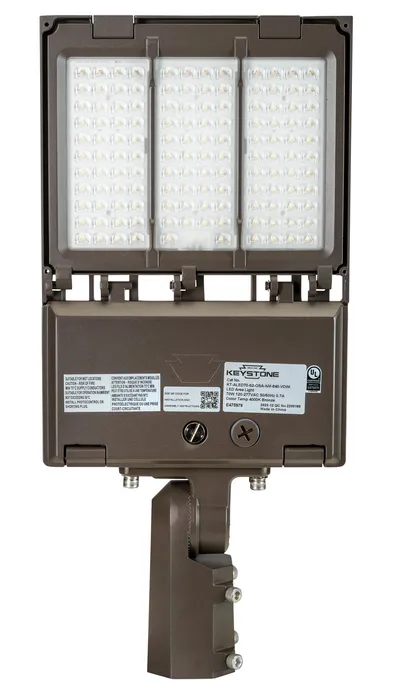

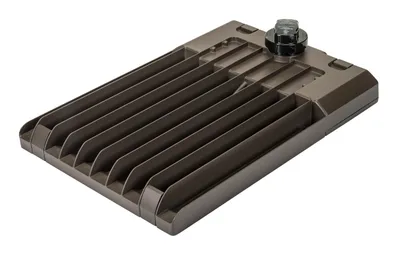

Area Lights – Area Lights with OpticSwap

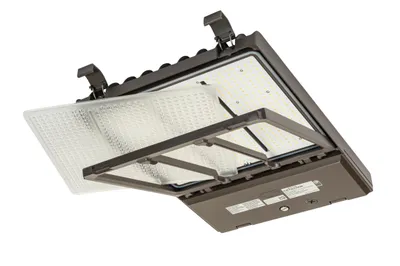

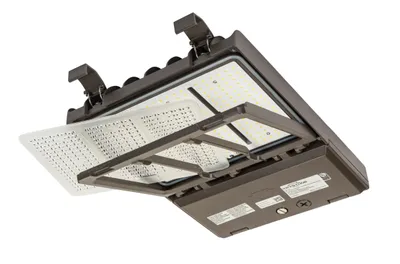

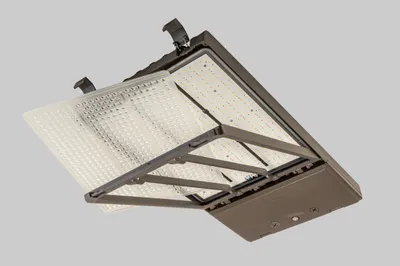

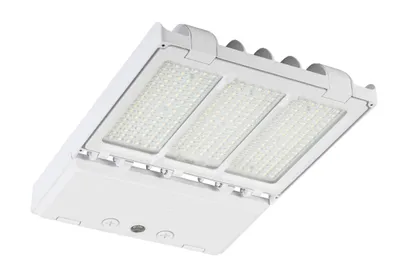

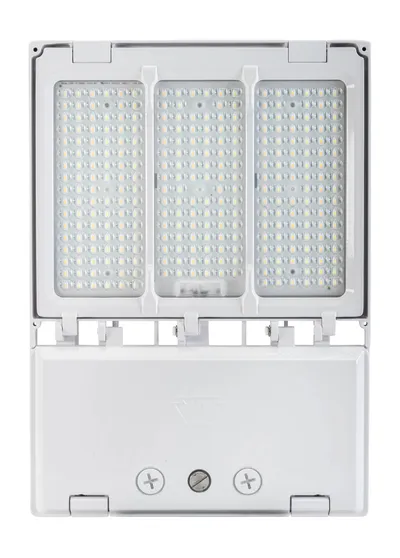

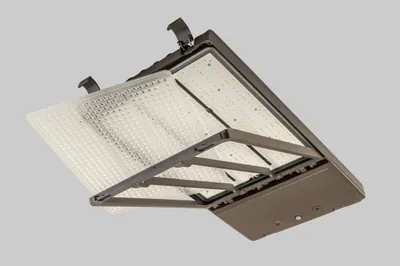

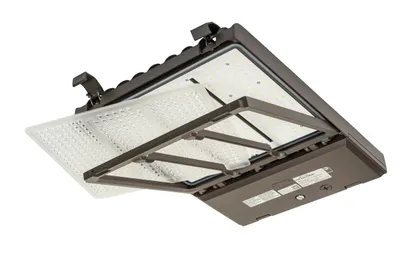

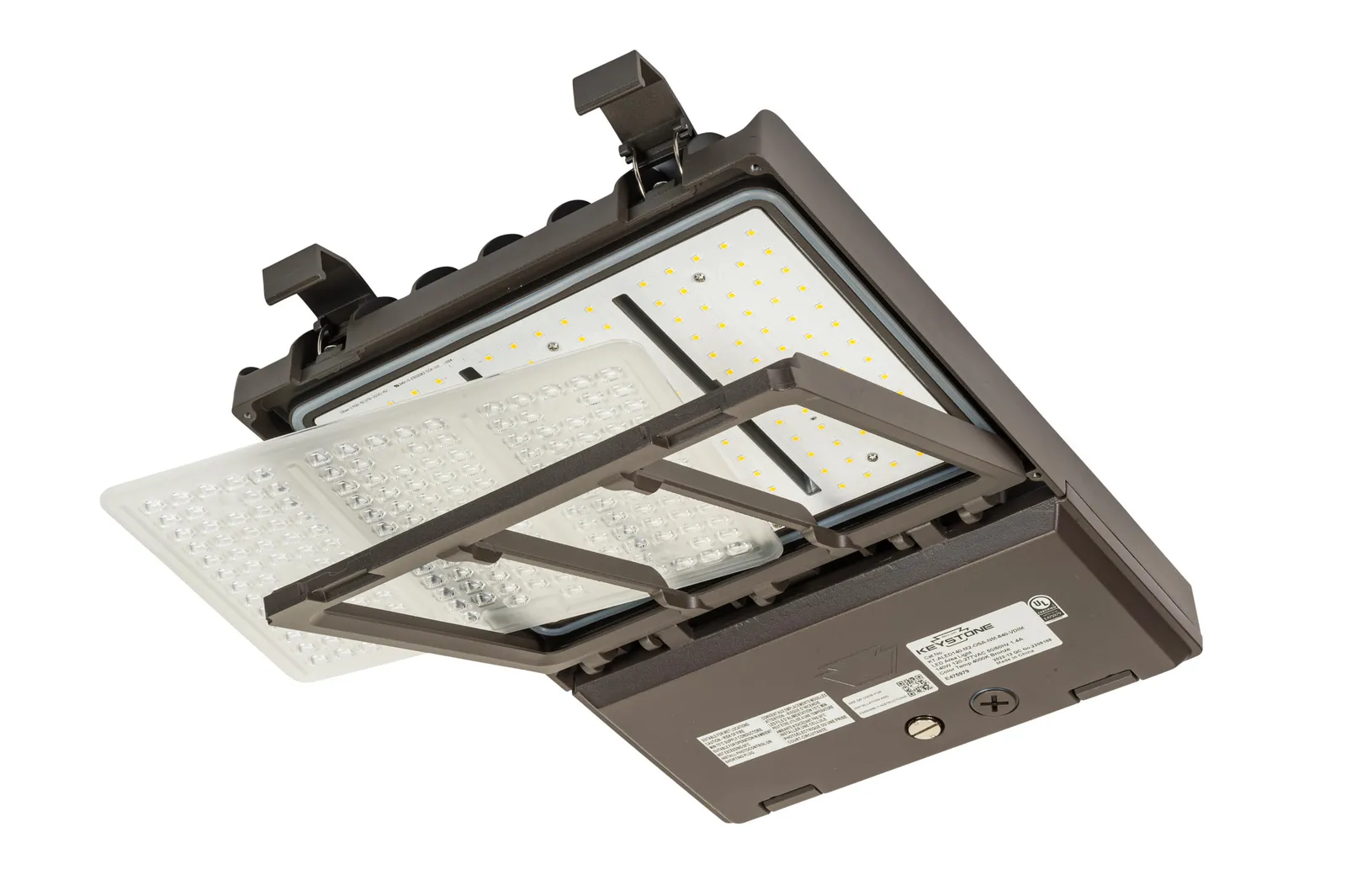

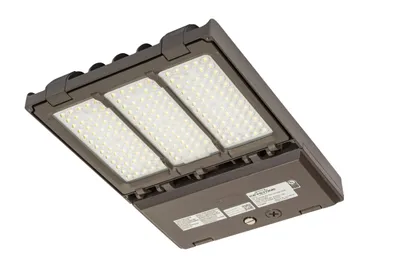

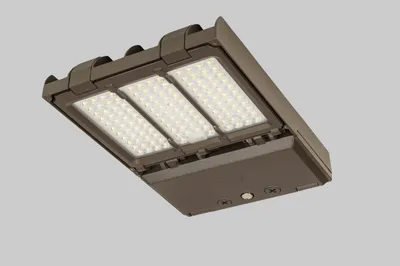

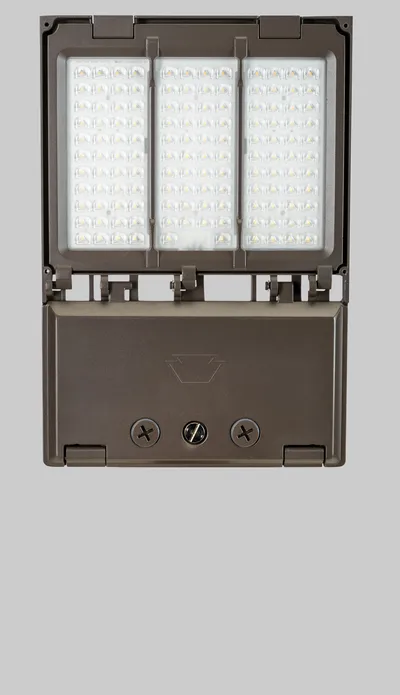

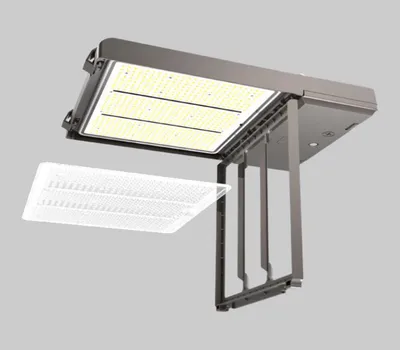

A full line of area lights in 3 housing sizes, available with OpticSwap, our pioneering field-swappable optic lens feature.

25 part numbers · Outdoor

Wattage
70–420W
Lumens
10,730–42,400 lm
Color temperature
3000K, 4000K, 5000K
Voltage
120–277V, 277–480V
Dimming
0-10V
CRI
80+
Finish
Bronze, Black, Silver, White
DLC
DLC Premium
Warranty
10 years
Request a QuoteSpec sheet678-467-5515

Overview

A full line of area lights in 3 housing sizes, available with OpticSwap, our pioneering field-swappable optic lens feature.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare
KT-ALED70-S2-OSA-NM-840-VDIM/G270W | 4000K | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Small Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 270W—4000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED70-S2-OSA-NM-850-VDIM/G270W | 5000K | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Small Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 270W—5000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED100-S2-OSA-NM-850-VDIM100W 5000K LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Small Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Standard Bronze Housing.100W14,850 lm5000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED100-S2-OSA-NM-850-VDIM/G2100W | 5000K | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Small Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 2100W—5000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED140-M2-OSA-NM-840-VDIM/G2140W | 4000K | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 2140W—4000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED140-M2-OSA-NM-850-VDIM/G2140W | 5000K | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 2140W—5000K120–277V0-10VBronzePremiumCall for pricing

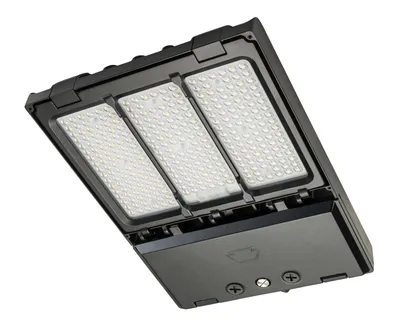

KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-B/G2140W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Black Housing | Generation 270/100/140W10,730/14,790/19,600 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing

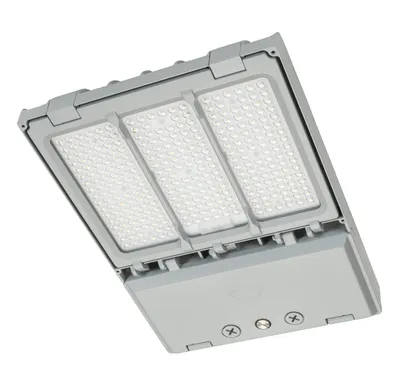

KT-ALED140PS-M2-OSA-NM-8CSB-VDIM-S/G2140W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Silver Housing | Generation 270/100/140W10,730/14,790/19,600 lm3000K/4000K/5000K120–277V0-10VSilverPremiumCall for pricing
KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM-W/G2140W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | 277-480V Input | 0-10V Dimmable | Standard White Housing | Generation 270/100/140W10,730/14,790/19,600 lm3000K/4000K/5000K277–480V0-10VWhitePremiumCall for pricing
KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIM/G2140W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Medium Housing | Optics Selectable A (Type III and V) | 277-480V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 270/100/140W10,730/14,790/19,600 lm3000K/4000K/5000K277–480V0-10VBronzePremiumCall for pricing
KT-ALED210-L2-OSA-NM-840-VDIM210W 4000K LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Standard Bronze Housing.210W31,700 lm4000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED210-L2-OSA-NM-850-VDIM/G2210W | 5000K | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Large Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 2210W—5000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED290-L2-OSA-NM-840-VDIM290W 4000K LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Standard Bronze Housing.290W42,400 lm4000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED290-L2-OSA-NM-850-VDIM/G2290W | 5000K | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Large Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 2290W—5000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED290PS-L2-OSA-NM-8CSB-VDIM-B/G2290W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Large Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Black Housing | Generation 2185/210/290W27,540/30,860/39,960 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing
KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM/G2290W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Large Housing | Optics Selectable A (Type III and V) | 277-480V Input | 0-10V Dimmable | Standard Bronze Housing | Generation 2185/210/290W27,540/30,860/39,960 lm3000K/4000K/5000K277–480V0-10VBronzePremiumCall for pricing
KT-ALED340PS-VL2-OSA-NM-8CSB-VDIM/G2340W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Very Large Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Bronze Housing | Generation 2210/290/340W—3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED420PS-VL2-OSA-NM-8CSB-VDIM/G2420W Power Select | Color Select | LED Area Light with NEMA Twist Lock Receptacle + Shorting Cap | Series 2 Very Large Housing | Optics Selectable A (Type III and V) | 120-277V Input | 0-10V Dimmable | Bronze Housing | Generation 2290/340/420W—3000K/4000K/5000K120–277V0-10VBronzePremiumCall for pricing
KT-ALED70-S2-OSA-NM-840-VDIMDISC70W 4000K LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Small Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Standard Bronze Housing.70W10,800 lm4000K120–277V0-10VBronzePremiumCall for pricing—
KT-ALED100-S2-OSA-NM-840-VDIMDISC100W 4000K LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Small Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Standard Bronze Housing.100W14,850 lm4000K120–277V0-10VBronzePremiumCall for pricing—
KT-ALED140-M2-OSA-NM-840-VDIMDISC140W 4000K LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Medium Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Standard Bronze Housing.140W20,900 lm4000K120–277V0-10VBronze—Call for pricing—
KT-ALED140PSHV-M2-OSA-NM-8CSB-VDIMDISC140W Power Select Color Select LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Medium Housing. Optics Selectable A (Type III and V). 277-480V Input. 0-10V Dimmable. Standard Bronze Housing.70/100/140W10,700/14,750/20,700 lm3000K/4000K/5000K277–480V0-10VBronzePremiumCall for pricing—
KT-ALED290PS-L2-OSA-NM-8CSB-VDIM-BDISC290W Power Select Color Select LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Black Housing.185/210/290W43,000 lm3000K/4000K/5000K120–277V0-10VBlackPremiumCall for pricing—
KT-ALED290PS-L2-OSA-NM-8CSB-VDIM-SDISC290W Power Select Color Select LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 120-277V Input. 0-10V Dimmable. Silver Housing.185/210/290W43,000 lm3000K/4000K/5000K120–277V0-10VSilverPremiumCall for pricing—
KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIMDISC290W Power Select Color Select LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 277-480V Input. 0-10V Dimmable. Standard Bronze Housing.185/210/290W27,000/31,700/42,700 lm3000K/4000K/5000K277–480V0-10VBronzePremiumCall for pricing—
