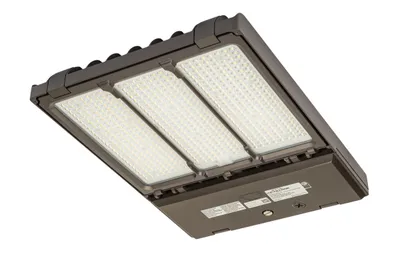

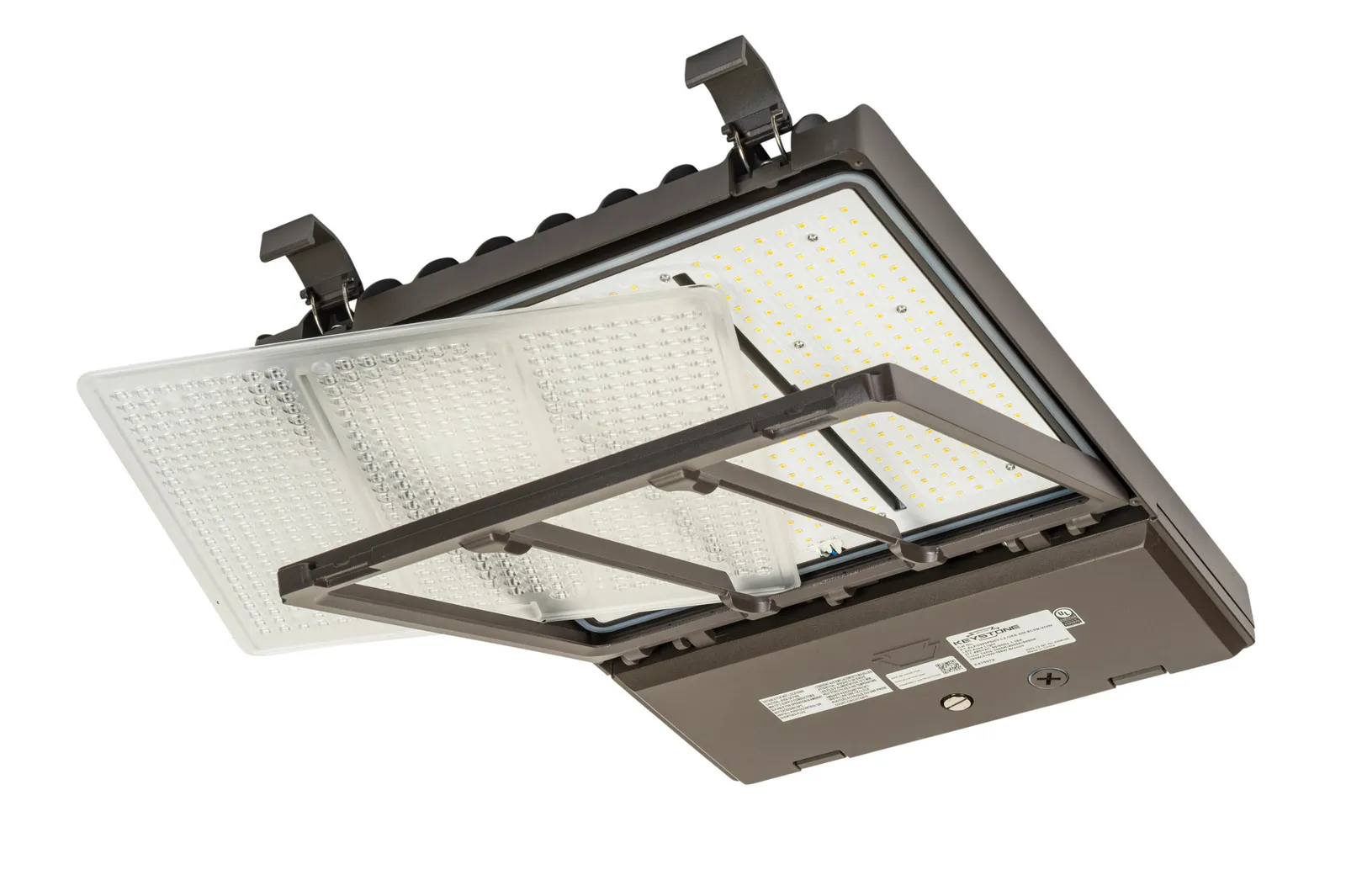

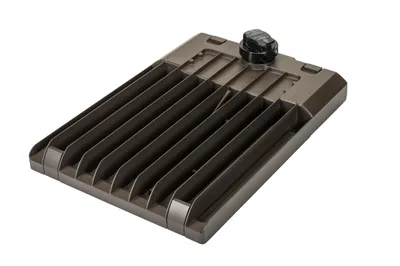

290W Power Select Color Select LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 277-480V Input. 0-10V Dimmable. Standard Bronze Housing.

Name: 290W Power Select Color Select LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 277-480V Input. 0-10V Dimmable. Standard Bronze Housing. (KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM)
Brand: Keystone Technologies
SKU: KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM

KT-ALED290PSHV-L2-OSA-NM-8CSB-VDIM

Discontinued — ask us about a replacement

185/210/290W · 27,000/31,700/42,700 lm · 3000K/4000K/5000K · 277–480V

Part of Area Lights – Area Lights with OpticSwap

Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.

Request a Quote Spec sheetCompare

Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.

Specifications

Electrical
Wattage	185/210/290W (selectable)
Voltage	277–480V
Dimming	0-10V

Photometric
Lumens	27,000/31,700/42,700 lm
Efficacy	147.2 lm/W
Color temperature	3000K/4000K/5000K (selectable)
CRI	80+
Distribution	Type III

Physical
Size	Large Housing
Finish	Bronze

Ratings & certifications
DLC	DLC Premium

Lifetime, warranty & ordering
Rated life	50,000 hrs
Warranty	10 years
UPC	843654153070
Pack quantity	1

290W Power Select Color Select LED Area Light with NEMA Type 3-pin Twist Lock Receptacle + Shorting Cap. Series 2 Large Housing. Optics Selectable A (Type III and V). 277-480V Input. 0-10V Dimmable. Standard Bronze Housing.
