Keystone Technologies
Cylinder
Architectural illumination for environments such as plazas, parks, and building exteriors, with tool-free changing of beam angle and light output.
33 part numbers · Outdoor
- Wattage
- 6–36W
- Lumens
- 600–3,200 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- Finish
- Bronze, Black, White
- Warranty
- 1–5 years
Overview
Architectural illumination for environments such as plazas, parks, and building exteriors, with tool-free changing of beam angle and light output. Keystone FormFit allows for changing exterior look in seconds.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

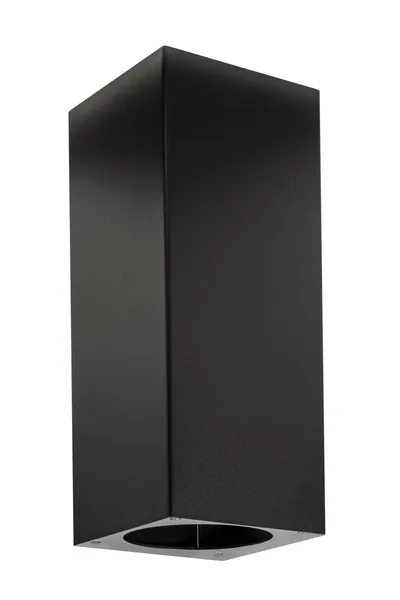

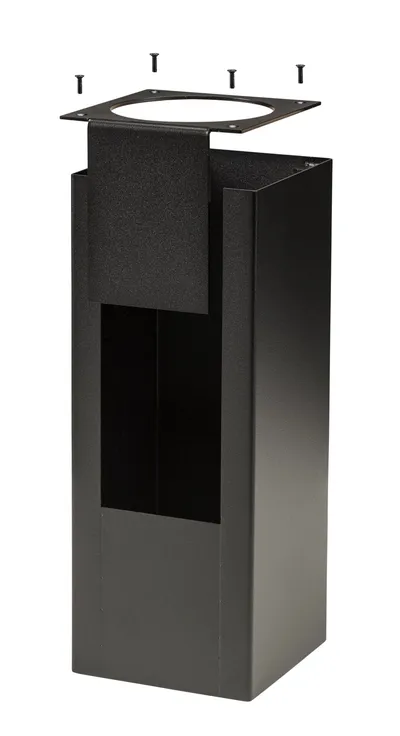

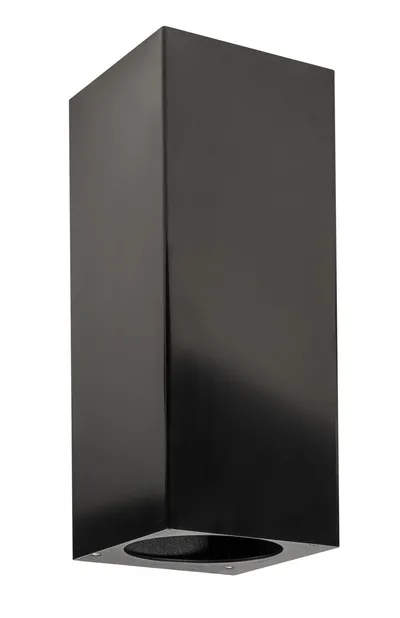

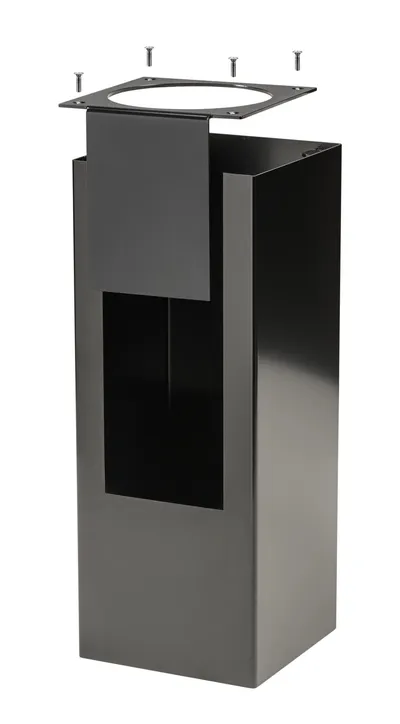

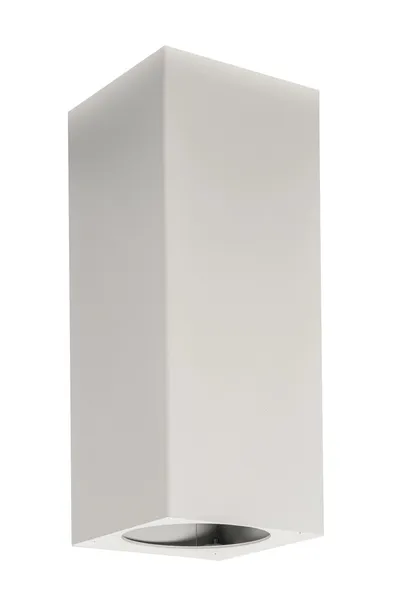

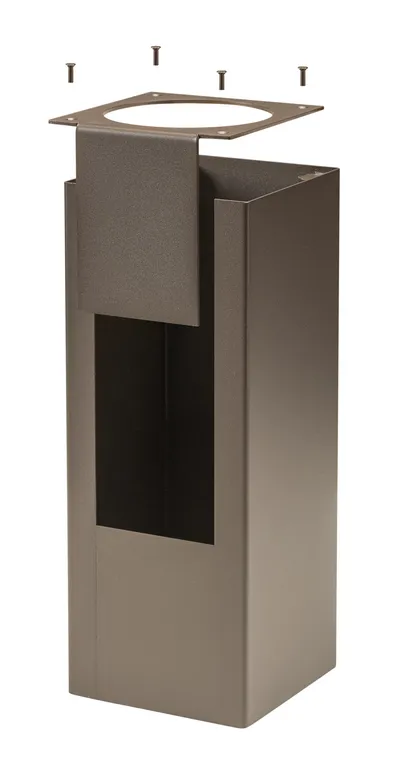

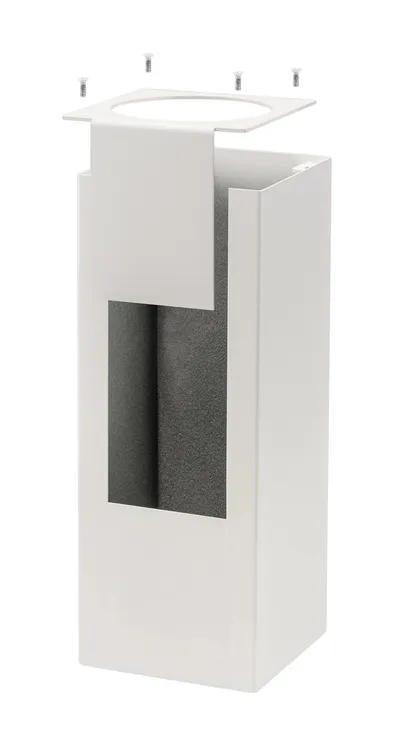

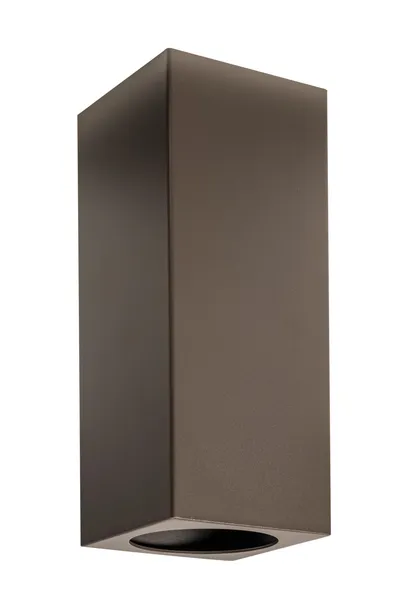

 | KT-CYLED-3A-SQ-1-KIT | Square shell. Bronze. Used on 3in wall mount cylinders | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-CYLED-3A-SQ-1-KIT-B | Square shell. Black. Used on 3in wall mount cylinders | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-CYLED-3A-SQ-1-KIT-U | Square shell. Unpainted. Used on 3in wall mount cylinders | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-CYLED-3A-SQ-1-KIT-W | Square shell. White. Used on 3in wall mount cylinders | — | — | — | — | — | White | — | Call for pricing | ||
| KT-CYLED-4A-SQ-1-KIT | Square shell. Bronze. Used on 4in wall mount cylinders | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-CYLED-4A-SQ-1-KIT-B | Square shell. Black. Used on 4in wall mount cylinders | — | — | — | — | — | Black | — | Call for pricing | ||
| KT-CYLED-4A-SQ-1-KIT-U | Square shell. Unpainted. Used on 4in wall mount cylinders | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-CYLED-4A-SQ-1-KIT-W | Square shell. White. Used on 4in wall mount cylinders | — | — | — | — | — | White | — | Call for pricing | ||
| KT-CYLED-6A-SQ-1-KIT | Square shell. Bronze. Used on 6in wall mount cylinders | — | — | — | — | — | Bronze | — | Call for pricing | ||
| KT-CYLED-6A-SQ-1-KIT-B | Square shell. Black. Used on 6in wall mount cylinders | — | — | — | — | — | Black | — | Call for pricing | ||
| KT-CYLED-6A-SQ-1-KIT-U | Square shell. Unpainted. Used on 6in wall mount cylinders | — | — | — | — | — | — | — | Call for pricing | ||
| KT-CYLED-6A-SQ-1-KIT-W | Square shell. White. Used on 6in wall mount cylinders | — | — | — | — | — | White | — | Call for pricing | ||

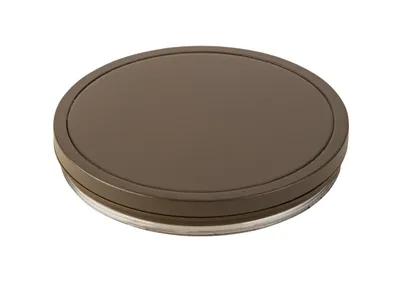

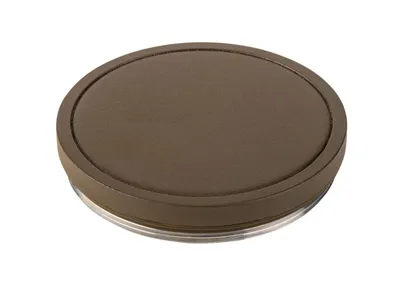

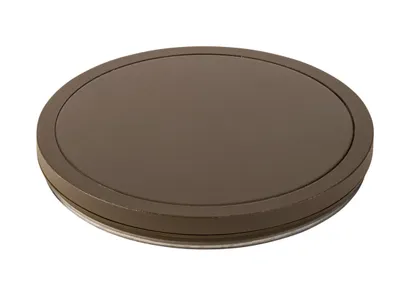

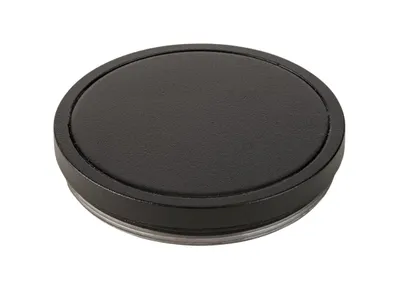

 | KT-CYLED-CAP-3A | Screw-on blocking cap | Bronze | For use on 3" Sentinel wall mount cylinder fixtures | — | — | — | — | — | Bronze | — | Call for pricing | ||

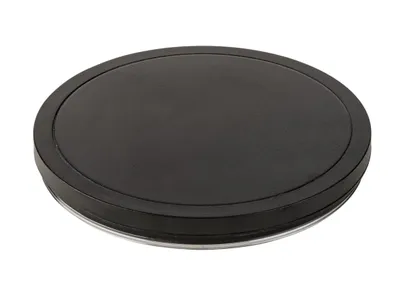

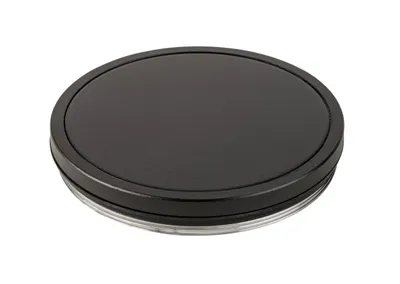

 | KT-CYLED-CAP-3A-B | Screw-on blocking cap | Black | For use on 3" Sentinel wall mount cylinder fixtures | — | — | — | — | — | Black | — | Call for pricing | ||

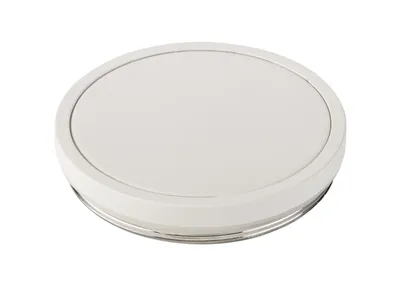

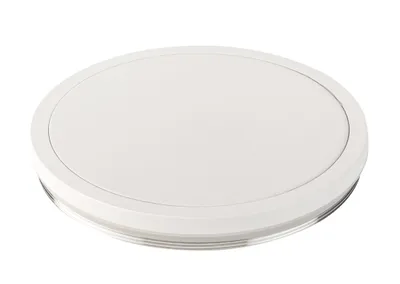

 | KT-CYLED-CAP-3A-W | Screw-on blocking cap | White | For use on 3" Sentinel wall mount cylinder fixtures | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-CYLED-CAP-4A | Screw-on blocking cap | Bronze | For use on 4" Sentinel wall mount cylinder fixtures | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-CYLED-CAP-4A-B | Screw-on blocking cap | Black | For use on 4" Sentinel wall mount cylinder fixtures | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-CYLED-CAP-4A-W | Screw-on blocking cap | White | For use on 4" Sentinel wall mount cylinder fixtures | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-CYLED-CAP-6A | Screw-on blocking cap | Bronze | For use on 6" Sentinel wall mount cylinder fixtures | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-CYLED-CAP-6A-B | Screw-on blocking cap | Black | For use on 6" Sentinel wall mount cylinder fixtures | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-CYLED-CAP-6A-W | Screw-on blocking cap | White | For use on 6" Sentinel wall mount cylinder fixtures | — | — | — | — | — | White | — | Call for pricing | ||

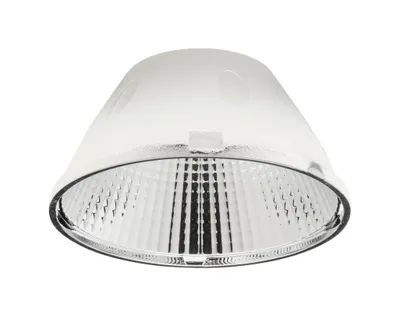

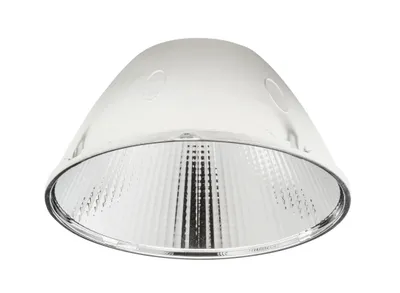

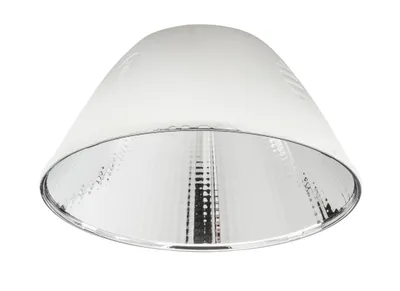

 | KT-CYLED-REFL-3A-15-KIT | 15deg reflector | Kit contains (2) physical reflectors | Used on 3in Sentinel wall mount cylinder fixture | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-CYLED-REFL-4A-15-KIT | 15deg reflector | Kit contains (2) physical reflectors | Used on 4in Sentinel wall mount cylinder fixture | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-CYLED-REFL-6A-15-KIT | 15deg reflector | Kit contains (2) physical reflectors | Used on 6in Sentinel wall mount cylinder fixture | — | — | — | — | — | — | — | Call for pricing | ||

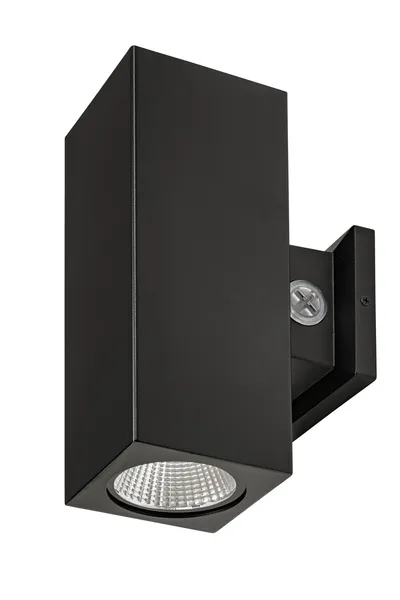

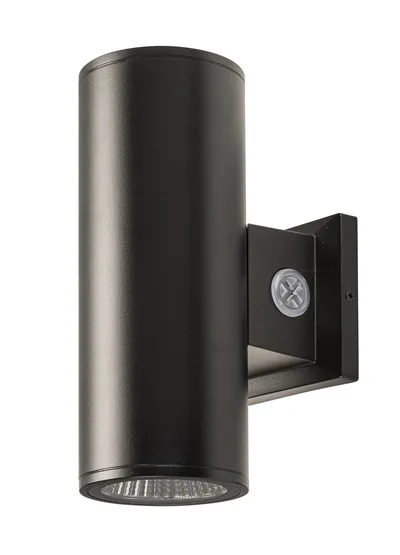

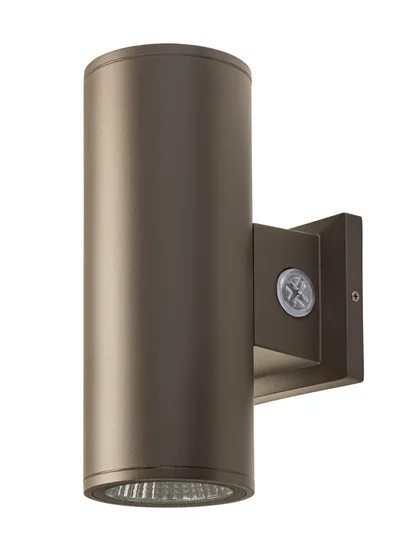

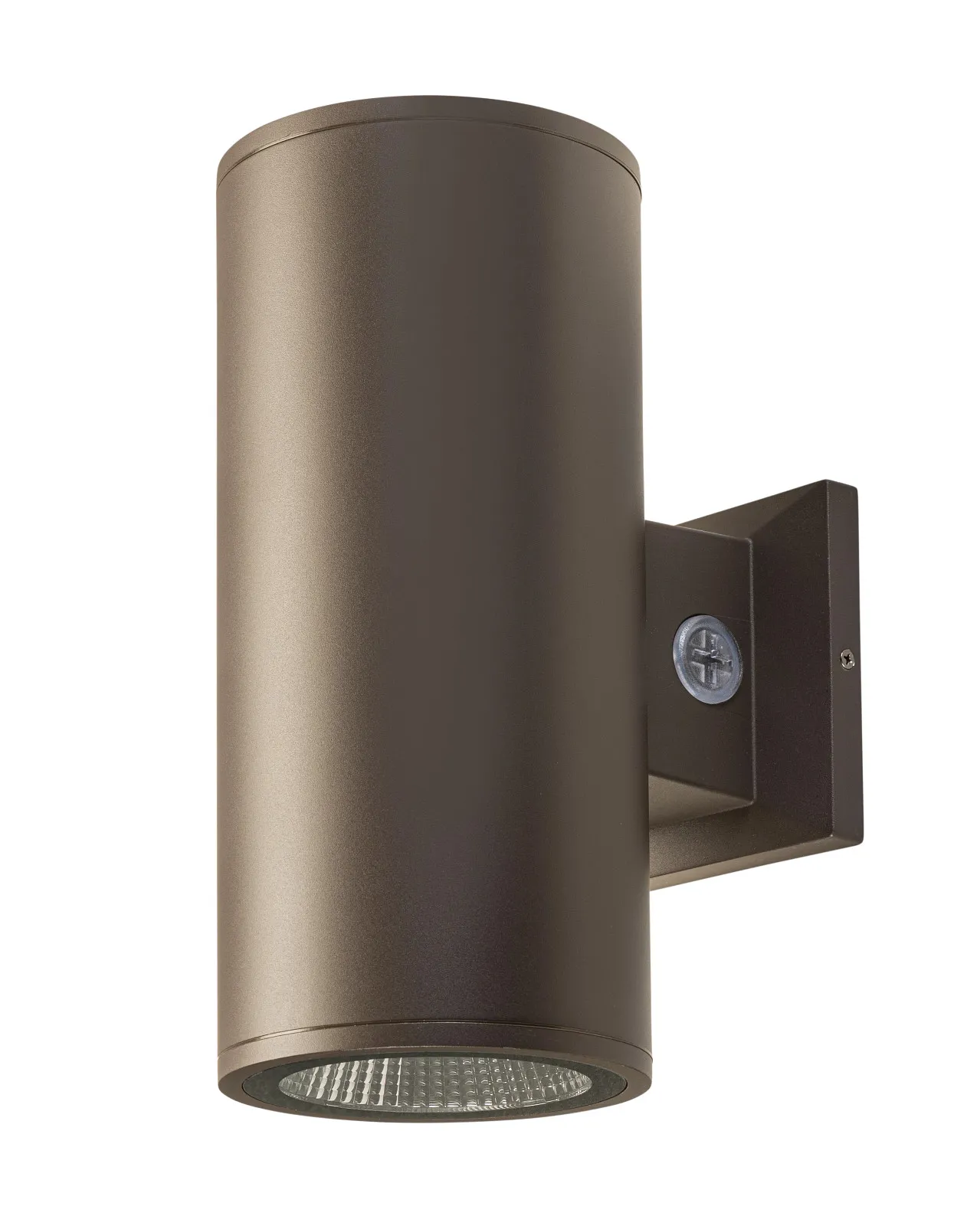

 | KT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM | 3in wall mount cylinder. Power Select 10/8/6W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. Bronze | 6/8/10W | 600/840/1,050 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||

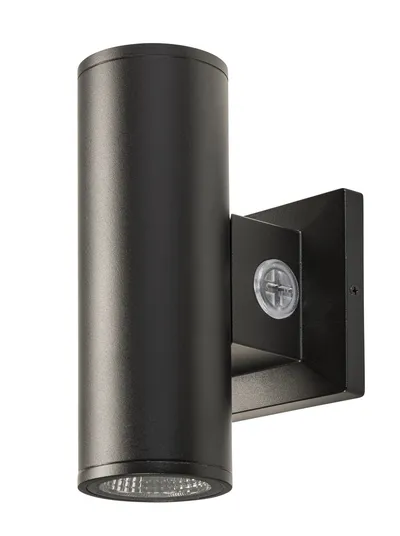

 | KT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM-B | 3in wall mount cylinder. Power Select 10/8/6W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. Black | 6/8/10W | 600/840/1,050 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | — | Call for pricing | ||

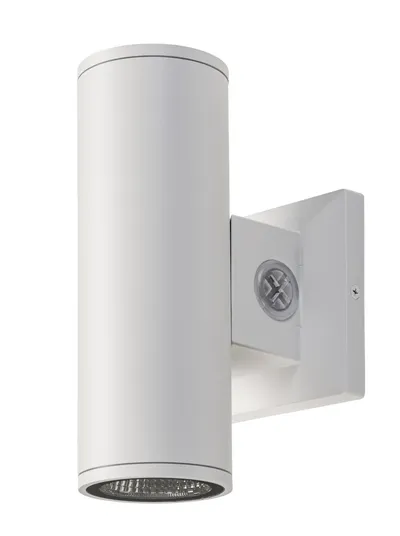

 | KT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM-W | 3in wall mount cylinder. Power Select 10/8/6W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. White | 6/8/10W | 600/840/1,050 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM | 4in wall mount cylinder. Power Select 20/16/12W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. Bronze | 12/16/20W | 1,290/1,650/2,050 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
 | KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM-B | 4in wall mount cylinder. Power Select 20/16/12W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. Black | 12/16/20W | 1,290/1,650/2,050 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | — | Call for pricing | ||
 | KT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM-W | 4in wall mount cylinder. Power Select 20/16/12W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. White | 12/16/20W | 1,290/1,650/2,050 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | KT-CYLED36PS-6A-WDI-OSG-8CSB-VDIM | 6in wall mount cylinder. Power Select 36/28/21W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. Bronze | 21/28/36W | 2,210/2,750/3,200 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | — | Call for pricing | ||
 | KT-CYLED36PS-6A-WDI-OSG-8CSB-VDIM-B | 6in wall mount cylinder. Power Select 36/28/21W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. Black | 21/28/36W | 2,210/2,750/3,200 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | — | Call for pricing | ||
 | KT-CYLED36PS-6A-WDI-OSG-8CSB-VDIM-W | 6in wall mount cylinder. Power Select 36/28/21W. Color Select 30/40/50K. Built-in photocell. 120-277V input. Direct and indirect optional. Includes 25deg, 40deg, and 60deg reflectors. White | 21/28/36W | 2,210/2,750/3,200 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileKT-CYLED36PS-6A-WDI-OSG-8CSB-VDIM_IES.zip
- IES fileKT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM_IES.zip
- IES fileKT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM_IES.zip
- IES fileKT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM-W_IES.zip
- IES fileKT-CYLED10PS-3A-WDI-OSG-8CSB-VDIM_10W_5K_F_15_1V.IES
- IES fileKT-CYLED20PS-4A-WDI-OSG-8CSB-VDIM_20W_5K_F_15_1V.IES
- IES fileKT-CYLED36PS-6A-WDI-OSG-8CSB-VDIM_36W_5K_F_15_1V.IES
