Keystone Technologies
Floodlights – General Purpose

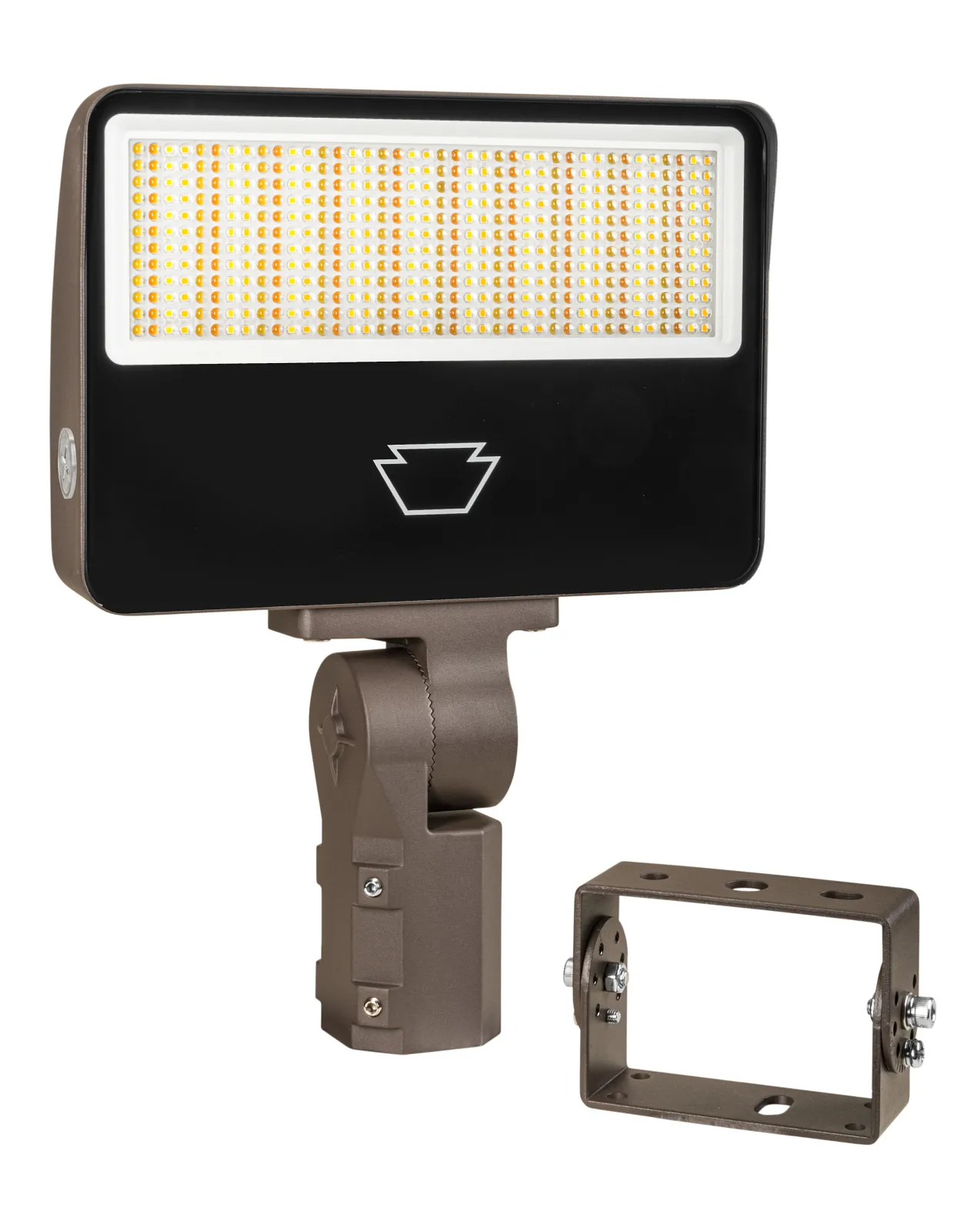

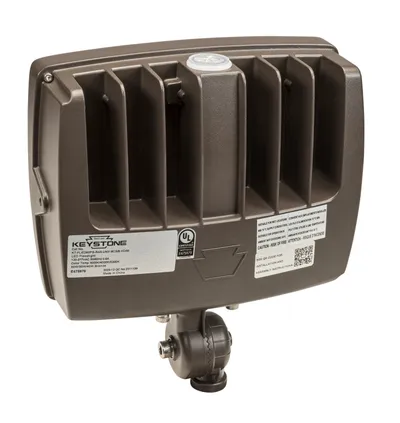

A floodlight with available field-adjustable outputs and everything in the box -- Power and Color Select technology, built-in photocell, and 2 mounts.
31 part numbers · Outdoor
- Wattage
- 9–100W
- Lumens
- 1,332–15,020 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Bronze, White
- DLC
- DLC Premium
- Warranty
- 1–10 years
Overview
A floodlight with available field-adjustable outputs and everything in the box -- Power and Color Select technology, built-in photocell, and 2 mounts.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

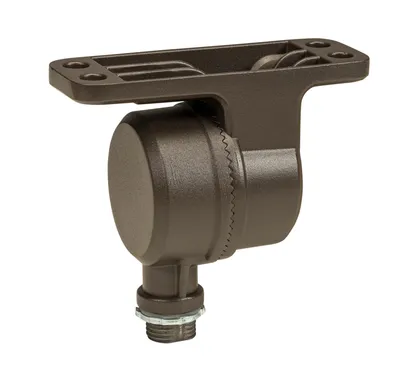

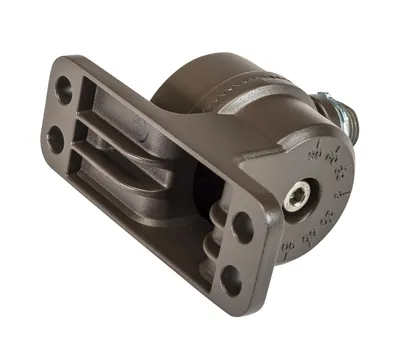

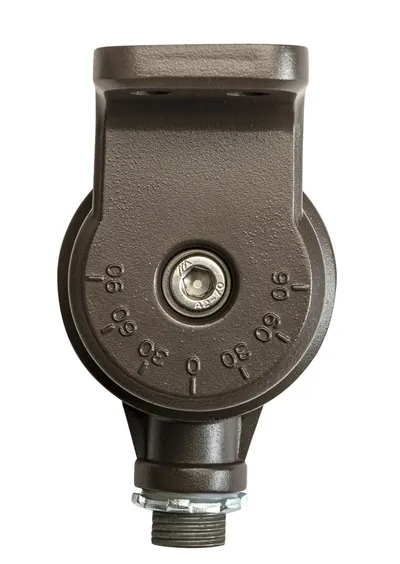

 | KT-FLED-KM-1-KIT | Knuckle mount for 75W and 100W Rectangular Series 1 LED Flood Light | — | — | — | — | — | Bronze | — | Call for pricing | ||

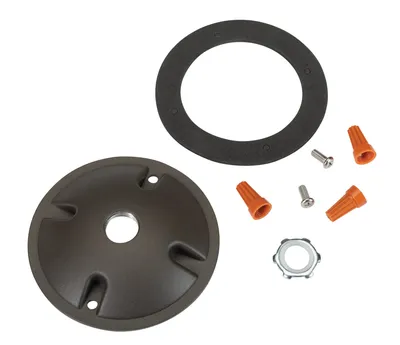

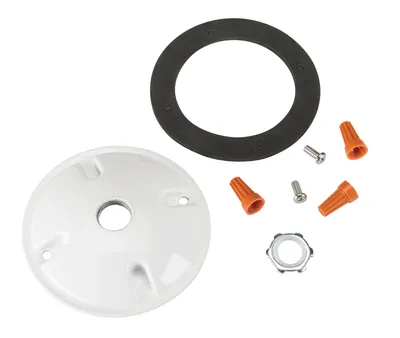

 | KT-FLED-RC-4 | Round Cover Plate for mounting Flood Lights on 4" Round boxes. Includes Mounting Hardware. Standard Bronze Color | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-FLED-RC-4-W | Round Cover Plate for mounting Flood Lights on 4" Round boxes. Includes Mounting Hardware. White Color | — | — | — | — | — | White | — | Call for pricing | ||

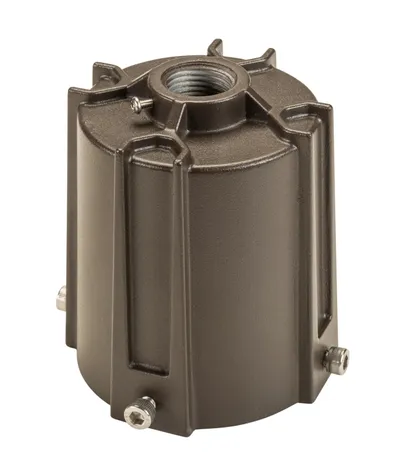

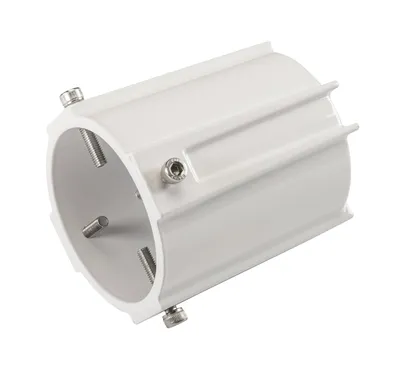

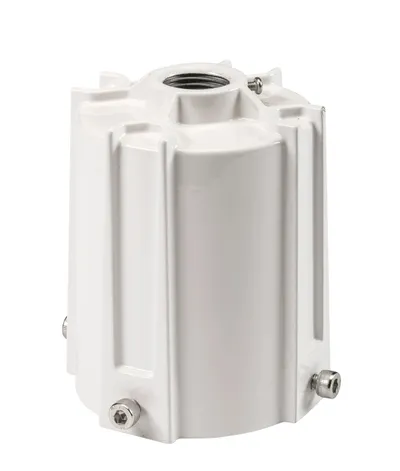

 | KT-FLED-SF-1-KIT | Slip Fitter Mount Adaptor for 15W, 35W, and 60W Rectangular Series 1 LED Flood Light. Bronze | — | — | — | — | — | Bronze | — | Call for pricing | ||

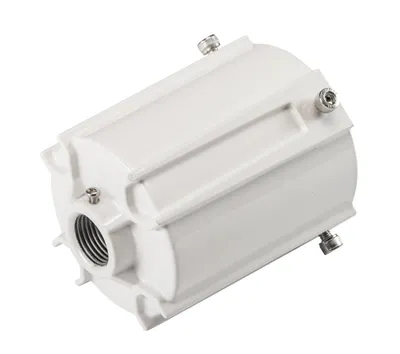

 | KT-FLED-SF-1-KIT-W | Slip Fitter Mount Adaptor for 15W, 35W, and 60W Rectangular Series 1 LED Flood Light. White. | — | — | — | — | — | White | — | Call for pricing | ||

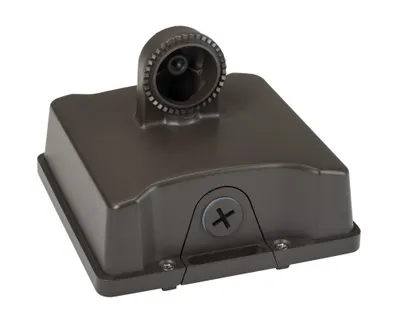

 | KT-FLED-SM-1-KIT | Surface Mount / Wall Mount Kit for Series 1 Flood Lights. Fits 15W thru 60W fixtures. Includes Mounting Hardware. Standard Bronze Housing | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-FLED-SM-1-KIT-W | Surface Mount / Wall Mount Kit for Series 1 Flood Lights. Fits 15W thru 60W fixtures. Includes Mounting Hardware. White Housing. | — | — | — | — | — | White | — | Call for pricing | ||

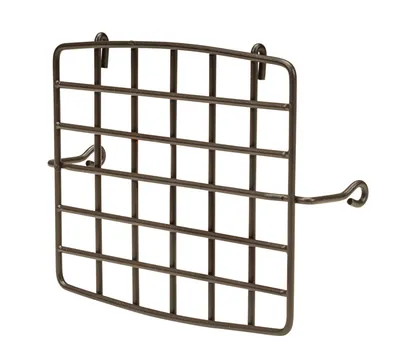

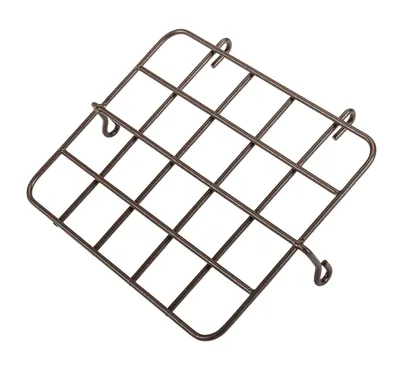

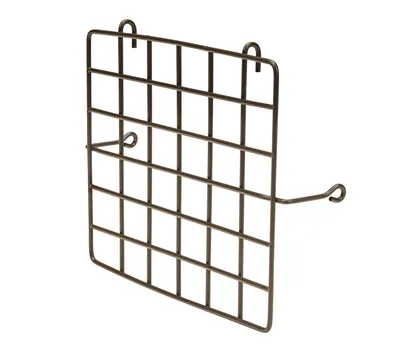

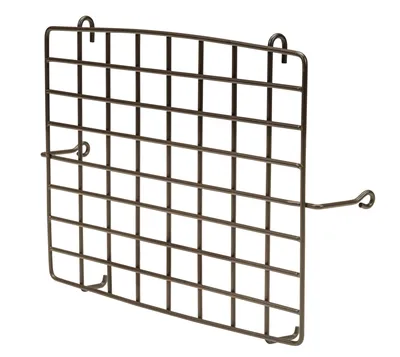

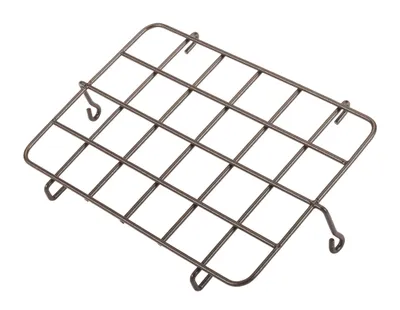

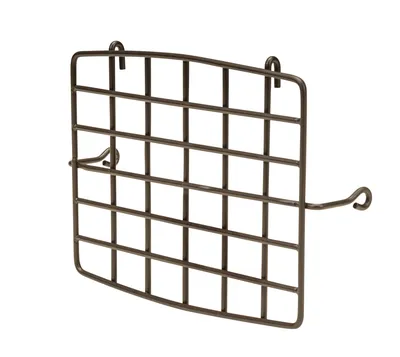

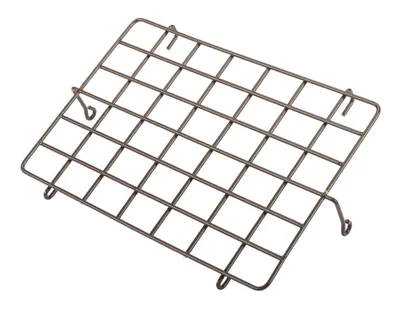

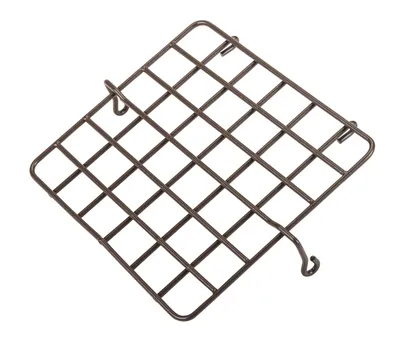

 | KT-FLED-WG-1-KIT | Wire guard for 15W Rectangular Series 1 LED Flood Light | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-FLED-WG-2-KIT | Wire guard for 35W Rectangular Series 1 LED Flood Light | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-FLED-WG-3-KIT | Wire guard for 60W Rectangular Series 1 LED Flood Light | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-FLED-WG-4-KIT | Wire guard for 75W and 100W Rectangular Series 1 LED Flood Light | — | — | — | — | — | Bronze | — | Call for pricing | ||
 | KT-FLED-WG-R4-1-KIT | Wire guard | Bronze | Used on 15W Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-FLED-WG-R4-2-KIT | Wire guard | Bronze | Used on 35W Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-FLED-WG-R4-3-KIT | Wire guard | Bronze | Used on 75W and 100W Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-FLED-WG-R4-4-KIT | Wire guard | Bronze | Used on 75W and 100W Series 4 LED Floodlight | — | — | — | — | — | — | — | Call for pricing | ||

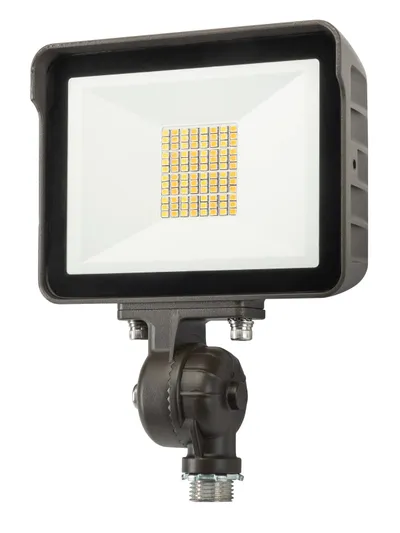

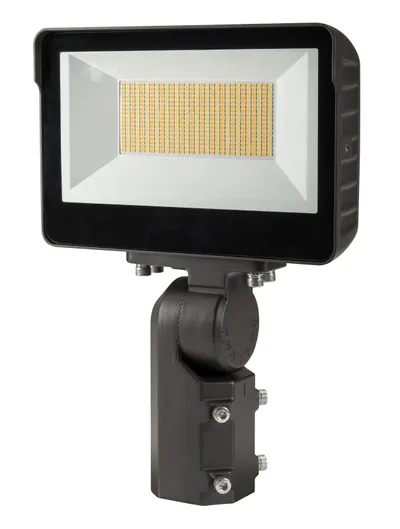

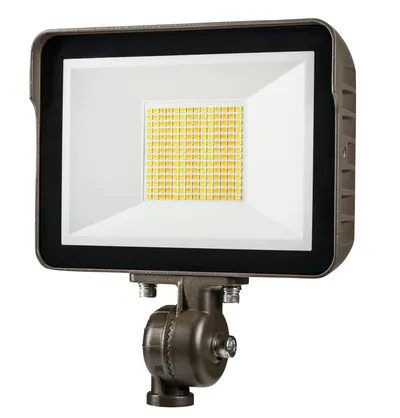

 | KT-FLED15-R1A-UNV-8CSB-VDIM /TAA | 15W LED Flood Light feat. Color Select, Rectangular Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Standard Bronze Housing. Wide Beam Spread, Universal Mount (1/2in Knuckle Mount with Yoke Mount option included) Dimmable. TAA compl | — | — | 3000K/4000K/5000K | — | — | — | — | Call for pricing | ||

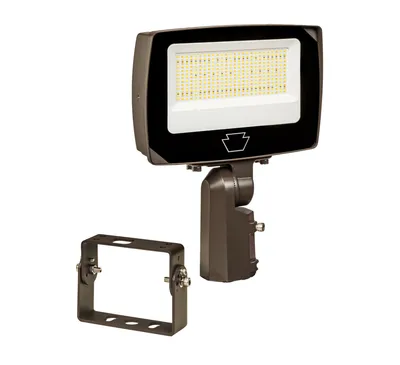

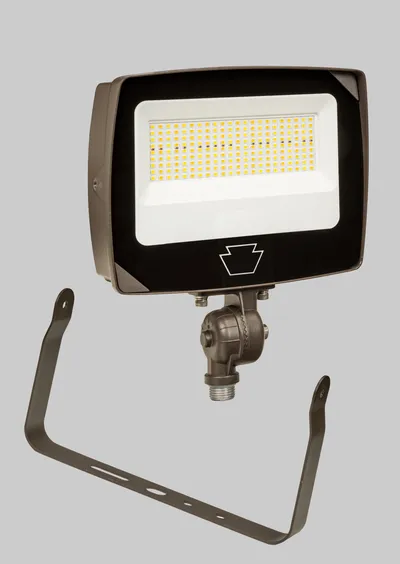

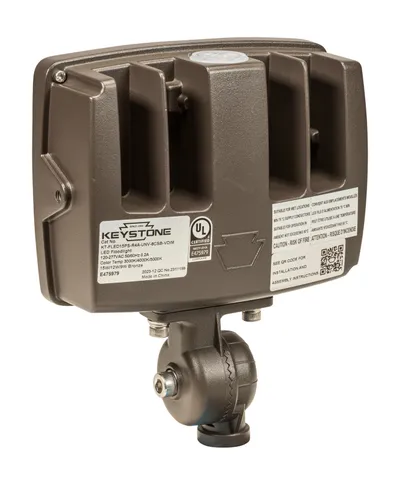

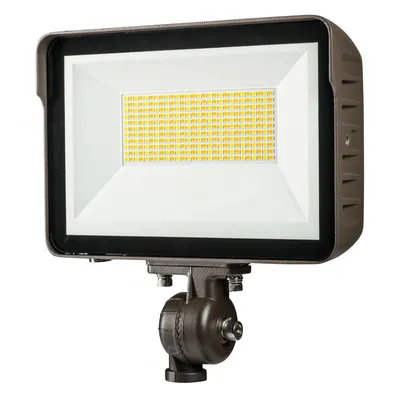

 | KT-FLED15PS-R4A-UNV-8CSB-VDIM | 15/12/9W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard Bronze Housing. Wide Flood, 7H x 7W Distribution. Knuckle and Yoke Mounts Included. | 9/12/15W | 1,332/1,716/2,100 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||

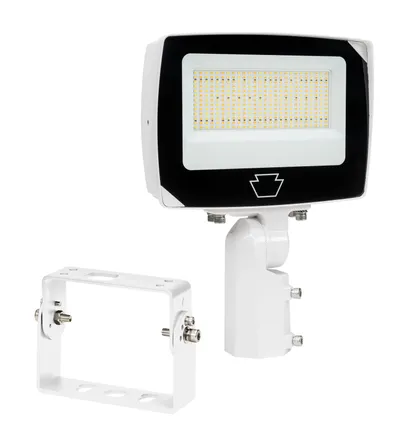

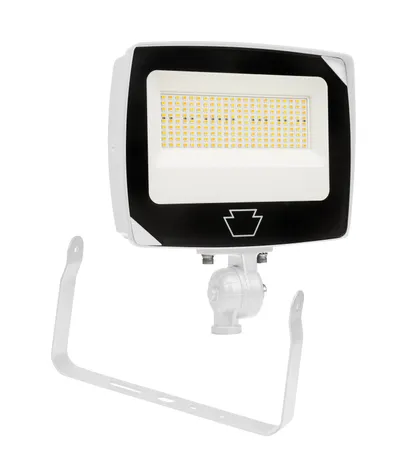

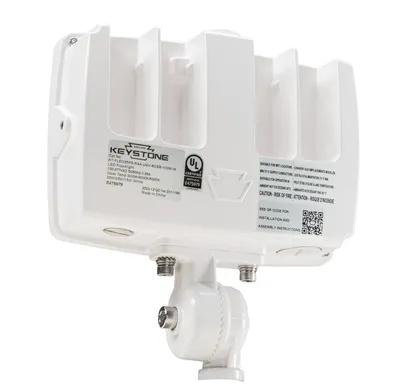

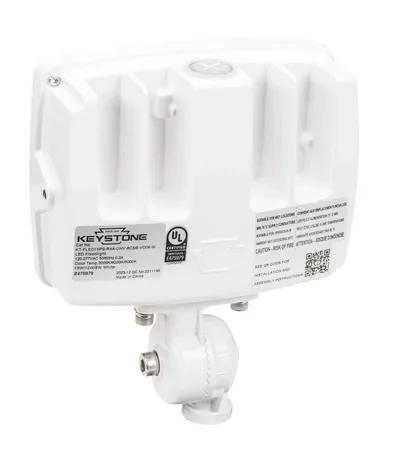

 | KT-FLED15PS-R4A-UNV-8CSB-VDIM-W | 15/12/9W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard White Housing. Wide Flood, 7H x 7W Distribution. Knuckle and Yoke Mounts Included. | 9/12/15W | — | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED35-R1A-UNV-8CSB-VDIM /TAA | 35W LED Flood Light feat. Color Select, Rectangular Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Standard Bronze Housing. Wide Beam Spread, Universal Mount (1/2in Knuckle Mount with Yoke Mount option included) Dimmable. TAA compli | 35W | 4,900 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-FLED35PS-R4A-UNV-8CSB-VDIM | 35/25/15W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard Bronze Housing. Wide Flood, 7H x 7W Distribution. Knuckle and Yoke Mounts Included. | 15/25/35W | 2,250/3,625/4,900 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-FLED35PS-R4A-UNV-8CSB-VDIM-W | 35/25/15W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard White Housing. Wide Flood, 7H x 7W Distribution. Knuckle and Yoke Mounts Included. | 15/25/35W | — | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED60-R1A-UNV-8CSB-VDIM /TAA | 60W LED Flood Light feat. Color Select, Rectangular Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Standard Bronze Housing. Wide Beam Spread, Universal Mount (1/2in Knuckle Mount with Yoke Mount option included) Dimmable. TAA compli | 60W | 8,040 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-FLED60PS-R4A-UNV-8CSB-VDIM | 60/50/40W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard Bronze Housing. Wide Flood, 7H x 7W Distribution. Knuckle and Yoke Mounts Included. | 40/50/60W | 6,000/7,250/8,400 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-FLED60PS-R4A-UNV-8CSB-VDIM-W | 60/50/40W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard White Housing. Wide Flood, 7H x 7W Distribution. Knuckle and Yoke Mounts Included. | 40/50/60W | — | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED75PS-R4A-UNV-8CSB-VDIM | 75/60/45W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard Bronze Housing. Wide Flood, 7H x 7W Distribution. Slip Fitter and Trunnion Mounts Included. | 45/60/75W | 6,840/8,880/10,500 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||

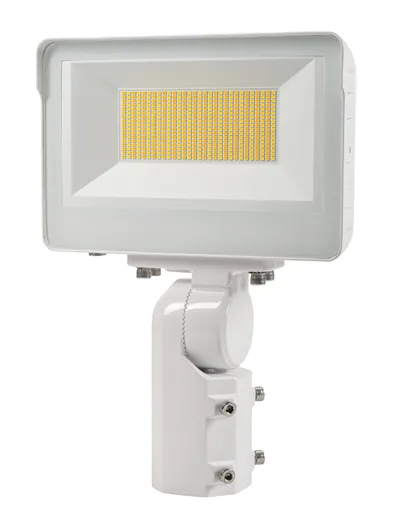

 | KT-FLED75PS-R4A-UNV-8CSB-VDIM-W | 75/60/45W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard White Housing. Wide Flood, 7H x 7W Distribution. Slip Fitter and Trunnion Mounts Included. | 45/60/75W | — | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-FLED100-R1A-UNV-8CSB-VDIM /TAA | 100W LED Flood Light feat. Color Select, Rectangular Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Standard Bronze Housiing. Wide Beam Spread, Slip Fitter Mount. TAA compliant | 100W | 13,400 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
 | KT-FLED100-R1A-UNV-8CSB-VDIM-W | 100W LED Flood Light feat. Color Select, Rectangular Series 1 with built in photocell. 120-277V Input, 3000K/4000K/5000K. Standard White Housing. Wide Beam Spread, Slip Fitter Mount | 100W | 13,400 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| KT-FLED100PS-R4A-UNV-8CSB-VDIM | 100/90/80W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard Bronze Housing. Wide Flood, 7H x 7W Distribution. Slip Fitter and Trunnion Mounts Included. | 80/90/100W | 12,000/13,050/14,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Bronze | Premium | Call for pricing | ||
| KT-FLED100PS-R4A-UNV-8CSB-VDIM-W | 100/90/80W LED Flood Light feat. Power Select & Color Select. Rectangular Series 4 with Built-in Photocell. 120-277V Input. 3000/4000/5000K. Standard White Housing. Wide Flood, 7H x 7W Distribution. Slip Fitter and Trunnion Mounts Included. | 80/90/100W | — | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||

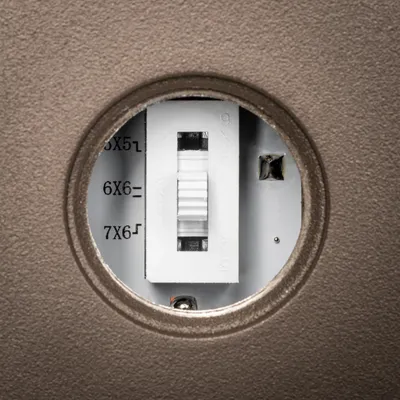

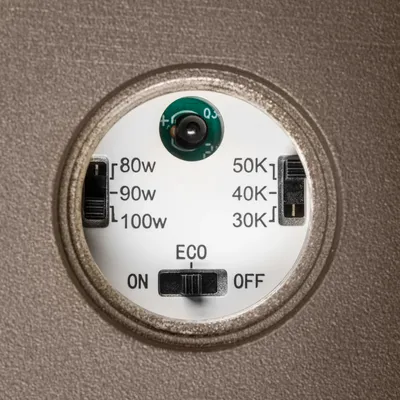

 | KT-FLED100PS-R5-ESO1-UNV-8CSB-VDIM | 100W LED Floodlight with OpticSwitch and NightTrim Photocell | Power Select 100/90/80W | Color Select 30/40/50K | 120-277V Input | 0-10V Dimmable | Bronze Housing | 80/90/100W | 13,540/14,480/15,020 lm | 3000K/4000K/5000K | 120–277V | — | Bronze | — | Call for pricing |
