Keystone Technologies

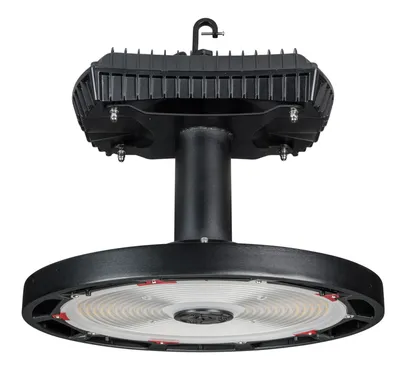

High Bays – Round – General Purpose
With wireless compatibility, Optic Swap and field-adjustable options, and reliability, Keystone round LED high bays offer versatility, energy savings, and installation convenience.
43 part numbers · Indoor
- Wattage
- 50–400W
- Lumens
- 7,500–58,000 lm
- Color temperature
- 3000K, 4000K, 5000K
- Voltage
- 120–277V, 277–480V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- Black, White
- DLC
- DLC Premium
- Warranty
- 5–10 years
Overview
With wireless compatibility, Optic Swap and field-adjustable options, and reliability, Keystone round LED high bays offer versatility, energy savings, and installation convenience. Compatible with Keystone’s SmartLoop wireless control system.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

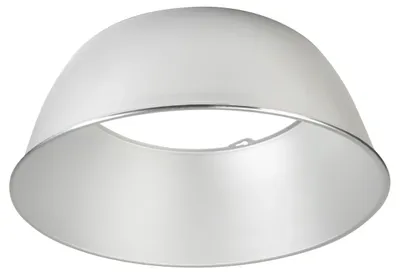

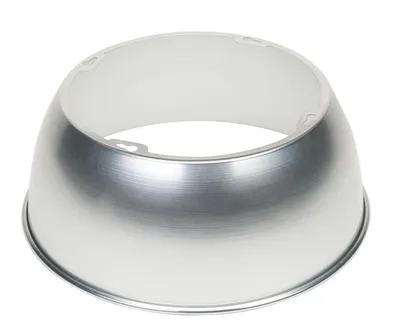

 | KT-RHLED-AR90-1-KIT /G2 | Aluminum reflector kit for 100W and 150W KT-RHLED /G2 fixtures, 90deg beam angle. | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RHLED-AR90-2-KIT /G2 | Aluminum reflector kit for 200W KT-RHLED /G2 fixtures, 90deg beam angle. | — | — | — | — | — | — | — | Call for pricing | ||
| KT-RHLED-AR90-3-KIT /G2 | Aluminum reflector kit for 400W KT-RHLED fixtures, 90deg beam angle. Includes dome and hardware. | — | — | — | — | — | — | — | Call for pricing | ||

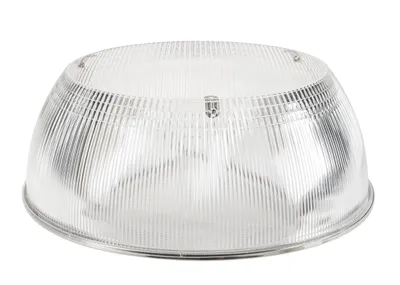

 | KT-RHLED-CL90-1-KIT /G2 | Clear Polycarbonate Dome Reflector kit for 100W and 150W KT-RHLED /G2 fixtures, 90deg beam angle. Includes dome, bottom lens, and mounting hardware. | — | — | — | — | — | — | — | Call for pricing | ||
| KT-RHLED-CL90-2-KIT /G2 | Clear Polycarbonate Dome Reflector kit for 200W KT-RHLED /G2 fixtures, 90deg beam angle. Includes dome, bottom lens, and mounting hardware. | — | — | — | — | — | — | — | Call for pricing | ||
| KT-RHLED-CL90-3-KIT /G2 | Clear Polycarbonate Dome Reflector kit for 400W KT-RHLED /G2 fixtures, 90deg beam angle. Includes dome, bottom lens, and mounting hardware. | — | — | — | — | — | — | — | Call for pricing | ||

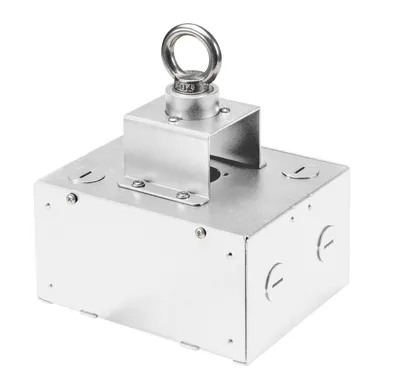

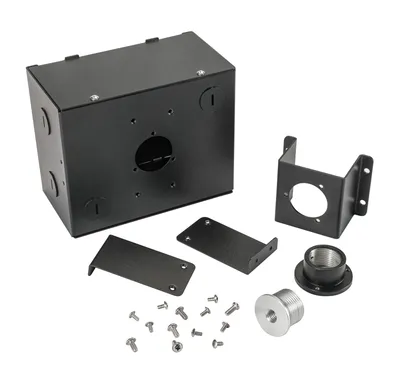

 | KT-RHLED-JBOX-PM /G2 | Junction box optimized for pole pendant application for KT-RHLED /G2 fixtures. | — | — | — | — | — | Black | — | Call for pricing | ||

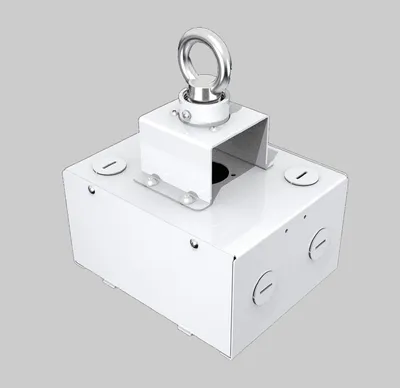

 | KT-RHLED-JBOX-PM-W /G2 | Junction box optimized for pole pendant application for KT-RHLED /G2 fixtures. White. | — | — | — | — | — | White | — | Call for pricing | ||

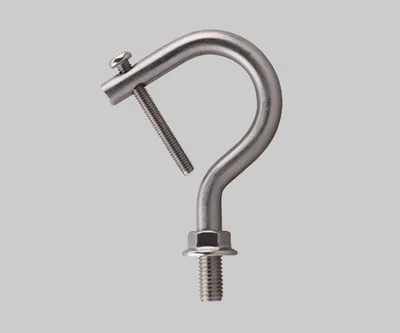

 | KT-RHLED-JHOOK | J-Hook for RH-LED /G2 and PS/CS Fixtures. M10*1.5 | — | — | — | — | — | — | — | Call for pricing | ||

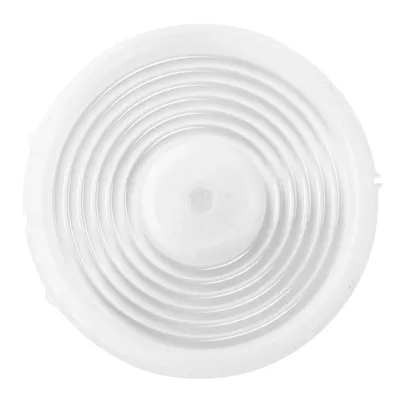

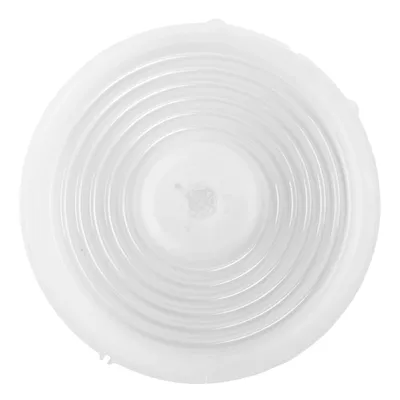

 | KT-RHLED-LENS-12CD-60 | 60 deg lens for Optic Swap Round Highbays | 12 inch diamter | Series D form factor | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RHLED-LENS-14CD-120 | 120 deg lens for Optic Swap Round Highbays | 14 inch diamter | Series D form factor | — | — | — | — | — | — | — | Call for pricing | ||
| KT-RHLED-LENS-14CD-60 | 60 deg lens for Optic Swap Round Highbays | 14 inch diamter | Series D form factor | — | — | — | — | — | — | — | Call for pricing | ||

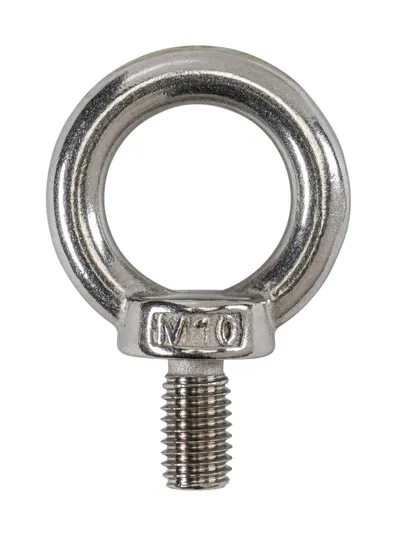

 | KT-RHLED-ORING | SOLD FOR REPLACEMENT PURPOSES ONLY. Replacement O-Ring bolt for KT-RHLED fixtures, M10 * 1.5 | — | — | — | — | — | — | — | Call for pricing | ||

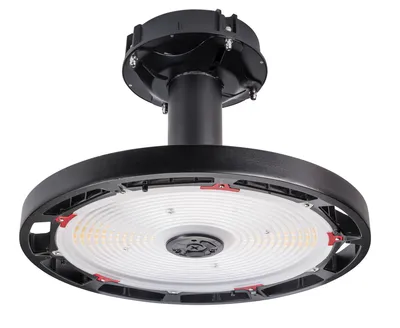

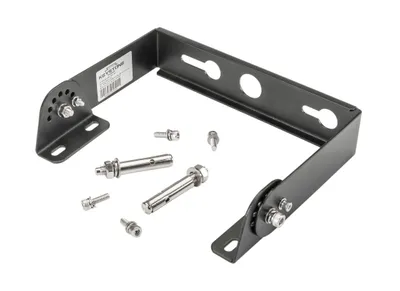

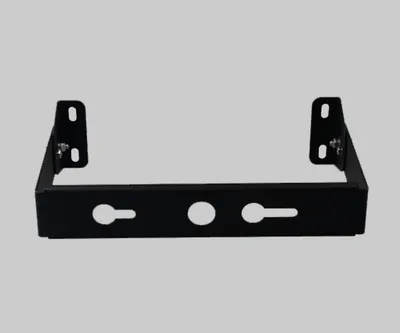

 | KT-RHLED-SM-1-KIT /G2 | Surface mount kit for 100W and 150W KT-RHLED /G2 fixtures, Includes mounting hardware. | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-RHLED-SM-1-KIT-W /G2 | Surface mount kit for 100W and 150W KT-RHLED /G2 fixtures, Includes mounting hardware. White. | — | — | — | — | — | White | — | Call for pricing | ||
| KT-RHLED-SM-2-KIT /G2 | Surface mount kit for 200W KT-RHLED /G2 fixtures, Includes mounting hardware. | — | — | — | — | — | Black | — | Call for pricing | ||
 | KT-RHLED-SM-2-KIT-W /G2 | Surface mount kit for 200W KT-RHLED /G2 fixtures, Includes mounting hardware. White. | — | — | — | — | — | White | — | Call for pricing | ||
 | KT-RHLED-SM-3-KIT /G2 | Surface Mount Kit for Round Highbay Fixtures. Fits 400W Round Highbay fixture. Includes mounting hardware | — | — | — | — | — | Black | — | Call for pricing | ||

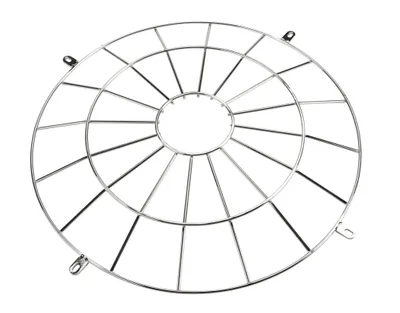

 | KT-RHLED-WG-1-KIT /G2 | Wire guard kit for 100W and 150W KT-RHLED /G2 fixtures. Includes mounting hardware. | — | — | — | — | — | — | — | Call for pricing | ||
| KT-RHLED-WG-2-KIT /G2 | Wire guard kit for 200W KT-RHLED /G2 fixtures. Includes mounting hardware. | — | — | — | — | — | — | — | Call for pricing | ||
| KT-RHLED-WG-3-KIT /G2 | Wire Guard Kit for Round Highbay Fixtures. Fits 400W Round Highbay fixture. Includes mounting hardware | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RHLED150PS-12C-8CSB-VDIM-P /TAA | Round Highbay Fixture feat. Power Select & Color Select | 150W /100W/70W, 120-277V Input,3000K/4000K/5000K, 0-10V Dimming. Built in sensor receptacle. TAA compliant | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RHLED200PS-14C-8CSB-VDIM-P /TAA | Round Highbay Fixture feat. Power Select & Color Select, 200W/150W/100W, 120-277V, 3000K/4000K/5000K, 0-10V Dimming, Built in sensor receptable. TAA compliant | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RHLED400PS-18C-8CSD-VDIM-P /TAA | Round Highbay Fixture feat. Power Select & Color Select 400W /320W/240W, 120-277V Input, 4000K/5000K, 0-10V Dimming. Built in sensor receptacle. 60C Ambient Rated. TAA compliant | — | — | — | — | — | — | — | Call for pricing | ||
 | KT-RHLED400PSHV-18C-8CSD-VDIM-P /TAA | Round Highbay Fixture feat. Power Select & Color Select 400W /320W/240W, 277-480V Input, 4000K/5000K, 0-10V Dimming. Built in sensor receptacle. 60C Ambient Rated. TAA compliant | — | — | — | — | — | — | — | Call for pricing | ||

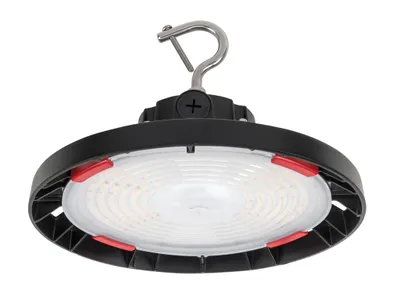

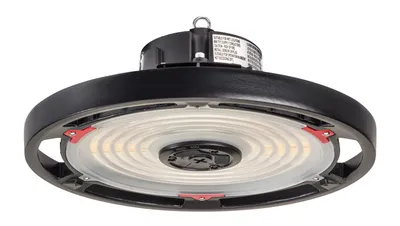

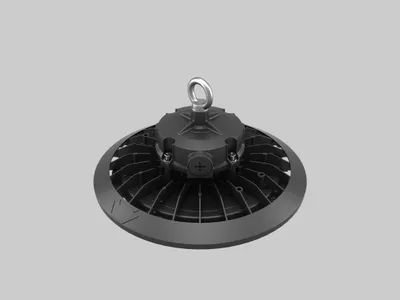

 | KT-RHLED100PS-11C-8CSB-VDIM /G2 | 100W Power & Color Selectable Round Highbay Gen 2 |100W/70W/50W | 90 deg lens | 11-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black housing | J-Hook Included | 50/70/100W | 7,500/10,290/14,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||

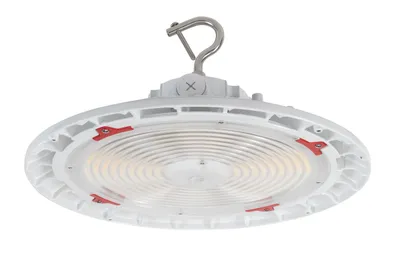

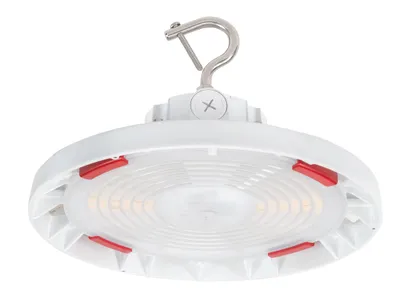

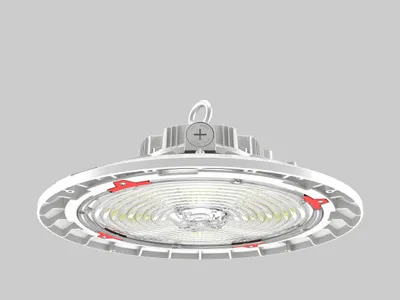

 | KT-RHLED100PS-11C-8CSB-VDIM-W /G2 | 100W Power & Color Selectable Round Highbay Gen 2 |100W/70W/50W | 90 deg lens | 11-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | White housing | O-Bolt & J-Hook Included | 50/70/100W | 7,500/10,290/14,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||

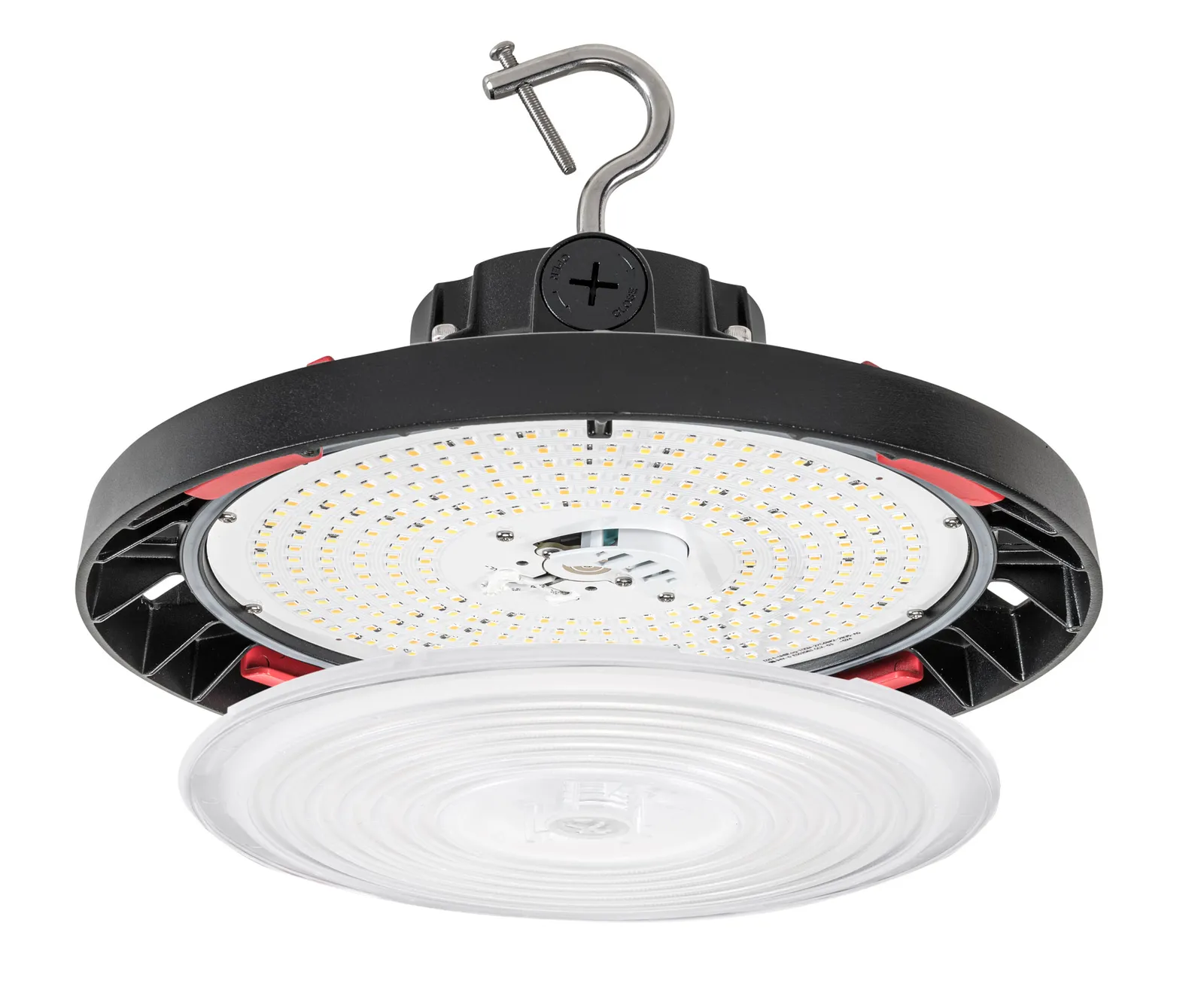

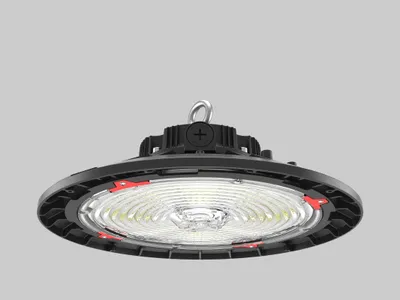

 | KT-RHLED100PS-12CD-OSD-8CSB-VDIM-P | 100W Power & Color Selectable Round Highbay with Optic Swap |100W/70W/50W | Includes (2) lens types, Standard 90 deg and Wide Angle 120 deg | 12-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black hous | 50/70/100W | 7,500/10,290/14,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||

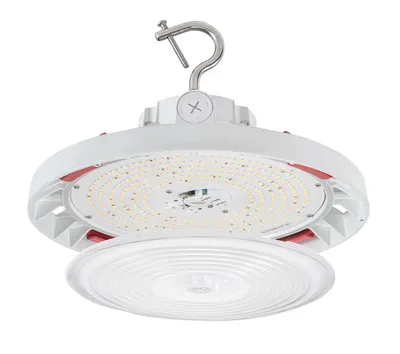

 | KT-RHLED100PS-12CD-OSD-8CSB-VDIM-P-W | 100W Power & Color Selectable Round Highbay with Optic Swap |100W/70W/50W | Includes (2) lens types, Standard 90 deg and Wide Angle 120 deg | 12-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | White housing |O-Bo | 50/70/100W | 7,500/10,290/14,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| KT-RHLED150PS-11C-8CSB-VDIM /G2 | 150W Power & Color Selectable Round Highbay Gen 2 |150W/100W/70W | 90 deg lens | 11-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black housing |O-Bolt & J-Hook Included | 70/100/150W | 10,780/14,700/21,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| KT-RHLED150PS-11C-8CSB-VDIM-W /G2 | 150W Power & Color Selectable Round Highbay Gen 2 |150W/100W/70W | 90 deg lens | 11-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | White housing |O-Bolt & J-Hook Included | 70/100/150W | 10,780/14,700/21,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-RHLED150PS-12CD-OSD-8CSB-VDIM-P | 150W Power & Color Selectable Round Highbay with Optic Swap |150W/100W/70W | Includes (2) lens types, Standard 90 deg and Wide Angle 120 deg | 12-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black hou | 70/100/150W | 10,780/14,700/21,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | KT-RHLED150PS-12CD-OSD-8CSB-VDIM-P-W | 150W Power & Color Selectable Round Highbay with Optic Swap |150W/100W/70W | Includes (2) lens types, Standard 90 deg and Wide Angle 120 deg | 12-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | White housing | O- | 70/100/150W | 10,780/14,700/21,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
 | KT-RHLED200PS-12C-8CSB-VDIM /G2 | 200W Power & Color Selectable Round Highbay Gen 2 |200W/150W/100W | 90 deg lens | 12-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black housing | J-Hook Included | 100/150/200W | 15,400/22,050/28,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | KT-RHLED200PS-12C-8CSB-VDIM-W /G2 | 200W Power & Color Selectable Round Highbay Gen 2 |200W/150W/100W | 90 deg lens | 12-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | White housing | O-Bolt & J-Hook Included | 100/150/200W | 15,400/22,050/28,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P | 200W Power & Color Selectable Round Highbay with Optic Swap |200W/150W/100W | Includes (2) lens types, Standard 90 deg and Wide Angle 120 deg | 14-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black ho | 100/150/200W | 15,400/22,050/28,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| KT-RHLED200PS-14CD-OSD-8CSB-VDIM-P-W | 200W Power & Color Selectable Round Highbay with Optic Swap |200W/150W/100W | Includes (2) lens types, Standard 90 deg and Wide Angle 120 deg | 14-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | White housing | O | 100/150/200W | 15,400/22,050/28,000 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| KT-RHLED200PSHV-14CD-OSD-8CSB-VDIM-P | 200W Power & Color Selectable Round Highbay with Optic Swap |200W/150W/100W | Includes (2) lens types, Standard 90 deg and Wide Angle 120 deg |14-inch diameter |277-480V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black hou | 100/150/200W | 29,400/30,800/33,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| KT-RHLED240PS-13C-8CSB-VDIM /G2 | 240W Power & Color Selectable Round Highbay Gen 2 |240W/200W/150W | 90 deg lens | 13-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black housing | O-Bolt & J-Hook Included | 150/200/240W | 29,400/30,800/33,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
 | KT-RHLED240PS-13C-8CSB-VDIM-W /G2 | 240W Power & Color Selectable Round Highbay Gen 2 |240W/200W/150W | 90 deg lens | 13-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | White housing | O-Bolt & J-Bolt Included | 150/200/240W | 29,400/30,800/33,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | White | Premium | Call for pricing | ||
| KT-RHLED240PS-14CD-OSE-8CSB-VDIM-P | 240W Power & Color Selectable Round Highbay with Optic Swap |240W/200W/150W | Includes (2) lens types, Standard 90 deg and Narrow Angle 60 deg | 14-inch diameter |120-277V | 3000K/4000K/5000K | 0-10V Dimming | Built-in sensor receptacle | Standard black h | 150/200/240W | 29,400/30,800/33,600 lm | 3000K/4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||

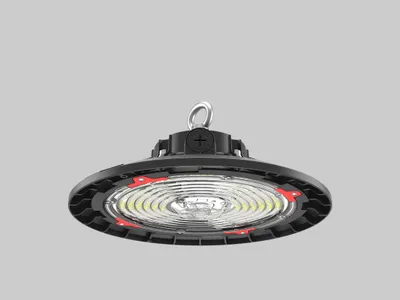

| KT-RHLED400PS-18C-8CSD-VDIM-P | Round Highbay Fixture feat. Power Select & Color Select | 400W /320W/240W, 120-277V Input, 4000K/5000K, 0-10V Dimming. Built in sensor receptacle. 60C Ambient Rated. | 240/320/400W | 34,800/46,400/58,000 lm | 4000K/5000K | 120–277V | 0-10V | Black | Premium | Call for pricing | ||
| KT-RHLED400PSHV-18C-8CSD-VDIM-P | Round Highbay Fixture feat. Power Select & Color Select 400W /320W/240W, 277-480V Input, 4000K/5000K, 0-10V Dimming. Built in sensor receptacle. Up to 60°C Ambient. | 240/320/400W | 34,800/46,400/58,000 lm | 4000K/5000K | 277–480V | 0-10V | Black | — | Call for pricing |
Downloads
- Spec sheetPDF
- Installation guidePDF
- IES fileKT-RHLED100PS-12CD-OSD-8CSB-VDIM-P_IES.zip
- IES fileKT-RHLED100PS-11C-8CSB-VDIM-G2_IES.zip
- IES fileKT-RHLED100PS-11C-8CSB-VDIM--aG2Setting-at-3000K-277V-7.ies
- IES fileKT-RHLED150PS-12CD-OSD-8CSB-VDIM-P_IES.zip
- IES fileKT-RHLED150PS-12CD-OSX-830-VDIM-P-a60-120V-3.ies
- IES fileKT-RHLED150PS-11C-8CSB-VDIM-G2_IES.zip
- IES fileKT-RHLED150PS-11C-8CSB-VDIM-a-G2Setting-at-3000K-277V-7.ies
- IES fileKT-RHLED200PS-14CD-OSD-8CSB-VDIM-P_IES.zip
- IES fileKT-RHLED200PS-14CD-OSX-830-VDIM-P-a60-120V-2.ies
- IES fileKT-RHLED200PS-12C-8CSB-VDIM-G2_IES.zip
- IES fileKT-RHLED200PS-12C-8CSB-VDIM-a-G2Setting-at-3000K-277V-9.ies
- IES fileKT-RHLED240PS-13C-8CSB-VDIM-G2_IES.zip
- IES fileKT-RHLED240PS-14CD-OSE-8CSB-VDIM-P_IES.zip
- IES fileKT-RHLED240PS-13C-8CSB-VDIM-a-G2Setting-at-3000K-277V-9.ies
- IES fileKT-RHLED400PS-18C-8CSD-VDIM-P_IES.zip
- IES fileKT-RHLED400PSHV-18C-840-VDIM-P-YSetting-at-4000K-480V-8.ies
- IES fileKT-RHLED200PSHV-14CD-OSD-8CSB-VDIM-P_IES.zip
- IES fileKT-RHLED150PS-12C-8CSB-VDIM-P_IES.zip
- IES fileKT-RHLED200PS-14C-8CSB-VDIM-P_IES.zip
- IES fileKT-RHLED400PSHV-18C-8CSD-VDIM-P_IES.zip
