Panels & Troffers – Back-lit Flat Panel

1 / 24

Keystone Technologies

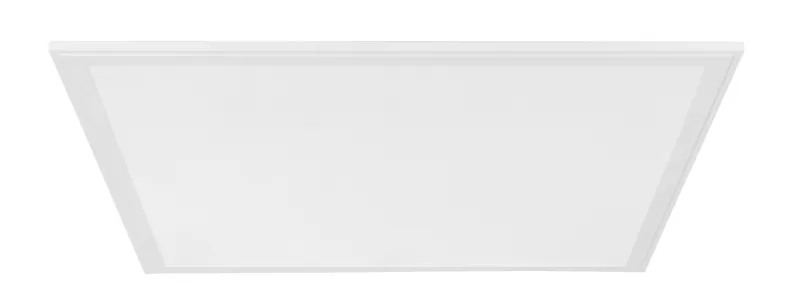

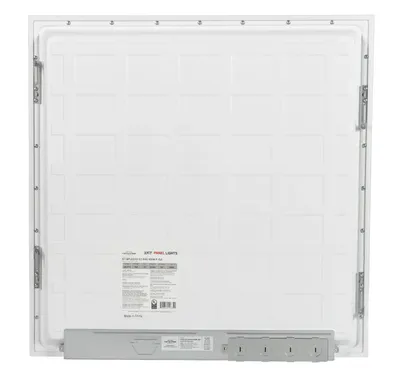

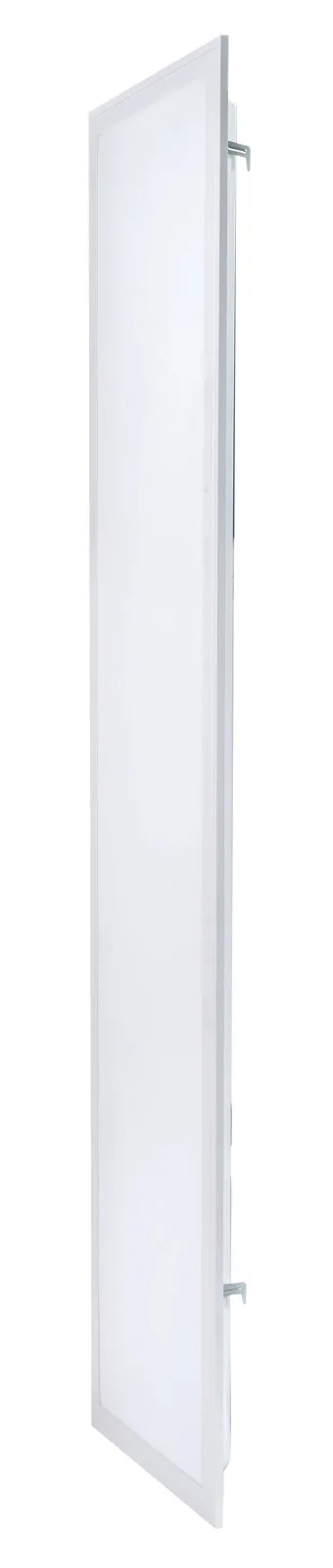

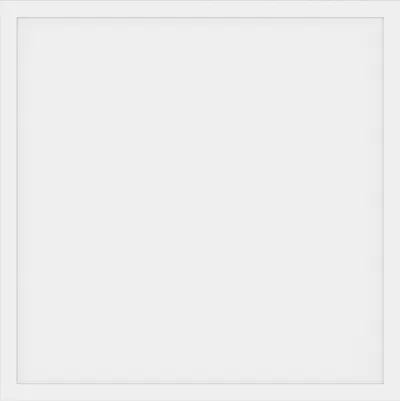

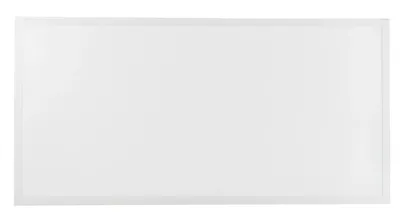

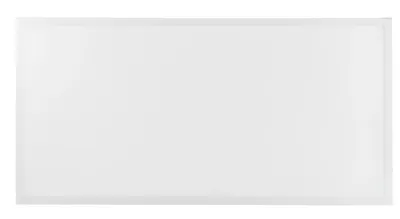

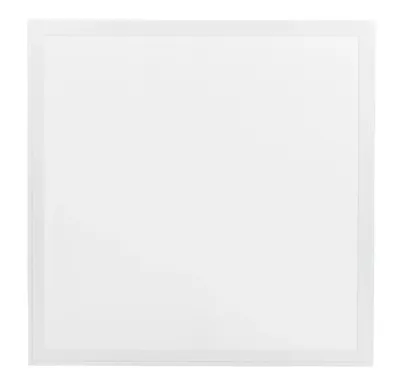

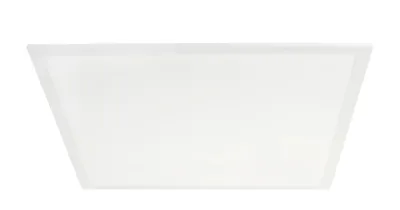

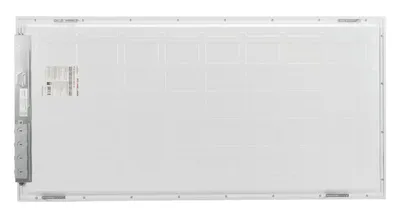

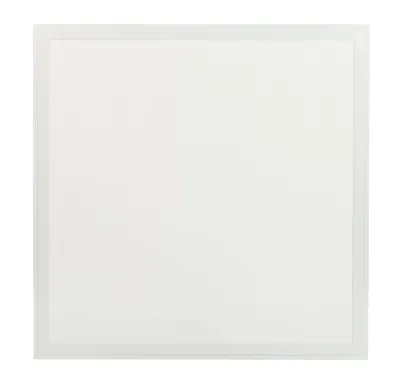

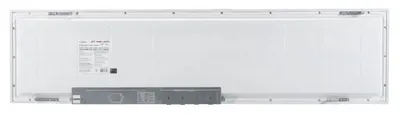

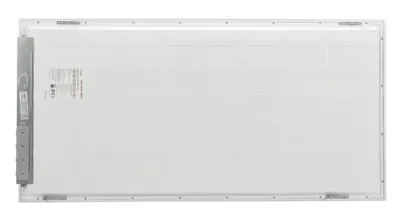

Panels & Troffers – Back-lit Flat Panel

A robust, easy-to-install solution, available in multiple sizes with different mounting capabilities and embedded with SmartLoop wireless controls.

29 part numbers · Indoor

Wattage
20–60W
Lumens
2,280–8,000 lm
Color temperature
3500K, 4000K, 5000K
Voltage
120–277V
Dimming
0-10V
CRI
80+
Finish
White
DLC
DLC Premium, DLC Listed
Warranty
5–10 years
Request a QuoteSpec sheet678-467-5515

Overview

A robust, easy-to-install solution, available in multiple sizes with different mounting capabilities and embedded with SmartLoop wireless controls.

Part numbers & ordering

Part #DescriptionWattsLumensCCTVoltageDimmingFinishDLCPriceAdd to cartCompare

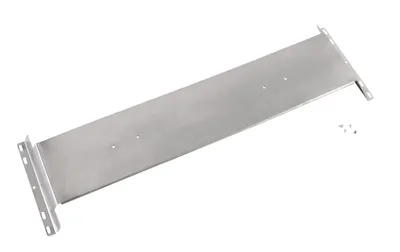

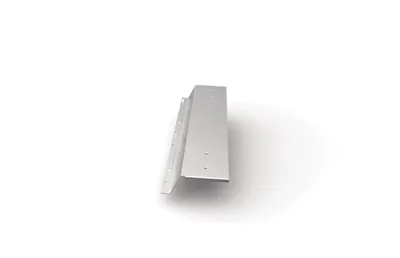

KT-BPLED-EM-14-KITEmergency LED Backup Mounting Kit for 1x4 Keystone Backlit Panels. Includes Bracket and mounting hardware.———————Call for pricing
KT-BPLED-EM-22/4-KITEmergency LED Backup Mounting Kit for 2x2 & 2x4 Keystone Backlit Panels. Includes Bracket and mounting hardware.———————Call for pricing

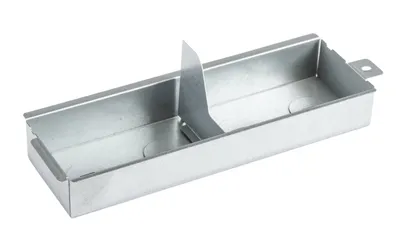

KT-BPLED-JBOX-1Larger J-Box add-on for LED backlit Panels, DLC Standard type———————Call for pricing
KT-BPLED20-22-835-VDIM-P /G22x2 LED Panel, 20W, 120-277V Input, 3500K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.20W2,500 lm3500K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED20-22-840-VDIM-P /G22x2 LED Panel, 20W, 120-277V Input, 4000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.20W2,500 lm4000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-14-835-VDIM-P /G21x4 LED Panel, 30W, 120-277V Input, 3500K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm3500K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-14-840-VDIM-P /G21x4 LED Panel, 30W, 120-277V Input, 4000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm4000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-14-850-VDIM-P /G21x4 LED Panel, 30W, 120-277V Input, 5000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm5000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-22-835-VDIM-P /G22x2 LED Panel, 30W, 120-277V Input, 3500K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm3500K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-22-840-VDIM-P /G22x2 LED Panel, 30W, 120-277V Input, 4000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm4000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-22-850-VDIM-P /G22x2 LED Panel, 30W, 120-277V Input, 5000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm5000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-24-835-VDIM-P /G22x4 LED Panel, 30W, 120-277V Input, 3500K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm3500K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-24-840-VDIM-P /G22x4 LED Panel, 30W, 120-277V Input, 4000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm4000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED30-24-850-VDIM-P /G22x4 LED Panel, 30W, 120-277V Input, 5000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.30W3,750 lm5000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED35PS-14E-8CSA-VDIM /FC51x4 LED Panel | Power Select & Color Select | Embedded Smartloop PIR Sensor | 35/30/20W | 3500/4000/5000K | 120-277V Input | 0-10V Dimming | Backlit Design | Seies E Construction20/30/35W2,280/3,360/3,850 lm3500K/4000K/5000K120–277V—White—Call for pricing
KT-BPLED35PS-22E-8CSA-VDIM /FC52x2 LED Panel | Power Select & Color Select | Embedded Smartloop PIR Sensor | 35/30/20W | 3500/4000/5000K | 120-277V Input | 0-10V Dimming | Backlit Design | Series E Construction20/30/35W2,280/3,360/3,850 lm3500K/4000K/5000K120–277V—White—Call for pricing
KT-BPLED40-14-840-VDIM1x4 LED Panel, 40W, 120-277V Input, 4000K, 0-10V Dimming, Backlit Design40W4,400 lm4000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED40-24-835-VDIM-P /G22x4 LED Panel, 40W, 120-277V Input, 3500K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.40W5,000 lm3500K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED40-24-840-VDIM-P /G22x4 LED Panel, 40W, 120-277V Input, 4000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.40W5,000 lm4000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED40-24-850-VDIM-P /G22x4 LED Panel, 40W, 120-277V Input, 5000K, 0-10V Dimming, Backlit Design. UGR <19 Premium Series. Generation 2.40W5,000 lm5000K120–277V0-10VWhitePremiumCall for pricing
KT-BPLED40PS-14-8CSA-VDIM /G21x4 LED Panel feat. Power Select & Color Select. 40/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 220/30/40W2,500/3,500/4,500 lm3500K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED40PS-14-8CSA-VDIM /G3/TAA1x4 LED Panel feat. Power Select & Color Select. 40/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 3. TAA Compliant20/30/40W2,500/3,750/5,000 lm3500K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED40PS-22-8CSA-VDIM /G22x2 LED Panel feat. Power Select & Color Select. 40/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 220/30/40W2,500/3,500/4,500 lm3500K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED40PS-22-8CSA-VDIM /G3/TAA2x2 LED Panel feat. Power Select & Color Select. 40/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 3. TAA Compliant20/30/40W2,500/3,750/5,000 lm3500K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED40PS-22B-8CSA-VDIM /FC22x2 LED Panel feat. Power Select & Color Select with Embedded Smartloop PIR Sensor. 40/30/20W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design.20/30/40W2,500/3,500/4,500 lm3500K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED45PS-24E-8CSA-VDIM /FC52x4 LED Panel | Power Select & Color Select | Embedded Smartloop PIR Sensor | 45/35/30W | 3500/4000/5000K | 120-277V Input | 0-10V Dimming | Backlit Design | Seies E Construction30/35/45W3,420/3,920/4,950 lm3500K/4000K/5000K120–277V—White—Call for pricing
KT-BPLED50PS-24-8CSA-VDIM /G22x4 LED Panel feat. Power Select & Color Select. 50/40/30W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 230/40/50W4,200/5,200/6,200 lm3500K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED50PS-24-8CSA-VDIM /G3/TAA2x4 LED Panel feat. Power Select & Color Select. 50/40/30W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design. Gen 3. TAA Compliant30/40/50W3,750/5,000/6,250 lm3500K/4000K/5000K120–277V0-10VWhiteListedCall for pricing
KT-BPLED60PS-24-8CSA-VDIM /G32x4 LED Panel feat. Power Select & Color Select. 60/50/40W, 120-277V Input, 3500/4000/5000K, 0-10V Dimming, Backlit Design, Gen 3.40/50/60W5,400/6,700/8,000 lm3500K/4000K/5000K120–277V0-10VWhitePremiumCall for pricing
