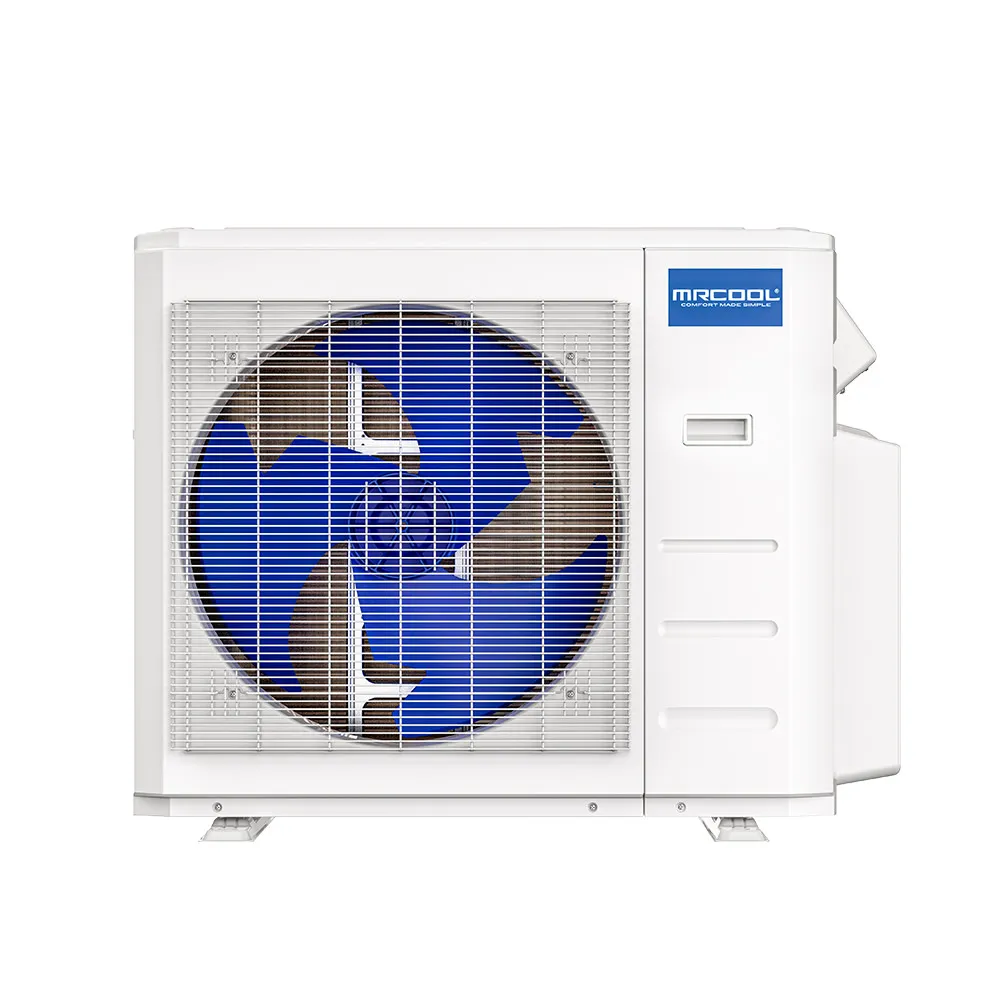

MRCOOL DIY 4th Gen Multi-Zone 3-Zone Condenser
DIY-MULTI3-27HP230C
27,000 BTU · up to 3 zones · 22 SEER2 · 208/230V · R-410A
Part of DIY 4th Gen – Multi-Zone Condensers
- Cooling capacity
- 27,000 BTU2.25 tons
- Zones
- Up to 3
- Efficiency
- 22 SEER2
- Power
- 208/230V40A breaker
- Refrigerant
- R-410A
- Install
- DIYPre-charged, no vacuum
$1,700.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. This is a DIY system: the pre-charged line set connects without a vacuum pump or gauges.
Build a multi-zone system with this condenser →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Introducing the 4th Generation MRCOOL® DIY® 27K BTU 3-Zone Ductless Heat Pump Condenser which is one of the most capable heat pumps on the market. When this 3-zone condenser is matched with select MRCOOL® air handlers, it can produce a highly effective 22 SEER efficiency rating. It can also provide heating performance all the way down to -13°F. With its Gold Fin® condenser coating, it is sure to withstand the seasons, enduring especially well in coastal or humid climates. The cornerstone of this heat pump is its ability to be a Do-It-Yourself project. When used with MRCOOL’s® patented Pre-Charged Quick Connect® Line Set, the refrigerant piping can be connected with simple hand tools and does not require the services of a certified technician. It comes pre-charged with the correct amount of R-410A refrigerant so, once installed, it does not require vacuuming. Built for reliability, the MRCOOL® DIY® 27K system is protected by a 7-year compressor warranty and 5-year parts coverage, with MRCOOL® Care Program eligibility.
- Up to 22 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty
- Line sizes 1/4”, 1/2” & 3/8”, 5/8”
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | DIY 4th Gen |
| Cooling capacity | 27,000 BTU |
| Heating capacity | 27,000 BTU |
| Nominal size | 2.25 tons |
| Zones | Up to 3 |
| SEER2 | 22 |
| EER2 | 12 |
| Airflow | 2129.41 CFM |
| Sound level | 61 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 26 A |
| Max. breaker (MOP) | 40 A |
| Inverter compressor | Yes |
| Wi-Fi / app control | Yes |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 91.71 oz |
| Max. line length | 172 ft |
| Liquid line | 1/4" |
| Suction line | 1/2" |
| Installation | DIY — pre-charged quick-connect line set, no vacuum pump needed |
| Dimensions (in) | 37.24 W × 16.14 D × 31.89 H |
|---|---|
| Weight | 139.99 lb |
| Shipping weight | 157 lb |
| Color | White |
| Compressor warranty | 7 years |
|---|---|
| Parts warranty | 5 years |
| UPC | 810063869502 |
