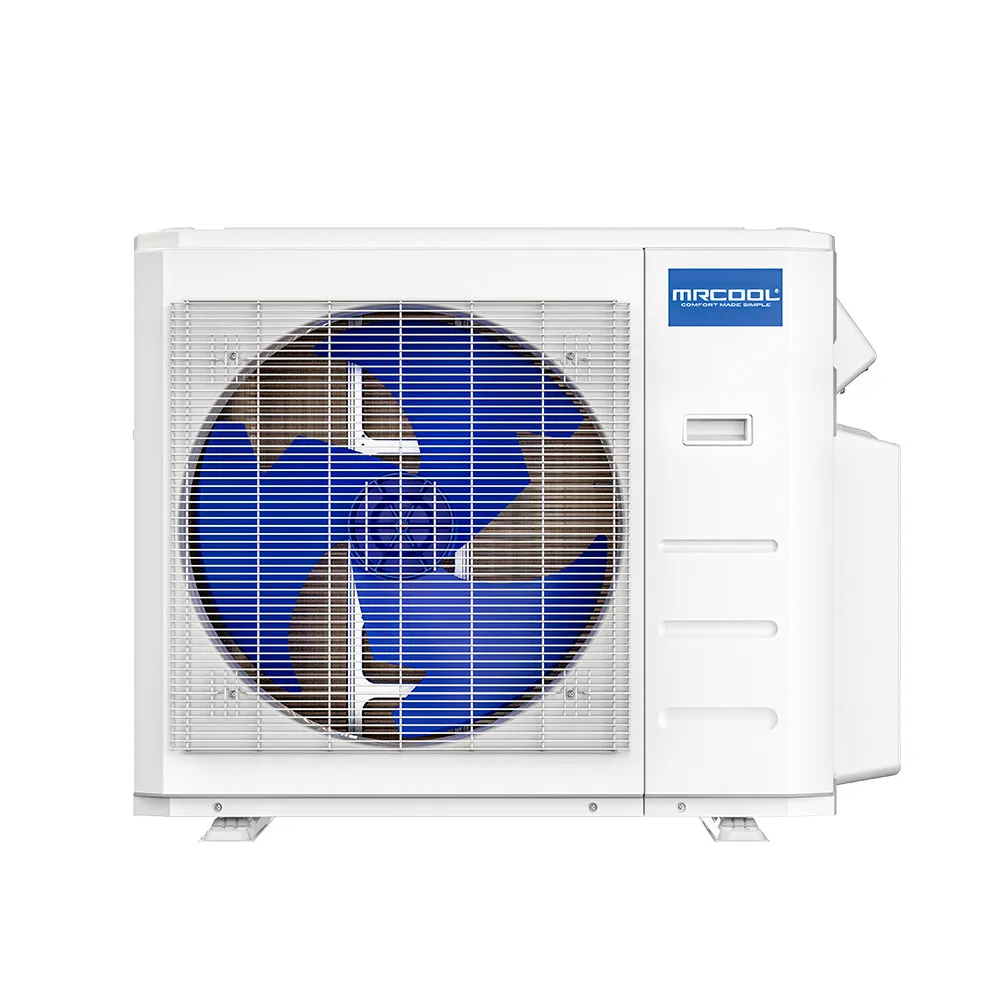

MRCOOL DIY 4th Gen Multi-Zone 4-Zone Condenser
DIY-MULTI4-36HP230C
36,000 BTU · up to 4 zones · 21.5 SEER2 · 208/230V · R-410A
Part of DIY 4th Gen – Multi-Zone Condensers
- Cooling capacity
- 36,000 BTU3 tons
- Zones
- Up to 4
- Efficiency
- 21.5 SEER2
- Power
- 208/230V45A breaker
- Refrigerant
- R-410A
- Install
- DIYPre-charged, no vacuum
$2,107.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. This is a DIY system: the pre-charged line set connects without a vacuum pump or gauges.
Build a multi-zone system with this condenser →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
The 4th Generation MRCOOL® DIY® 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and when paired with select MRCOOL® air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop down to -13°F. It features a Gold Fin® condenser coating that allows it to withstand the elements and resist corrosion. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with the MRCOOL® Pre-Charged Quick Connect® Line Sets. These line sets are pre-charged with R-410A refrigerant and feature quick connect connectors, which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require refrigerant handling or brazing once installation is complete. Warranty coverage includes 7 years on the compressor and 5 years on parts, along with eligibility for the MRCOOL® Care. The 4th Generation MRCOOL® DIY® 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty
- Line sizes 1/4”, 1/2” & 3/8”, 5/8”
- Multi-Zone Condenser includes adapter for the 24K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | DIY 4th Gen |
| Cooling capacity | 36,000 BTU |
| Heating capacity | 36,000 BTU |
| Nominal size | 3 tons |
| Zones | Up to 4 |
| SEER2 | 21.5 |
| EER2 | 10.5 |
| Airflow | 2147.06 CFM |
| Sound level | 65 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 27 A |
| Max. breaker (MOP) | 45 A |
| Inverter compressor | Yes |
| Wi-Fi / app control | Yes |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 134.04 oz |
| Max. line length | 221 ft |
| Liquid line | 1/4 (3/8 w/ adapter)" |
| Suction line | 1/2 (5/8 w/ adapter)" |
| Installation | DIY — pre-charged quick-connect line set, no vacuum pump needed |
| Dimensions (in) | 37.24 W × 16.14 D × 31.89 H |
|---|---|
| Weight | 170.42 lb |
| Shipping weight | 188 lb |
| Color | White |
| Compressor warranty | 7 years |
|---|---|
| Parts warranty | 5 years |
| UPC | 810063869519 |
