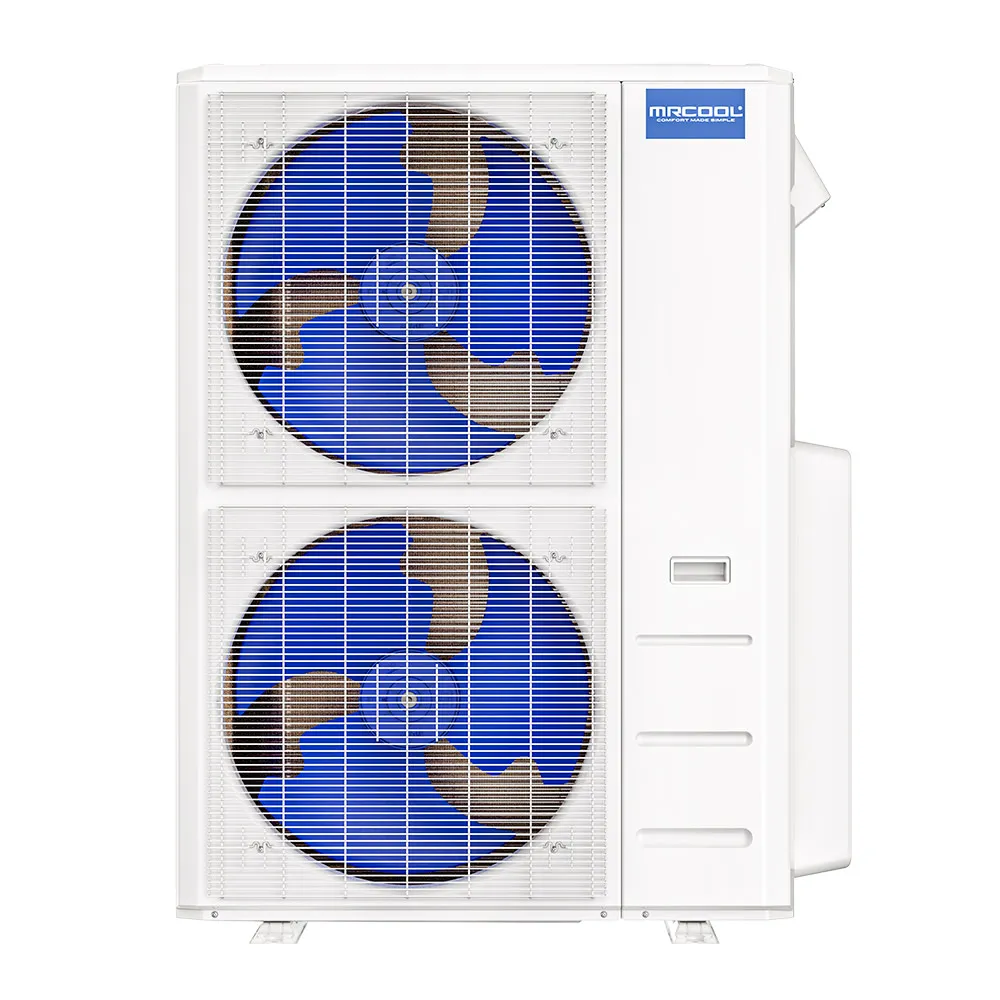

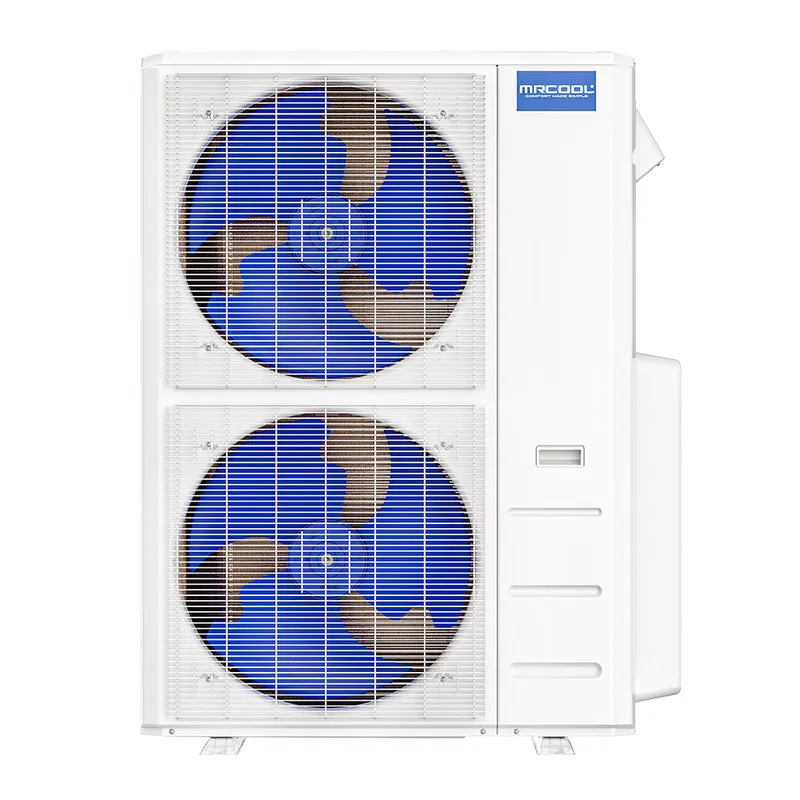

MRCOOL DIY 4th Gen Multi-Zone 5-Zone Condenser
DIY-MULTI5-48HP230C
48,000 BTU · up to 5 zones · 20.5 SEER2 · 208/230V · R-410A
Part of DIY 4th Gen – Multi-Zone Condensers
- Cooling capacity
- 48,000 BTU4 tons
- Zones
- Up to 5
- Efficiency
- 20.5 SEER2
- Power
- 208/230V60A breaker
- Refrigerant
- R-410A
- Install
- DIYPre-charged, no vacuum
$2,814.00 each
Not sure about the size? Use the BTU sizing calculator, or call us and we'll size it with you. This is a DIY system: the pre-charged line set connects without a vacuum pump or gauges.
Build a multi-zone system with this condenser →
Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.
About this product
Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY® 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MRCOOL® air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin® condenser coating. Even with all of these features and quality of performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. Designed to work with MRCOOL® Pre-Charged Quick Connect® Line Sets, which arrive factory-charged with R-410A refrigerant, installation is simple using basic hand tools. Because the system is pre-charged, no vacuuming is required after connection. The MRCOOL® DIY® 6K system includes dependable warranty coverage with a 7-year compressor warranty and 5-year parts protection, along with eligibility for the MRCOOL® Care Program. Let the MRCOOL® 4th Generation DIY® 48K BTU 5-Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Standard 7-year compressor/5-year parts warranty
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Line sizes 1/4”, 1/2” & 3/8”, 5/8”
- Multi-Zone Condenser includes adapter for the 24K and 36K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns
Documents & manuals
Specifications
| Type | Condenser (outdoor unit) — heat pump (heats & cools) |
|---|---|
| Series | DIY 4th Gen |
| Cooling capacity | 48,000 BTU |
| Heating capacity | 48,000 BTU |
| Nominal size | 4 tons |
| Zones | Up to 5 |
| SEER2 | 20.5 |
| EER2 | 11 |
| Airflow | 4500 CFM |
| Sound level | 61.5 dBA |
| Voltage | 208/230V |
|---|---|
| Phase | 1-phase |
| Min. circuit ampacity (MCA) | 40 A |
| Max. breaker (MOP) | 60 A |
| Inverter compressor | Yes |
| Wi-Fi / app control | Yes |
| Refrigerant | R-410A |
|---|---|
| Factory charge | 162 oz |
| Max. line length | 221 ft |
| Liquid line | 1/4 (3/8 w/ adapter)" |
| Suction line | 1/2 (5/8 w/ adapter)" |
| Installation | DIY — pre-charged quick-connect line set, no vacuum pump needed |
| Dimensions (in) | 37.48 W × 16.34 D × 52.48 H |
|---|---|
| Weight | 222.89 lb |
| Shipping weight | 254 lb |
| Color | White |
| Compressor warranty | 7 years |
|---|---|
| Parts warranty | 5 years |
| UPC | 810063869526 |
