Keystone Technologies

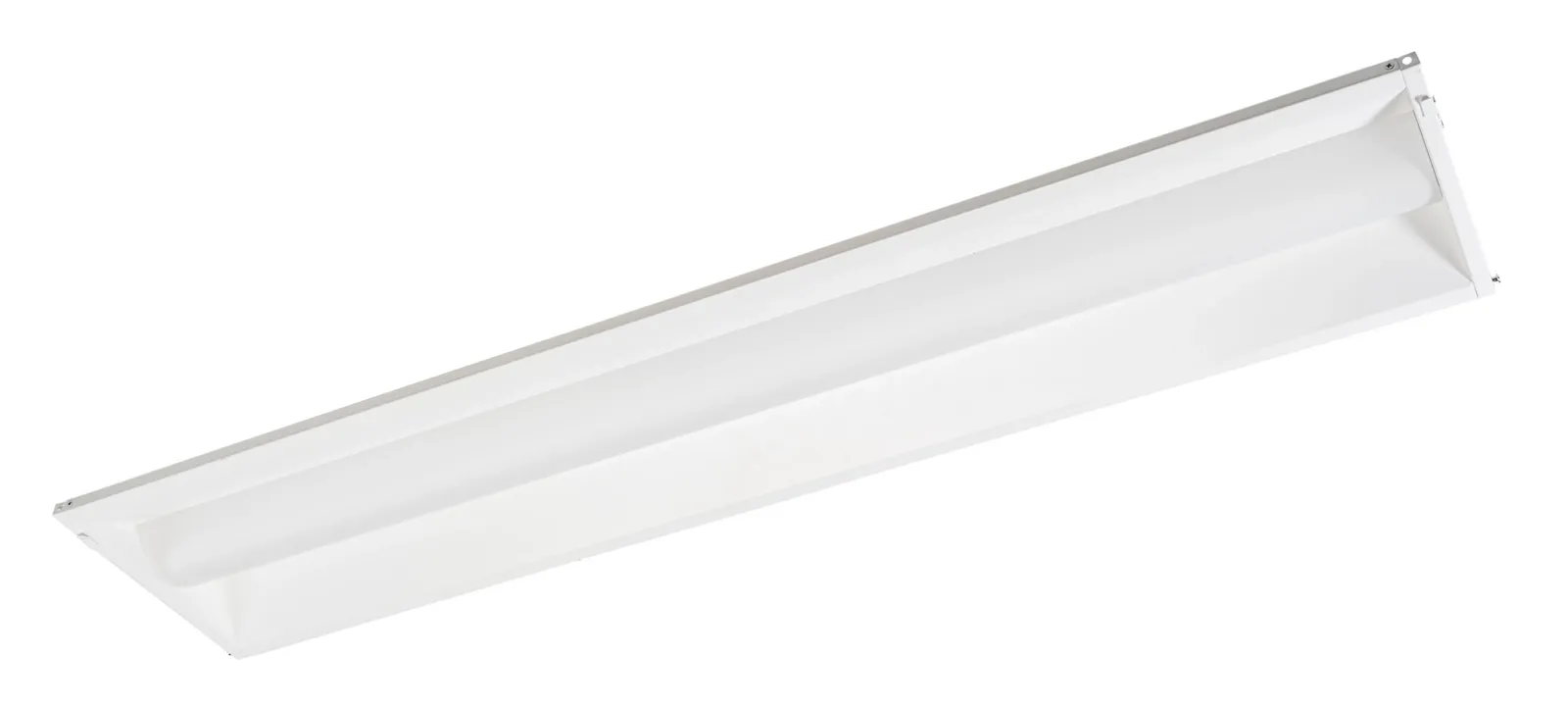

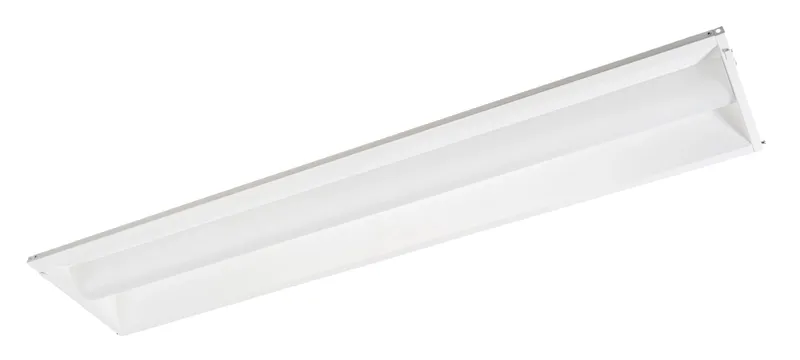

Whitebox LED Retrofit Kits – Troffer Retrofit – Center Basket Troffer
A center basket LED troffer retrofit kit that includes everything -- housings with pre-wired drivers, installation brackets, lenses, hardware, and instructions – to upgrade in minutes.
10 part numbers · Indoor
- Wattage
- 15–45W
- Lumens
- 1,950–5,850 lm
- Color temperature
- 3500K, 4000K, 5000K
- Voltage
- 120–277V
- Dimming
- 0-10V
- CRI
- 80+
- Finish
- White
- DLC
- DLC Listed
- Warranty
- 5–10 years
Overview
A center basket LED troffer retrofit kit that includes everything -- housings with pre-wired drivers, installation brackets, lenses, hardware, and instructions – to upgrade in minutes.
Part numbers & ordering
| Part # | Description | Watts | Lumens | CCT | Voltage | Dimming | Finish | DLC | Price | Add to cart | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | TRK-LED-22B-24PS-8CSA | 2x2 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 24/18/15W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. White Box Program. | 15/18/24W | 2,025/2,375/3,025 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | TRK-LED-22DC-24PS-8CSA /CR /2PK | 2x2 LED Center Basket Doorframe Retrofit Kit | Power Select 24/18/15W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 15/18/24W | 1,950/2,340/3,150 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | TRK-LED-24B-30PS-8CSA | 2x4 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 30/25/20W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. White Box Program. | 20/25/30W | 2,750/3,350/3,850 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | TRK-LED-24DC-30PS-8CSA /CR /2PK | 2x4 LED Center Basket Doorframe Retrofit Kit | Power Select 30/25/20W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 20/25/30W | 2,600/3,250/3,900 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | TRK-LED-14DC-35PS-8CSA /CR /2PK | 1x4 LED Center Basket Doorframe Retrofit Kit | Power Select 35/30/24W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 24/30/35W | 3,120/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | Listed | Call for pricing | ||
| TRK-LED-22B-35PS-8CSA | 2x2 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 35/30/24W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. White Box Program. | 24/30/35W | 3,150/3,850/4,400 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
| TRK-LED-22DC-35PS-8CSA /CR /2PK | 2x2 LED Center Basket Doorframe Retrofit Kit | Power Select 35/30/24W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 24/30/35W | 3,150/3,900/4,550 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | TRK-LED-24DC-45PS-8CSA /CR /2PK | 2x4 LED Center Basket Doorframe Retrofit Kit | Power Select 45/38/30W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program | 30/38/45W | 3,900/4,950/5,850 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | ||
 | TRK-LED-14B-35PS-8CSADISC | 1x4 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 35/30/24W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. White Box Program. | 24/30/35W | 3,150/3,850/4,400 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | — | |
| TRK-LED-24B-45PS-8CSADISC | 2x4 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 45/38/30W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. White Box Program. | 30/38/45W | 4,150/5,000/5,800 lm | 3500K/4000K/5000K | 120–277V | 0-10V | White | — | Call for pricing | — |
