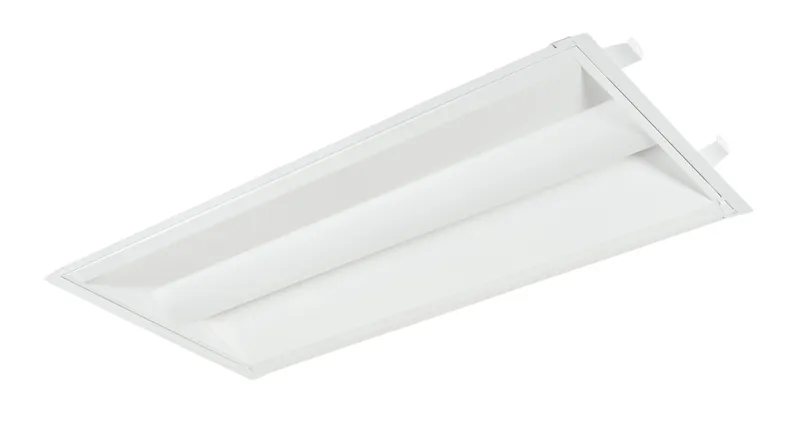

2x4 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 30/25/20W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. White Box Program.

1 / 10

Keystone Technologies

2x4 LED Center Basket Doorframe Retrofit feat. Power Select & Color Select, 30/25/20W, 120-277V Input, 3500/4000/5000K, Frosted Lens, 0-10V Dimming. White Box Program.

TRK-LED-24B-30PS-8CSA

Final production — limited stock

20/25/30W · 2,750/3,350/3,850 lm · 3500K/4000K/5000K · 120–277V

Part of Whitebox LED Retrofit Kits – Troffer Retrofit – Center Basket Troffer

Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.

Request a QuoteSpec sheet

Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.

Specifications

Electrical
Wattage20/25/30W (selectable)
Voltage120–277V
Dimming0-10V
Photometric
Lumens2,750/3,350/3,850 lm
Efficacy128.3 lm/W
Color temperature3500K/4000K/5000K (selectable)
CRI80+
Physical
MountingRetrofit
Size2x4
FinishWhite
LensCenter Basket
Lifetime, warranty & ordering
Rated life50,000 hrs
Warranty10 years
UPC843654135335
Pack quantity1
