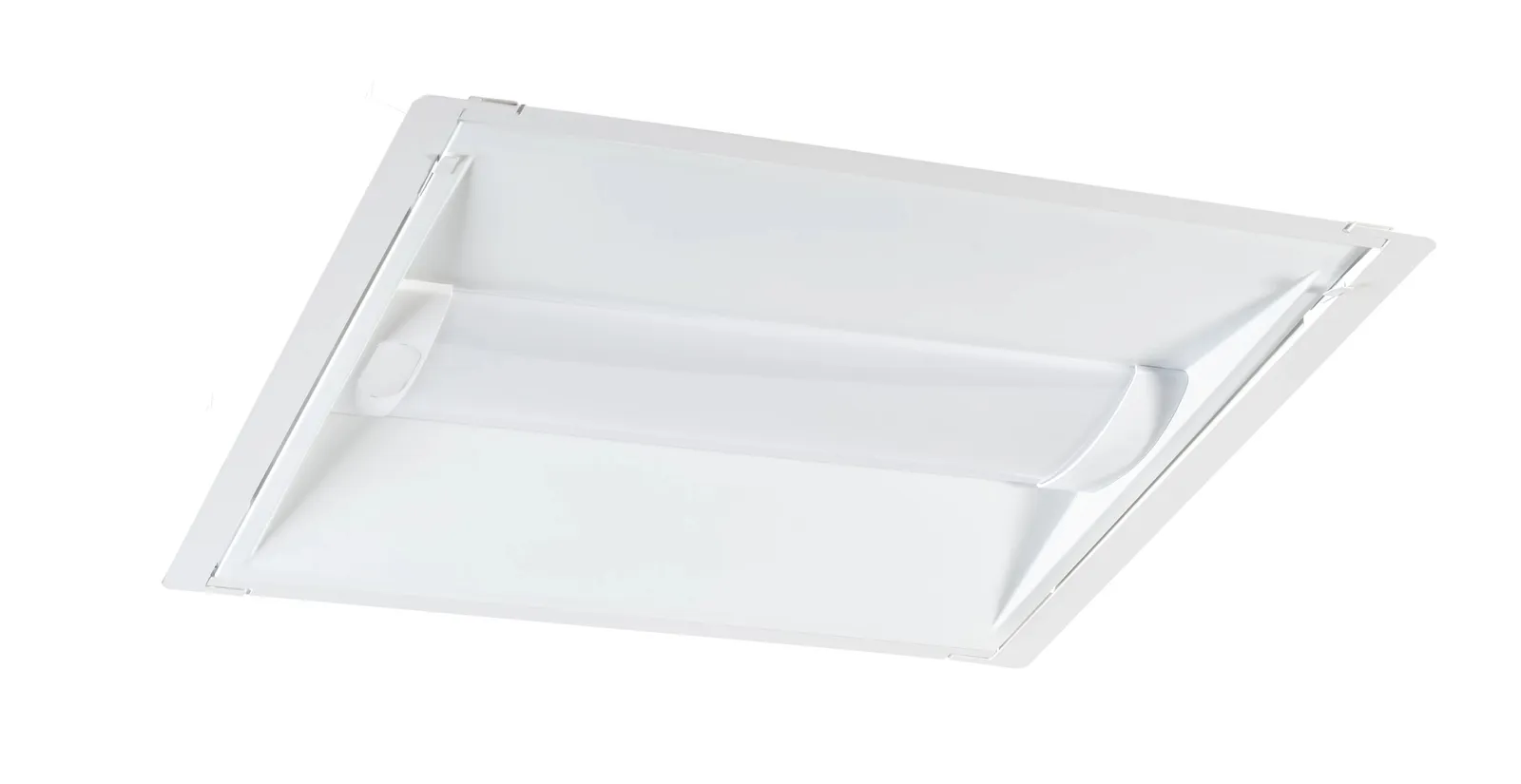

2x2 LED Center Basket Doorframe Retrofit Kit | Power Select 24/18/15W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program

1 / 10

Keystone Technologies

2x2 LED Center Basket Doorframe Retrofit Kit | Power Select 24/18/15W | Color Select 3500/4000/5000K | 120-277V Input | Frosted Curved Lens | 0-10V Dimming |12V Aux + Dim to off | KO for KTSL-FC5 | White Box Program

TRK-LED-22DC-24PS-8CSA /CR /2PK

15/18/24W · 1,950/2,340/3,150 lm · 3500K/4000K/5000K · 120–277V

Part of Whitebox LED Retrofit Kits – Troffer Retrofit – Center Basket Troffer

Call for pricing Add it to your cart and send us a quote request — or call 678-467-5515.

Request a QuoteSpec sheet

Distributor pricing and stock: call 678-467-5515 or email sales@discountkings.net.

Specifications

Electrical
Wattage15/18/24W (selectable)
Voltage120–277V
Dimming0-10V
Photometric
Lumens1,950/2,340/3,150 lm
Efficacy131.3 lm/W
Color temperature3500K/4000K/5000K (selectable)
CRI80+
Physical
MountingRetrofit
Size2x2
FinishWhite
LensCenter Basket
Lifetime, warranty & ordering
Rated life50,000 hrs
Warranty5 years
UPC843654173344
Pack quantity2
